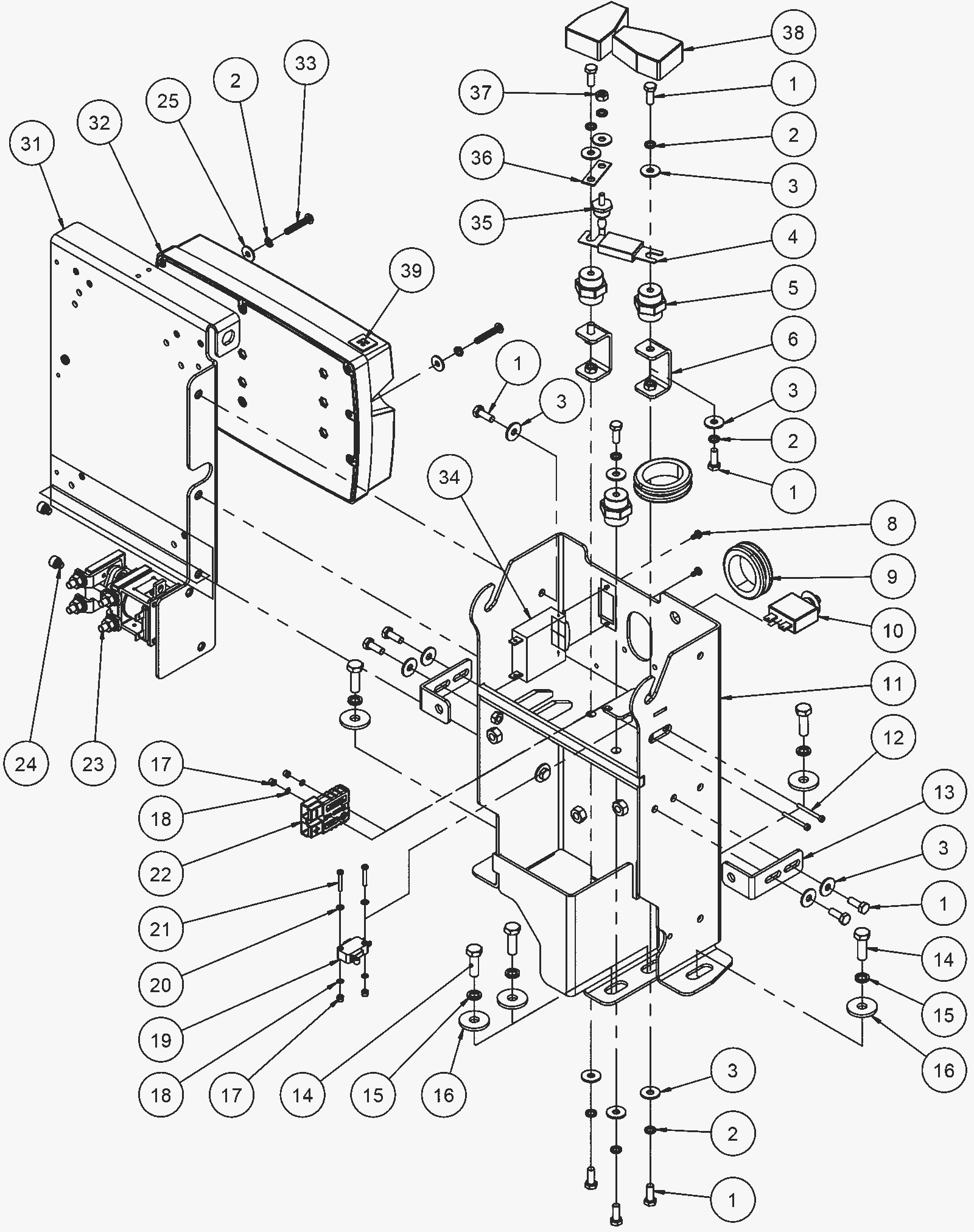

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
12 |
|
|
2 |
999-1117
|
Washer M6 split lock stainless steel |
18 |
|
|
3 |
999-1803
|
Washer M6 flat fender stainless steel |
15 |
|
|
4 |
278-0404
|
150amp fuse |
1 |
|
|
5 |
278-0405
|
Insulator |
3 |
|
|
6 |
278-0406
|
Insulator bracket |
2 |
|
|
8 |
288-0129
|
Screw 6.32 x 5.16 pan head with lock washer |
4 |
|
|
9 |
278-0327
|
Rubber grommet |
2 |
|
|
10 |
278-0988
|
2amp circuit breaker |
1 |
|
|
11 |
278-0582
|
Weldment |
1 |
|
|
12 |
999-1520
|
Screw M3-.5 x 30mm pan head phillips zinc plated |
2 |
|
|
13 |
278-0409
|
Bracket |
2 |
|
|
14 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
5 |
|
|
15 |
999-0674
|
Washer M8 split lock plain finish |
5 |
|
|
16 |
999-6695
|
Washer M8 fender stainless steel |
5 |
|
|
17 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
4 |
|
|
18 |
278-0089
|
Washer M3 tooth |
4 |
|
|
19 |
278-0410
|
Micro switch |
1 |
|
|
20 |
999-1521
|
Washer M3 flat stainless steel |
2 |
|
|
21 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
22 |
288-0029
|
6AWG SB50 red cable assembly |
1 |
|
|
23 |
288-0128
|
Double master contactor |
1 |
|
|
24 |
999-9157
|
Screw M6-1.0 x 8mm socket cap stainless steel |
2 |
|
|
25 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
31 |
288-0127
|
Battery charger bracket |
1 |
|
|
32a |
288-0126
|
ICE kinetek (wet/agm) |
1 |
(AGM batteries) |
|
32b |
288-9999
|
ICE Kinetek (Roy Pow lithium) |
1 |
(Roy Pow lithium batteries) |
|
33 |
999-9158
|
Screw M5 x 30mm button head stainless steel |
2 |
|
|
34 |
288-0007
|
20amp circuit breaker |
1 |
|
|
35 |
288-0124
|
Diode with cable (VCU harness) |
1 |
|
|
36 |
288-0123
|
Bus bar |
1 |
|
|
37 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
38 |
288-0031
|
Terminal covers (black) |
2 |
|
|
39 |
288-0032
|
Adhesive back cable tie mount |
1 |
|
|
