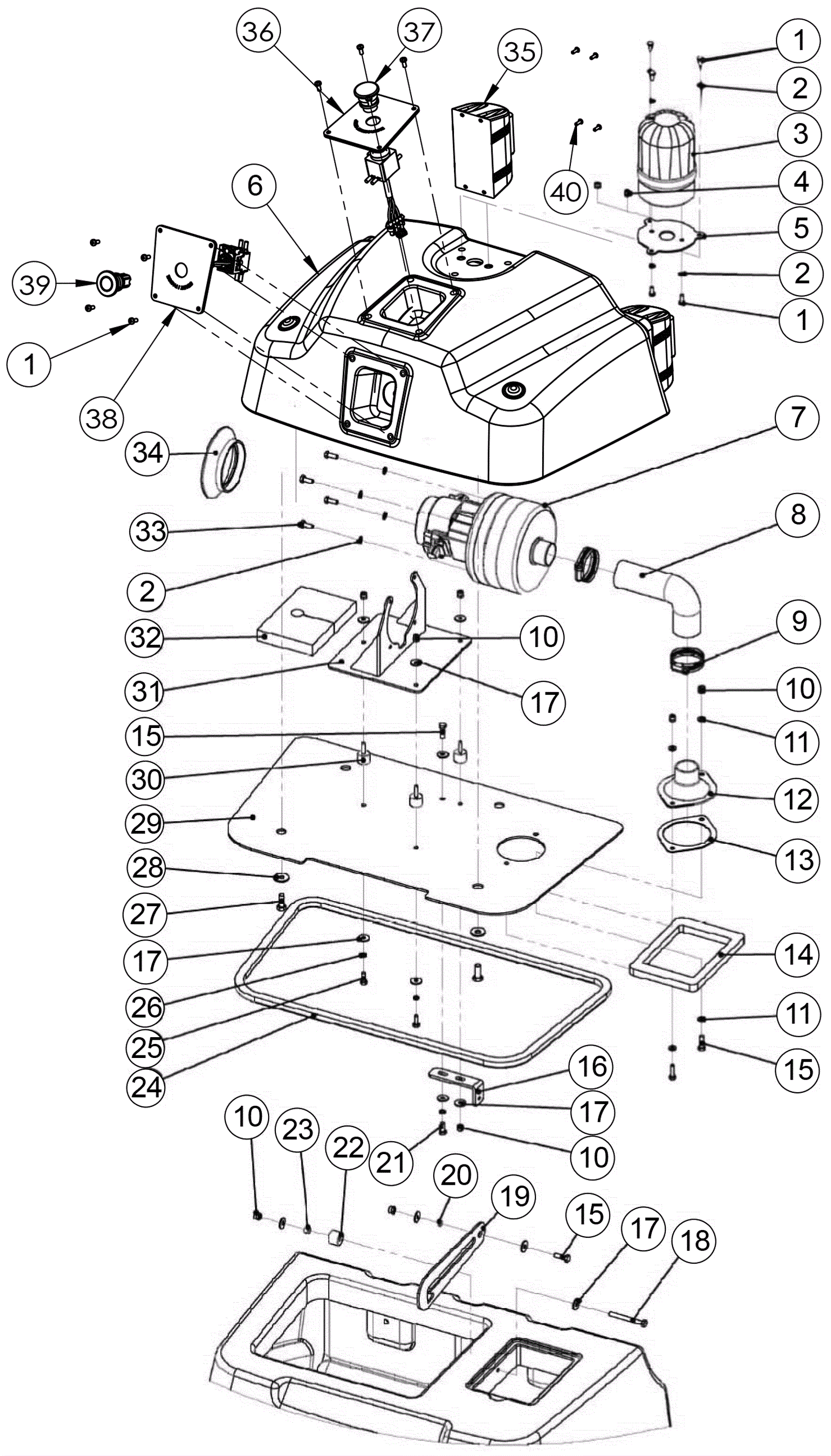

Recovery Tank Cover Assembly

#PartDescription ReqNotesAvailability
1 288-0133 Screw M5 x 12 pan head (black) 13
2 999-9100 Washer M5 flat stainless steel 9
3 278-0643 Caution light kit 1
4 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
5 278-0372 Caution light plate 1
6 288-0132 Recovery tank cover 1
7a 278-0526 24V 3 stage vacuum motor kit 1 (OEM)
7b 991-1253 24V 3 stage vacuum motor peripheral w/ intake 1 (NON-OEM)
7c 991-4036 Male packard plug kit 1 (NON-OEM)
8 278-0375 Vacuum exhaust hose 1
9 278-0025 Hose clamp 2
10 999-0497 Nut M6-1 nylon insert lock stainless steel 8
11 999-6714 Washer M6 x 12mm flat stainless steel 4
12 278-0376 Vacuum hose adapter 1
13 278-0377 Gasket adapter 1
14 278-0378 Dust filter gasket 1
15 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 4
16 278-0379 Bracket 1
17 999-1803 Washer M6 flat fender stainless steel 12
18 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 1
19 278-0380 Recovery tank cover support 1
20 278-0381 Sleeve 1
21 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
22 278-0382 Nylon spacer 1
23 278-0383 Sleeve 1
24 278-0384 Sealing strip 1
25 999-1908 Screw M6-1 x 10mm hex head stainless steel 2
26 999-1117 Washer M6 split lock stainless steel 3
27 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
28 999-6695 Washer M8 fender stainless steel 4
29 278-0385 Vacuum motor mounting plate 1
30 278-0386 Isolater 3
31 278-0387 Vacuum motor bracket 1
32 278-0388 Insulation 1
33 278-0389 Screw 4
34 278-0390 Fan seal 1
35 288-0008 Safety belt 2
36 278-1830 Emergency stop plate with decal and gasket 1
37 278-0402 Emergency stop switch 1
38 288-0131 Start-stop plate with gasket 1
39 288-0054 Start-pause button assembly 1
40 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 8
N/S 278-1190 Terminal block 1 (vac motor wiring harness)
N/S 278-1191 Female terminal pin 1 (vac motor wiring harness)
N/S 278-1192 Terminal 1 (vac motor wiring harness)
N/S 278-1193 Connector clip 1 (vac motor wiring harness)
N/S 278-1194 Grommet (blue) 1 (vac motor wiring harness)
N/S 278-1195 Terminal 1 (vac motor wiring harness)
