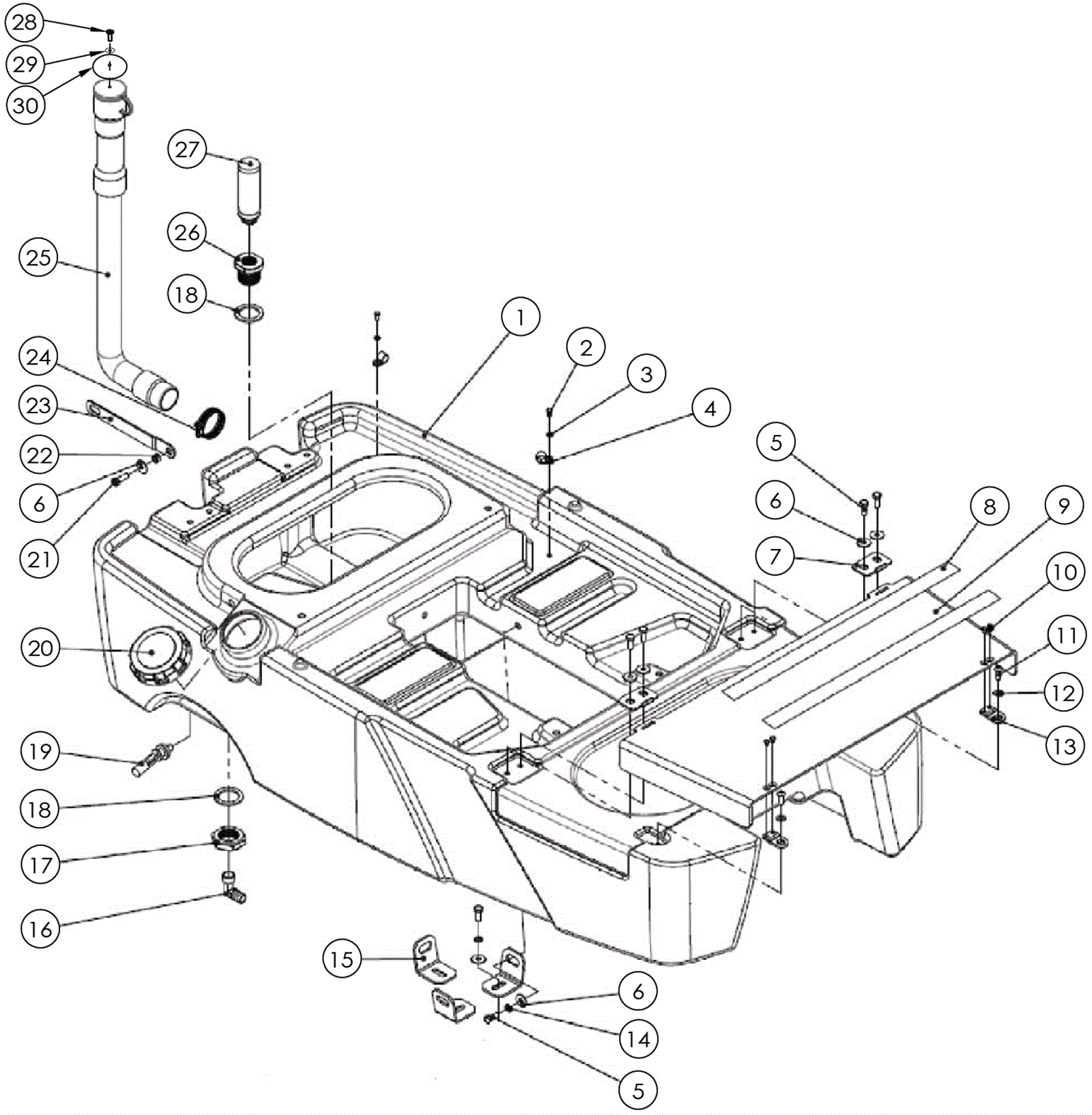

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
278-0339
|
Solution tank |
1 |
|
|
2 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
2 |
|
|
3 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
4 |
278-1827
|
Nylon clamp |
2 |
|
|
5 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
12 |
|
|
6 |
999-6695
|
Washer M8 fender stainless steel |
13 |
|
|
7 |
278-0340
|
Plate |
2 |
|
|
8 |
278-0341
|
Non-slip mat |
2 |
|
|
9 |
278-0342
|
Foot rest plate |
1 |
|
|
10 |
278-0343
|
Screw M5 |
4 |
|
|
11 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
12 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
13 |
278-0344
|
Junction plate |
2 |
|
|
14 |
999-0674
|
Washer M8 split lock plain finish |
8 |
|
|
15 |
278-0345
|
Solution tank bracket |
3 |
|
|
16 |
278-0346
|
Elbow |
1 |
|
|
17 |
278-0347
|
Nut |
1 |
|
|
18 |
278-0348
|
Seal |
2 |
|
|
19 |
278-0570
|
Solution level sensor kit |
1 |
|
|
20 |
278-0350
|
Solution tank cap |
1 |
|
|
21 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
22 |
278-0351
|
Sleeve |
1 |
|
|
23 |
278-0352
|
Recovery tank arm support |
1 |
|
|
24 |
278-0025
|
Hose clamp |
1 |
|
|
25 |
288-0155
|
Hose (clear) |
1 |
|
|
26 |
278-0354
|
Strainer adapter assembly |
1 |
|
|
27 |
278-0355
|
Strainer assembly |
1 |
|
|
28 |
278-1280
|
Screw 4 x 10 pan head self tapping |
1 |
|
|
29 |
278-1909
|
Washer M5x15x10 stainless steel |
1 |
|
|
30 |
288-0018
|
Clean water drain cap decal (OBSOLETE) |
1 |
|
|
