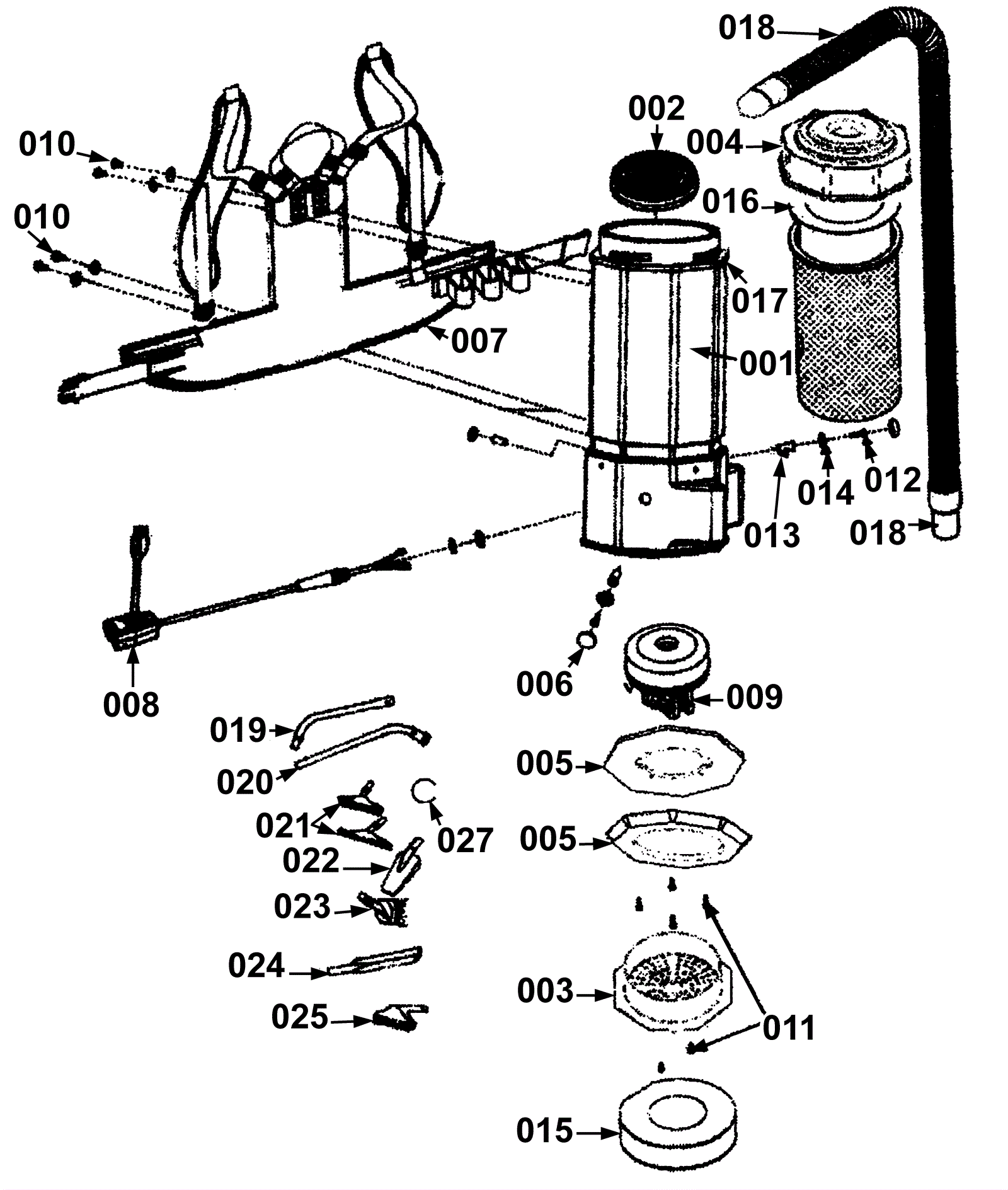

PERFECT PB1001 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001a 287-0001 Body 10 qt $166.50 1 usually ships 1-5 days
001b 287-0002 Body 6 qt $166.50 1 usually ships 1-5 days
002 287-0003 Bottom motor cover (OBSOLETE) $1.92 1 usually ships 11-15 days
003 287-0004 Motor mount $28.75 1 usually ships 11-15 days
004 287-0005 Lid $23.87 1 ships same day
005 287-0006 Motor platform (with gasket) $44.29 1 usually ships 11-15 days
006 287-0008 Decorate cap $3.33 1 usually ships 1-5 days
007 287-0009 Complete harness $55.39 1 usually ships 11-15 days
008 287-0010 Cord and switch box assembly $41.42 1 usually ships 11-15 days
009 287-0011 Motor $94.36 1 usually ships 11-15 days
010 287-0012 Harness screw $2.22 4 usually ships 11-15 days
011 287-0013 Motor screw $2.22 2 usually ships 1-5 days
012 287-0014 Nut screw $2.22 1 usually ships 1-5 days
013 287-0015 Nut $2.51 1 usually ships 11-15 days
014 287-0016 Washer $2.22 1 usually ships 1-5 days
015 287-0017 Sound muffler $29.97 1 usually ships 11-15 days
016a 287-0018 Paper dust bag (6 qt) (pkg of 10) $12.21 1 (6 qt) usually ships 11-15 days
016b 991-9003 Paper vacuum bags (pkg of 10) (VP10 & SuperCoach) $10.42 1 (10 qt) ships same day
016c 287-0020 Hepa filter (6 qt) (pkg of 6) $17.65 1 usually ships 11-15 days
016d 287-0021 Hepa filter (10 qt) (pkg of 9) $18.25 1 usually ships 11-15 days
017a 287-0022 Cloth bag (6 qt) $16.65 1 usually ships 11-15 days
017b 287-0023 Cloth bag (10 qt) $19.99 1 usually ships 11-15 days
018a 287-0024 Hose assembly with swivel cuff $30.84 1 usually ships 11-15 days
018b 287-0025 Swivel hose cuff 1 1/2 inch $4.33 2 usually ships 11-15 days
019 287-0026 Tube assembly aluminum (2 piece) $76.55 1 usually ships 12-17 days
020 287-0027 Floor brush $22.09 1 usually ships 11-15 days
021 228-8009 Carpet tool $17.66 1 usually ships 12-20 days
022 287-0028 Paddle tool $13.21 1 usually ships 11-15 days
023 287-0029 Dusting brush $7.77 1 usually ships 11-15 days
024 287-0030 Crevice tool $9.99 1 usually ships 11-15 days
025 287-0031 Upholstery tool $9.99 1 usually ships 1-5 days
027 287-0033 Locking ring $2.31 1 usually ships 11-15 days
N/S 199-0016 14/3 18 inch pigtail cord $24.35 1 ships same day
