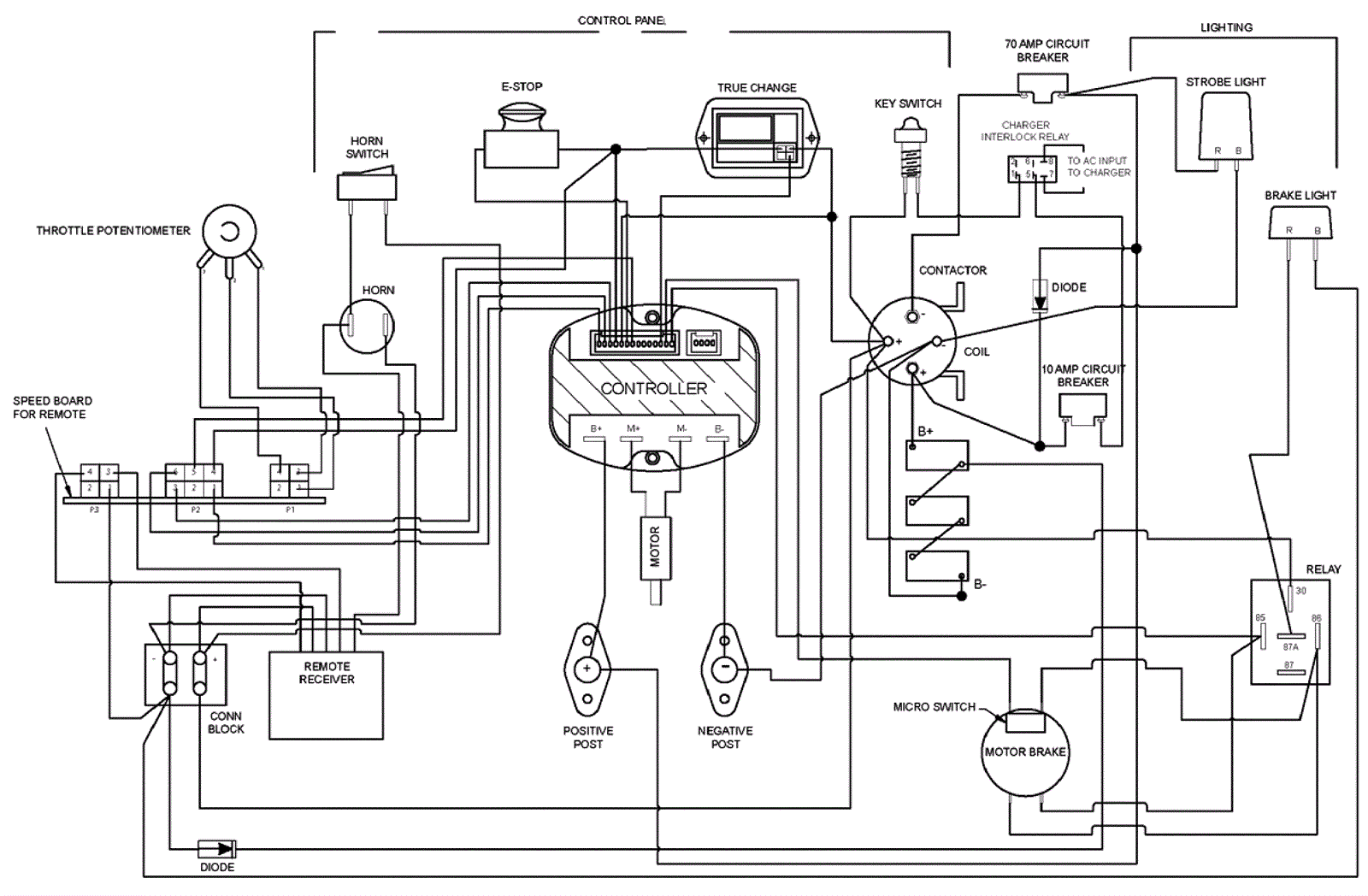

CARTMANAGER XD Wiring Diagram (Before Version 1.7)

#PartDescriptionPriceReqNotesAvailability
1 179-0023 8 inch swivel caster wheel $126.94 ships same day
2 179-2248 Light bulb (for orange globe) (OBSOLETE) $41.98 usually ships 3-12 days
3 179-2281 Strobe LED light $160.52 ships same day
4 286-0090 Strobe light post assembly $309.65 ships same day
6 286-0045 80amp fuse $49.45 ships same day
7 286-0039 5amp fuse $1.40 ships same day
8 286-0029 2amp fuse $1.40 ships same day
9 286-0004 110V 10amp battery charger $1,199.48 ships same day
10 179-0013 Key assembly $26.27 ships same day
11 179-0064 Key (pkg of 2) $16.23 ships same day
12 162-0011 12V 105Ah wet battery (SNSR) $291.50 ships same day
13 286-0046 140amp motor controller $988.53 ships same day
14 286-0008 36V motor $686.37 ships same day
15 286-0031 Transaxle $1,962.25 ships same day
16 286-0036 Brake, CIM, XDW, XD $298.91 usually ships 3-12 days
17 286-0010 Horn $26.64 ships same day
18 286-0049 5/8-11 spring plunger $23.06 ships same day
19 286-0020 Remote $389.04 ships same day
20 286-0038 Digital throttle $323.15 ships same day
22 179-0006 Snow tire and rim assembly $171.34 ships same day
23 286-0051 1/4 turn slotted latch arm $31.46 ships same day
24 286-0052 Hood handle $7.85 ships same day
25 179-0053 Battery strap $6.26 ships same day
26 286-0053 Light pole plug $0.97 usually ships 3-12 days
27 286-0080 Lug nut $10.29 ships same day
28 286-0015 25 foot shag strap $24.97 ships same day
