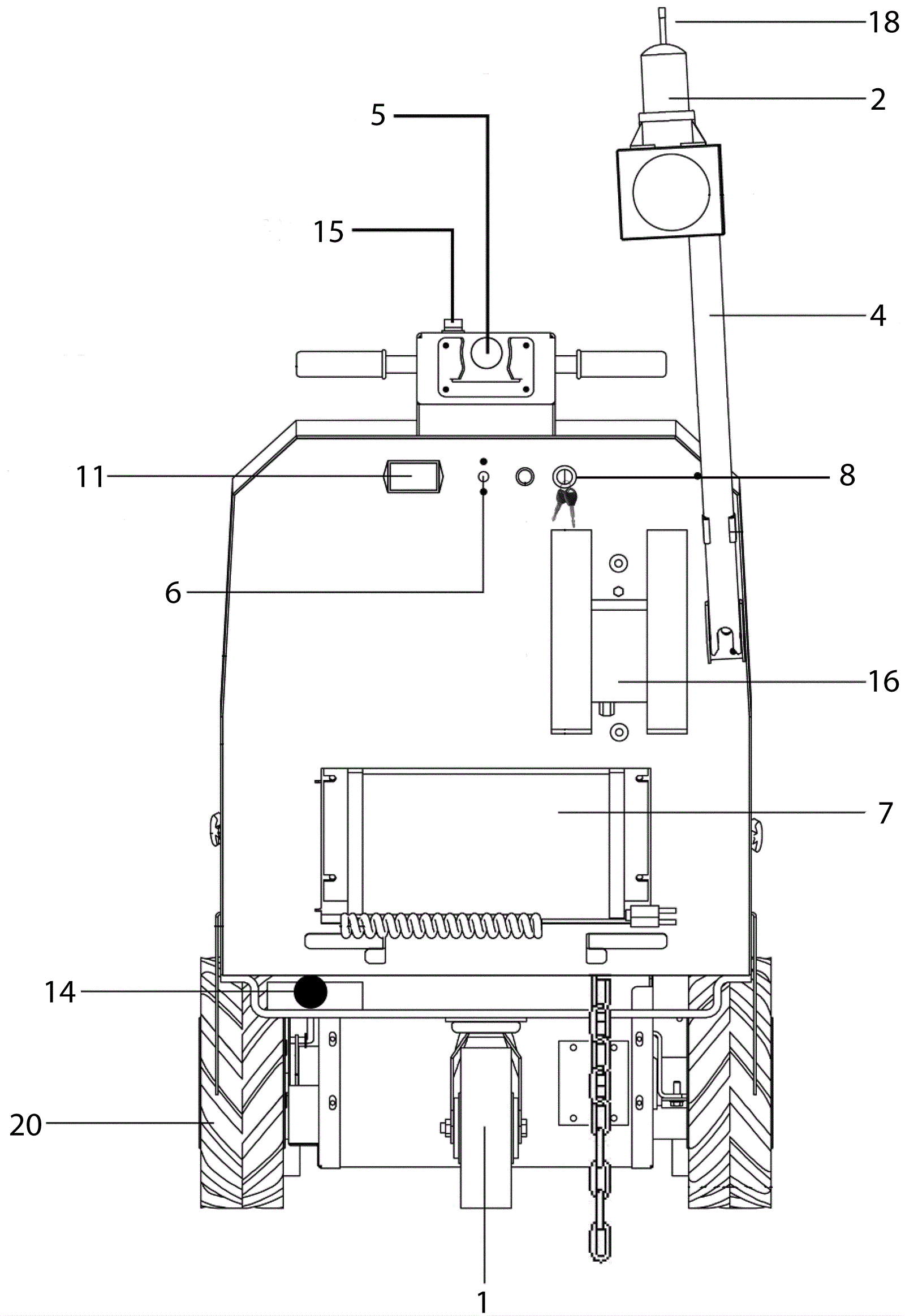

CARTMANAGER XD Entire Assembly (Before Version 1.7)

#PartDescriptionPriceReqNotesAvailability
1 179-0023 8 inch swivel caster wheel $139.63 ships same day
2a 179-2281 Strobe LED light $176.57 (includes 2b) ships same day
2b 179-2281 Strobe LED light $176.57 (old style) ships same day
2c N/A Not available Call for price (strobe light) usually ships 3-26 days
2d 179-2248 Light bulb (for orange globe) (OBSOLETE) $46.18 usually ships 10-12 days
5 179-0003 Emergency stop button $57.85 ships same day
6 179-0014 20amp circuit breaker (OBSOLETE) $146.32 usually ships 10-12 days
7 286-0004 110V 10amp battery charger $1,319.43 ships same day
8a 175-2149 Key switch assembly with keys $46.97 ships same day
8b 179-0064 Key (pkg of 2) $17.85 ships same day
11 286-0007 Battery charge indicator (OBSOLETE) $73.90 usually ships 10-12 days
15 286-0010 Horn $29.30 ships same day
16a 286-0021 Receiver board $738.47 ships same day
16b 286-0012 Remote transmitter (OBSOLETE) $455.94 (includes 16b) usually ships 10-12 days
18a 286-0013 Antenna assembly - NO LONGER AVAILABLE - SEE POPUP $19.69 (no longer available in the kit, must order 286-0016, 286-0017, and 286-0018) usually ships 1-5 days
18b 286-0017 RF cables $25.40 1 usually ships 1-5 days
18c 286-0018 Rubber grommet $11.43 1 usually ships 1-5 days
20 179-0006 Snow tire and rim assembly $188.47 ships same day
N/S 286-0046 140amp motor controller $1,087.38 ships same day
N/S 286-0008 36V motor $755.01 ships same day
N/S 286-0015 25 foot shag strap $27.47 ships same day
N/S 162-0011 12V 105Ah wet battery (SNSR) $291.50 3 ships same day
N/S 162-0042 12V 115Ah AGM battery (Group 31) $500.50 3 ships same day
N/S 179-0052 Torsion spring $3.08 ships same day
N/S 179-0088 Potentiometer $55.95 ships same day
N/S 286-0023 Transaxle replacement kit $3,122.15 usually ships 1-5 days
N/S 179-0052 Torsion spring $3.08 1 ships same day
