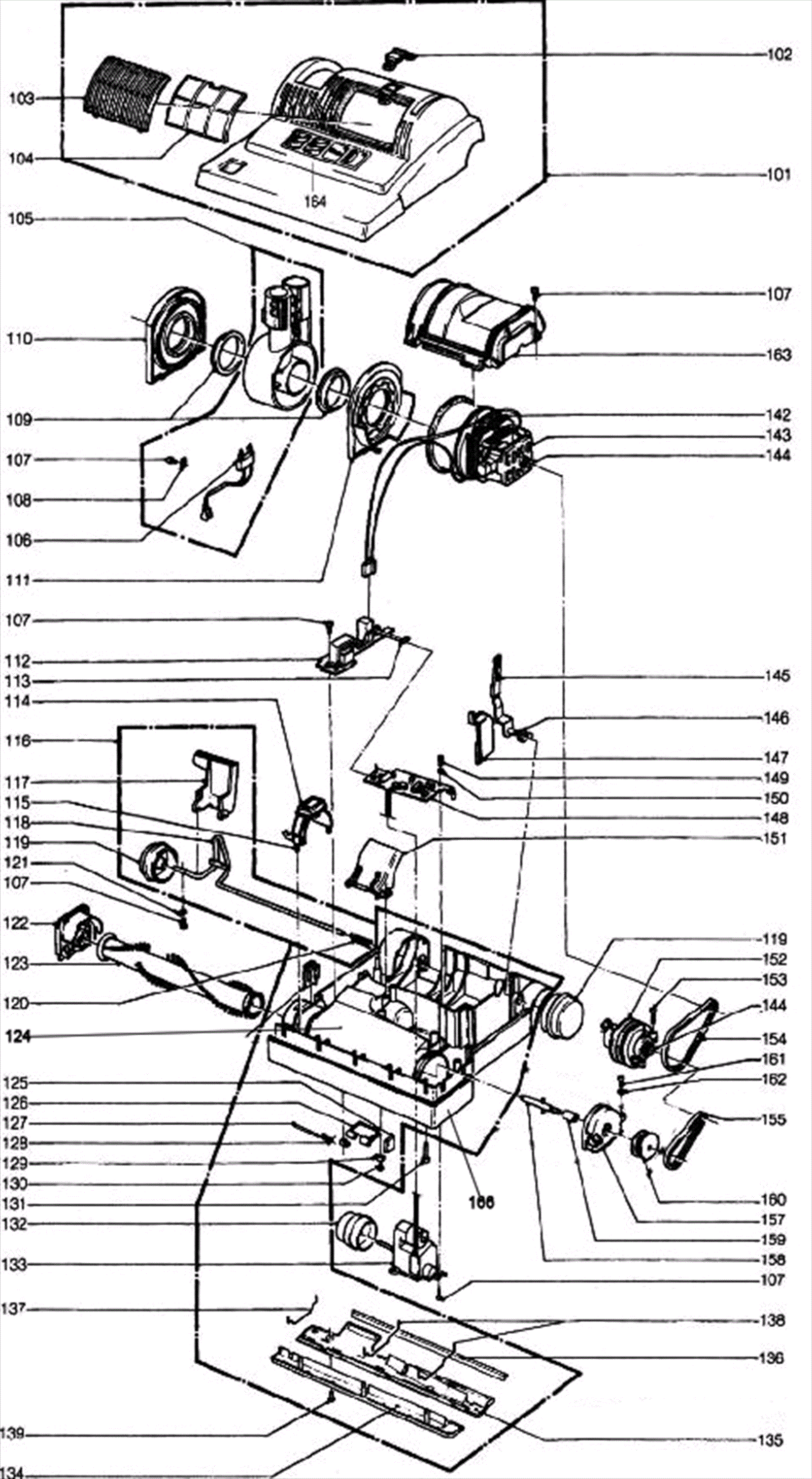

X1 Power Head Assembly

#PartDescriptionPriceReqNotesAvailability
101 284-1033 Power head cover $77.00 1 (includes 102,103,104,164) usually ships 17-33 days
102 173-2387 Exhaust filter catch $8.80 1 ships same day
103 284-1026 Exhaust filter cover $12.83 1 usually ships 17-33 days
104 173-0093 Exhaust filter $6.22 1 ships same day
105 173-5241 Swivel neck assembly $151.80 1 ships same day
106 273-7151 Male contact holder $31.13 1 usually ships 1-5 days
107 173-0007 Screw M3-.5 x 13mm $1.91 1 ships same day
108 173-2391 Cable clamp $3.70 1 usually ships 1-5 days
109 173-2392 Sleeve $14.74 1 usually ships 7-19 days
111 173-2394 swivel neck support (left) $43.01 1 usually ships 1-5 days
112 173-2395 12V power supply $164.23 1 ships same day
113 173-2395 12V power supply $164.23 1 ships same day
114 173-2397 Brush roller release $21.12 1 usually ships 7-19 days
115 173-2398 Spring $3.15 1 ships same day
116 173-2399 Axle assembly $37.62 1 (includes 117-119) ships same day
117 284-1027 Foot pedal $11.00 1 usually ships 17-33 days
118 173-2401 Axle $45.32 1 usually ships 7-19 days
119 173-2402 Wheel $37.84 1 ships same day
120 173-2398 Spring $3.15 1 ships same day
121 173-0008 Axle clamp $2.85 1 ships same day
122 284-1023 Right bearing block $22.00 1 ships same day
123 173-2403 12 inch brush roller $27.47 1 ships same day
124 173-2413 Complete chasis $218.90 1 usually ships 7-19 days
125 173-5254 Rubbing plate $7.98 1 usually ships 1-5 days
126 173-2406 Access door $21.12 1 ships same day
127 173-2407 Access door axle $1.16 1 ships same day
128 173-2408 Access door spring $5.61 1 ships same day
129 173-2409 Hinge $2.42 1 usually ships 7-19 days
130 173-2458 Screw M2.9 x 9.5mm (OBSOLETE) $0.99 1 usually ships 7-19 days
131 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated $0.99 1 ships same day
132 173-2410 Pile adjustment wheel $38.39 1 ships same day
133 173-2411 Drive motor with gear box $146.30 1 ships same day
134 284-1028 Front bottom plate $23.82 1 usually ships 17-33 days
135 284-1034 Rear bottom plate $22.00 1 usually ships 17-33 days
136 284-1021 Sealing strip $10.76 1 usually ships 17-33 days
137 173-5269 Wire tie $7.15 1 usually ships 7-19 days
138 173-5270 Wire tie $7.15 2 ships same day
139 273-0939 Screw M4-.7 x 12mm with washer $2.90 1 usually ships 7-19 days
143 173-2415 Rubber mount $24.20 1 usually ships 7-19 days
144 173-5426 Vacuum motor $407.00 1 usually ships 1-5 days
145 173-2417 Support lever $35.64 1 ships same day
146 173-2418 Support spring $3.58 1 ships same day
147 173-2419 Motor pulley cover $13.20 1 usually ships 7-19 days
148 173-5276 Circuit board $155.12 1 usually ships 7-19 days
149 173-2462 Screw M2.9 x 13mm $0.99 1 usually ships 1-5 days
150 173-2463 Washer 3.2mm $0.99 1 usually ships 1-5 days
151 173-2369 Catch lock $10.62 1 ships same day
152 173-5277 Sensor X4 $141.92 1 usually ships 7-19 days
153 173-2464 Screw 3.9 x 25mm $1.03 1 ships same day
154 173-2423 Belt $33.11 1 ships same day
155 173-2424 Belt $29.81 1 ships same day
157 173-2426 Left hand bearing block $43.36 1 (includes 160) usually ships 1-5 days
158 173-2427 Drive shaft and pin $28.93 1 usually ships 1-5 days
159 173-2428 bushing $3.94 1 usually ships 1-5 days
160 173-2426 Left hand bearing block $43.36 1 (included in 157) usually ships 1-5 days
161 173-0135 Screw M3-.5 x 16mm $0.99 1 ships same day
162 999-0985 Washer #4 SAE flat $0.99 1 ships same day
163 173-2430 Motor cover $45.52 1 ships same day
164 284-1036 Power nozzle display $9.16 1 usually ships 17-33 days
166 173-2404 Bumper $32.12 1 usually ships 7-19 days
