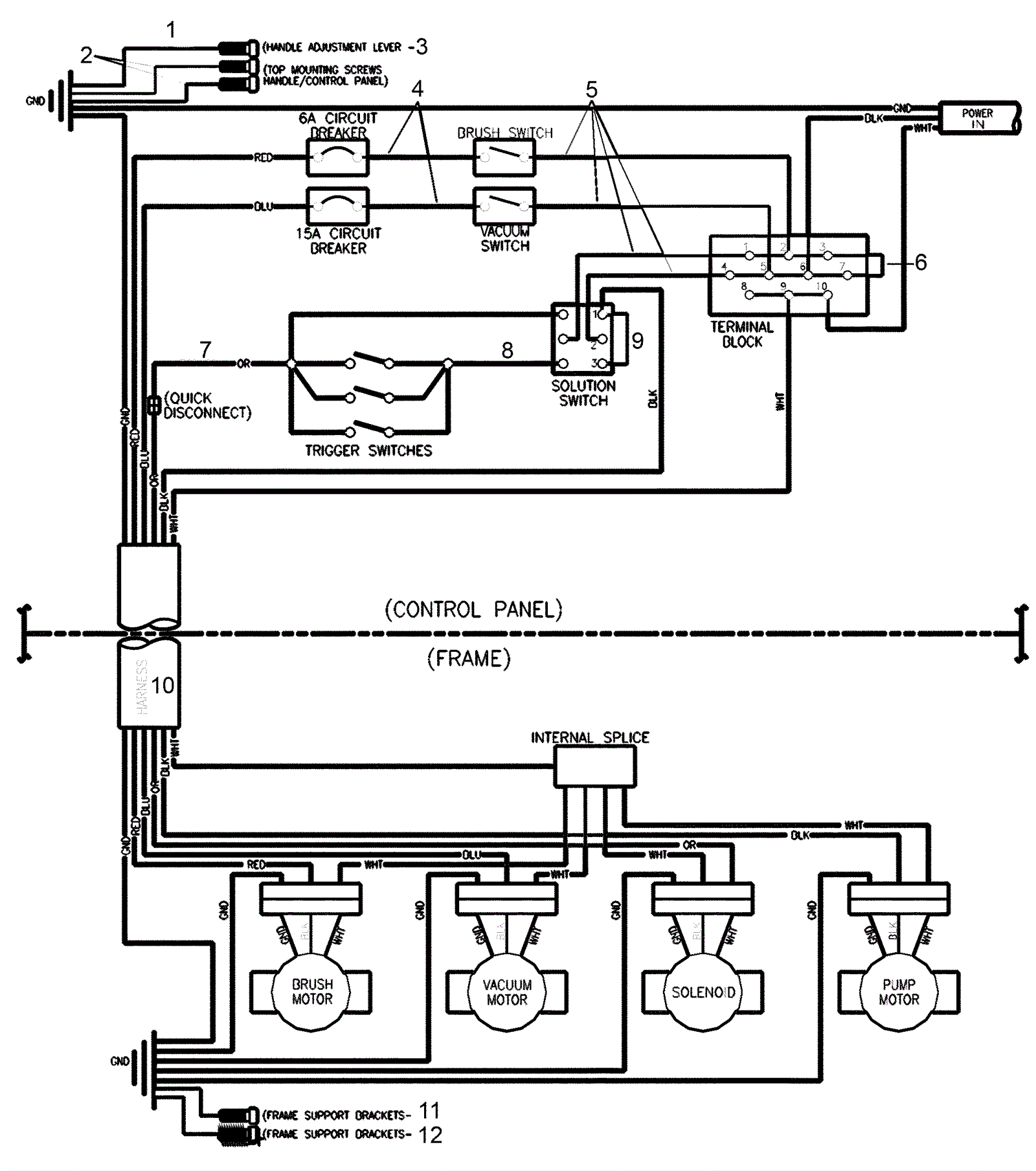

EX12 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
1 173-4418 10 inch green wire $18.90 usually ships 1-5 days
2 373-5012 11 inch wire green $13.80 usually ships 7-19 days
3 173-2185 Handle adjustment lever assembly $132.00 usually ships 1-5 days
4 373-5013 9 inch wire (black) $12.90 usually ships 7-19 days
5 373-5014 6 inch wire (black) $29.20 usually ships 7-19 days
6 N/A Not available Call for price usually ships 3-26 days
7 373-5015 Switch harness $36.30 usually ships 7-19 days
8 273-6242 Wire 8 inch (black) $9.95 usually ships 1-5 days
9 273-6243 Wire 6 inch (black) $14.40 usually ships 1-5 days
10 373-5016 27 inch wire (blue) $15.70 usually ships 7-19 days
11 189-3061 Wire assembly 26 inch black $3.68 usually ships 1-5 days
12 173-1532 16 inch strip wire (red) $14.90 usually ships 1-5 days
