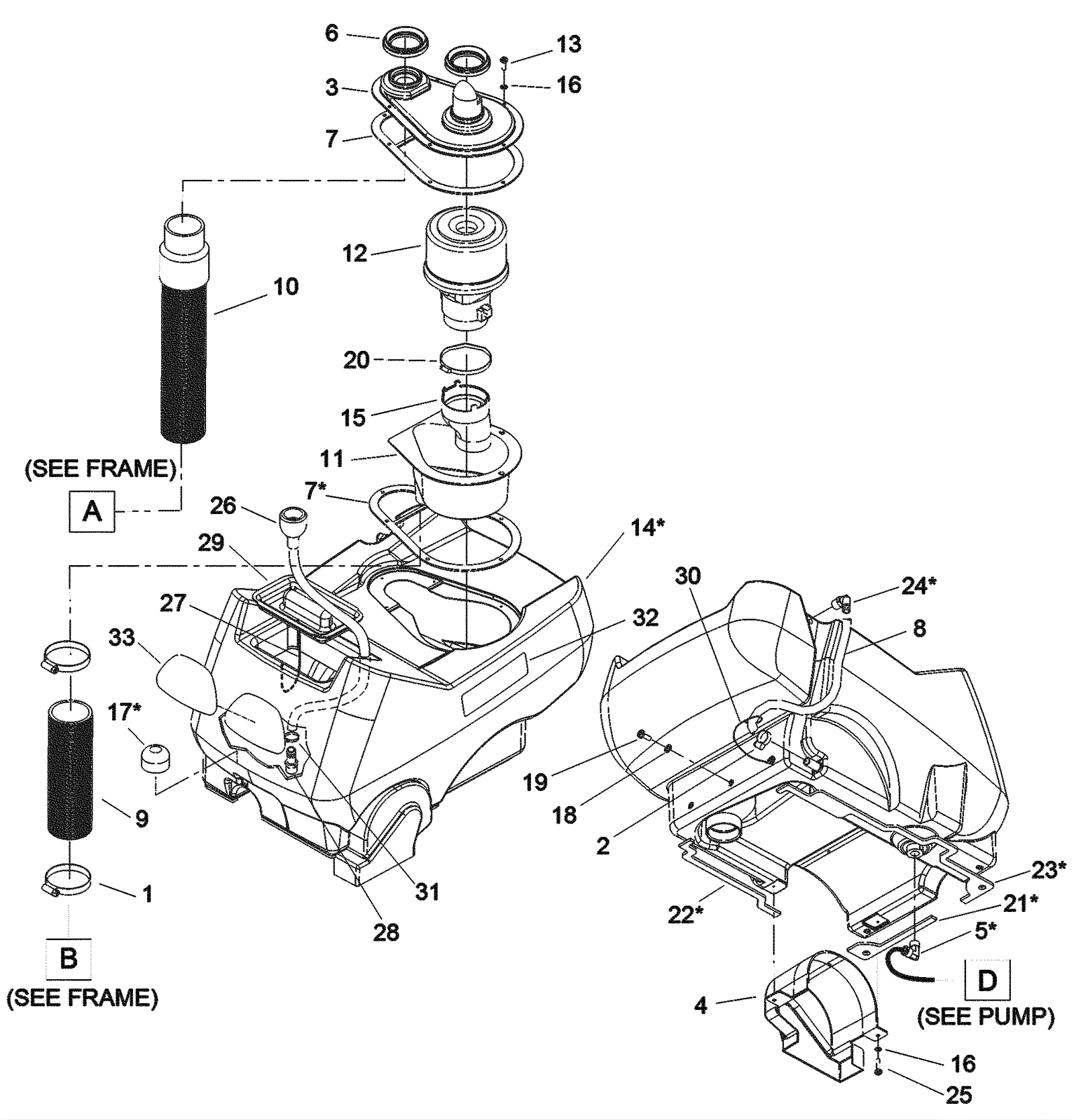

EX12 Solution Tank and Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5693 Hose clamp $3.04 2 ships same day
2 173-1821 Hose clamp $6.83 1 ships same day
3 173-2230 Vacuum motor cover $83.57 1 usually ships 14-22 days
4 173-2231 Belt cover $44.37 1 usually ships 14-22 days
5 189-4166 Elbow 3/8 x 3/8 inch $42.68 1 usually ships 14-27 days
6 173-2233 Gasket $25.89 2 ships same day
7 173-2234 Gasket $51.91 2 ships same day
8 173-2235 Hose 1/2 x 12 inch (clear) $22.59 1 usually ships 14-22 days
9 173-2236 vacuum hose 1.5 x 5.0 $25.89 1 usually ships 1-5 days
10 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $148.92 1 usually ships 14-27 days
11 173-2238 Vacuum motor housing $27.19 1 usually ships 14-22 days
12a 173-2239 120V vacuum motor assembly $794.48 1 usually ships 14-22 days
12b 273-4028 Carbon brush set $12.36 1 usually ships 14-22 days
13 173-0627 Screw 10 x 1 pan head phillips self tapping type b $4.87 6 usually ships 14-22 days
14 173-2240 Solution tank $501.40 1 usually ships 14-22 days
15 173-2241 Large vent $68.86 1 usually ships 14-22 days
16 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
17 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
19 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 3 ships same day
20 173-2242 Hose clamp $16.13 1 usually ships 14-22 days
21 173-2243 Front left tank gasket $7.83 1 usually ships 14-22 days
22 173-2244 Rear left tank gasket $10.01 1 usually ships 14-22 days
23 173-2245 Right tank gasket (OBSOLETE) $24.20 1 usually ships 14-22 days
24 173-1072 Hosebarb 3/8 x 1/2 inch $9.89 1 usually ships 14-22 days
25 173-2454 Screw 10-3/4 polyfast $1.63 2 ships same day
26 173-2246 Fill hose assembly $142.42 1 usually ships 14-22 days
27 173-3412 Cord 1/8 x 12 inch $14.00 1 usually ships 14-22 days
28 173-2247 Hosebarb 1/2 x 3/8 inch $9.06 1 usually ships 14-22 days
29 173-2248 Solution cover $42.60 1 usually ships 14-22 days
30 173-2249 Lanyard $47.43 1 usually ships 1-5 days
31 173-2741 Hose clamp $2.76 1 usually ships 14-22 days
32 373-5009 Trident EX12 decal $28.60 2 usually ships 14-22 days
33 373-5010 Hillyard dome decal $12.12 1 usually ships 14-22 days
N/S 173-2250 Solution tank assembly $609.69 1 (includes 5, 7, 14, 17, 21, 22, 23, and 24) usually ships 1-5 days
