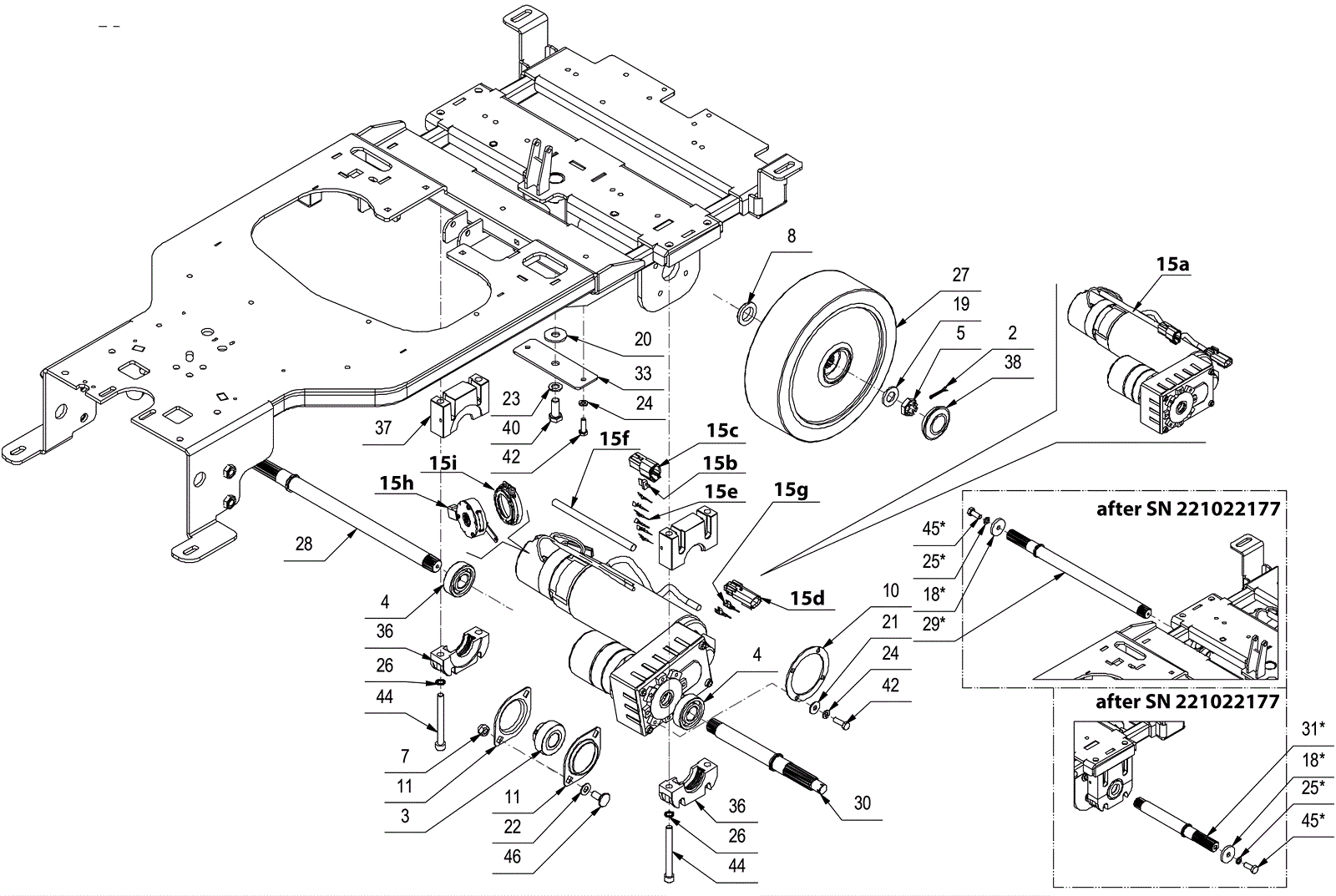

TRIDENT R26SC Frame and Traction Assembly-2

#PartDescriptionPriceReqNotesAvailability
2 250-1520 Split pin $15.83 2 usually ships 1-5 days
3 283-2046 BEARING $46.88 1 usually ships 6-27 days
4 283-1573 BALL BEARING 6204-2RS1 $30.44 2 usually ships 6-27 days
5 283-9084 Stud Call for price 2 usually ships 6-27 days
7 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 2 usually ships 6-27 days
8 283-1161 SPACER $15.50 2 usually ships 6-27 days
10 283-3667 Spacer Call for price 1 usually ships 6-27 days
11 283-2047 SUPPORT $6.03 2 usually ships 6-27 days
15a 283-3666 Geared motor $2,334.16 1 (includes 15b-15i) usually ships 6-27 days
15b 283-9085 Lock contacts Call for price 1 usually ships 6-27 days
15c 283-9086 Connector Call for price 1 usually ships 6-27 days
15d 283-9087 Connector female Call for price 1 usually ships 6-27 days
15e 283-9088 Contact Call for price 6 usually ships 6-27 days
15f 283-1079 SHEATH $8.97 1 usually ships 6-27 days
15g 283-9089 Contact Call for price 2 usually ships 6-27 days
15h 283-2979 ELECT.BRAKE 24V 300W 115G 18A $352.54 1 usually ships 6-27 days
15i 283-9090 Encoder $295.82 1 usually ships 6-27 days
18 250-1320 Washer $9.53 2 (after SN 221022177) usually ships 1-5 days
19 283-1792 ROSE $2.82 2 usually ships 6-27 days
20 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. $2.58 1 usually ships 6-27 days
21 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $2.58 6 usually ships 6-27 days
22 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 6 usually ships 6-27 days
23 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL $2.58 1 usually ships 6-27 days
24 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $3.47 6 usually ships 6-27 days
25 283-1779 WASHER 8X13X2.2 GROWER GALV. $3.47 2 (after SN 221022177) usually ships 6-27 days
26 283-1812 WASHER M8X13 SCHNORR $2.58 4 usually ships 6-27 days
27 283-2375 WHEEL D=225 L=69 RES SMX BT $150.27 2 usually ships 6-27 days
28 283-9091 Right hand axle shaft Call for price 1 (before SN 221022178) usually ships 6-27 days
29 283-3664 Right hand axle shaft Call for price 1 (after SN 221022177) usually ships 6-27 days
30 283-9092 Left hand axle shaft Call for price 1 (before SN 221022178) usually ships 6-27 days
31 283-3665 Left hand axle shaft Call for price 1 (after SN 221022177) usually ships 6-27 days
33 283-3661 Support Call for price 1 usually ships 6-27 days
36 283-1166 INF. BEARING SUPPORT HS50 $175.45 2 usually ships 6-27 days
37 283-1165 SUP. BEARING SUPPORT HS50 $94.37 2 usually ships 6-27 days
38 283-2314 HUB COVER $2.58 2 usually ships 6-27 days
40 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. $2.58 1 usually ships 6-27 days
42 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $2.58 8 usually ships 6-27 days
44 283-1658 8X80 HEX SKT PN SCREW UNI 5931 (8.8)Z $2.58 4 usually ships 6-27 days
45 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $8.83 2 (after SN 221022177) usually ships 6-27 days
46 283-1597 SCREW M8X20 UNI 5732 GALV. $2.78 2 usually ships 6-27 days
