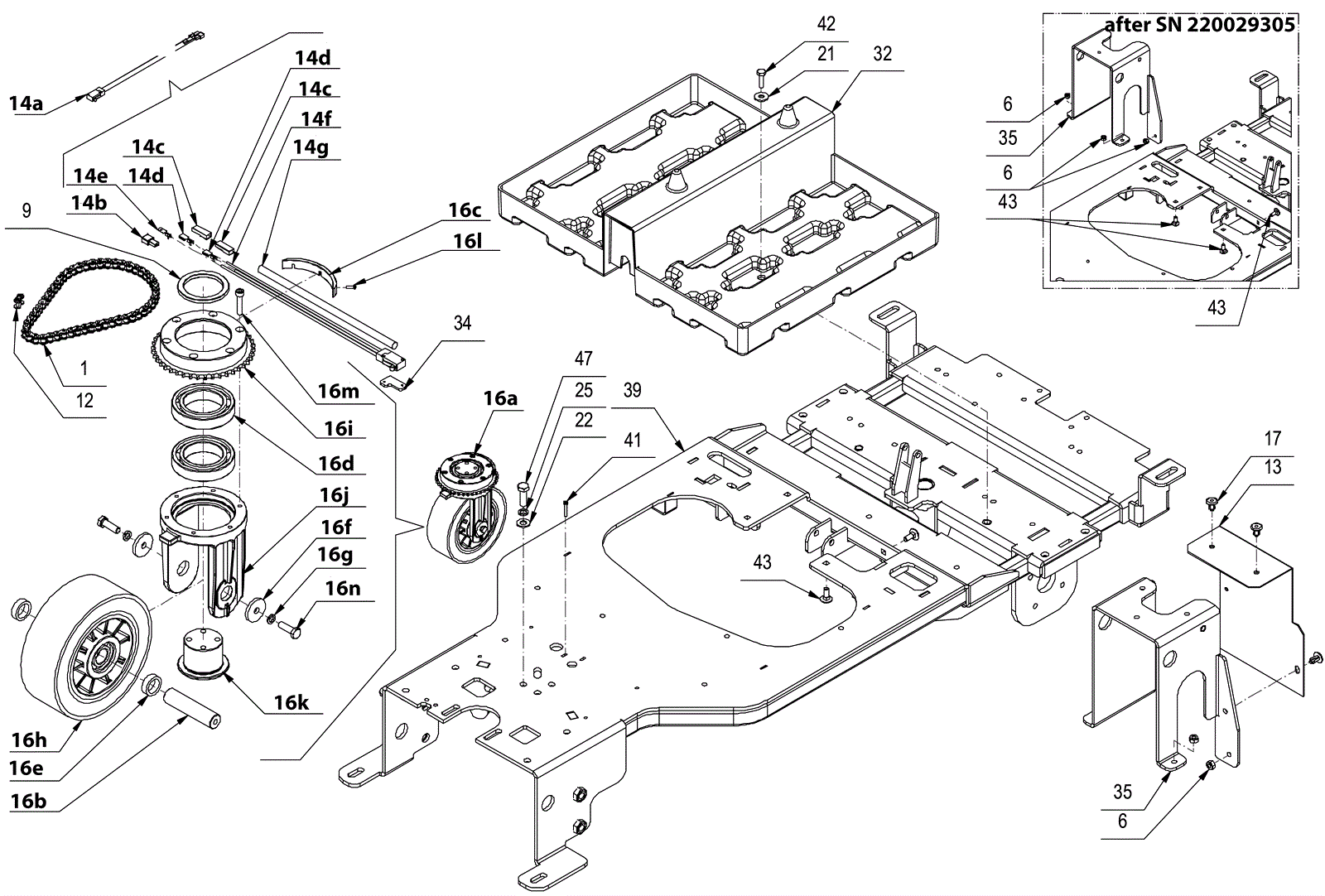

TRIDENT R26SC Frame and Traction Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 283-3668 Chain Call for price 1 usually ships 26-37 days
6 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $4.58 4 usually ships 26-37 days
8 283-2533 SPACER D=65 d=50,2 S=5 S235 $38.80 1 usually ships 26-37 days
12 283-1961 JOINT CHAIN 3/8 SIMPLE $9.45 1 usually ships 26-37 days
13 283-9081 Rubber Call for price 1 (after SN 220029305) usually ships 26-37 days
14a 283-1214 MICROSWITCH $147.36 1 (includes 14b-14g) usually ships 26-37 days
14b 283-1857 COVER - MALE CONNECTOR 6.3 $4.58 1 usually ships 26-37 days
14c 283-9082 Faston cover Call for price 2 usually ships 26-37 days
14d 283-1855 FEMALE CONNECTOR 6.3 - BARE $4.80 2 usually ships 26-37 days
14e 283-2120 FASTON MALE NUDE D6.3 MTA 13.01 $2.84 1 usually ships 26-37 days
14f 283-2381 MICROSWITCH $74.84 1 usually ships 26-37 days
14g 283-9083 Sheath Call for price 1 usually ships 26-37 days
16a 283-1250 PREASS. FRONT WHEEL MXR $1,398.49 1 (includes 16b-16n) usually ships 26-37 days
16b 283-2531 FRONT WHEEL SHAFT D=20 L=83,5 $30.99 1 usually ships 26-37 days
16c 283-2502 FRONT WHEEL CAMSHAFT R22 $2.97 1 usually ships 26-37 days
16d 283-1575 PAD SF.6010-2RS(50X80X16) $184.69 2 usually ships 26-37 days
16e 283-1157 SPACER D.27(20)X8 $6.25 2 usually ships 26-37 days
16f 250-1320 Washer $10.48 2 usually ships 1-5 days
16g 283-1782 Washer 8X13X2,2 GROWER A2 $4.58 2 usually ships 26-37 days
16h 283-2532 WHEEL D=175 d=20 s=60 WITH BEARINGS $487.54 1 usually ships 26-37 days
16i 283-2503 BEARING SUPPORT + CROWN WHEEL $121.00 1 usually ships 26-37 days
16j 283-2498 FRONT WHEEL INF.SUPPORT R22 $97.99 1 usually ships 26-37 days
16k 283-2530 WHEEL SUPPORT D=50-65 H=41 $48.37 1 usually ships 26-37 days
16l 283-1664 SCREW M3X10 UNI 7687 (4.8) GALV. $2.84 3 usually ships 26-37 days
16m 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 $4.58 6 usually ships 26-37 days
16n 283-1616 SCREW 8X25 UNI 5739 A2 $4.58 2 usually ships 26-37 days
17 283-2109 RIVET FAN SHROUD $2.84 3 (after SN 220029305) usually ships 26-37 days
21 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $4.58 6 usually ships 26-37 days
22 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $4.58 6 usually ships 26-37 days
25 283-1779 WASHER 8X13X2.2 GROWER GALV. $4.58 4 ships same day
32 283-3660 Battery base Call for price 1 usually ships 26-37 days
34 283-1231 Support $27.56 1 usually ships 26-37 days
35 283-3662 Support Call for price 1 usually ships 26-37 days
39 283-3659 Frame Call for price 1 usually ships 26-37 days
41 283-1661 SCREW M3X20 UNI 7687 (4.8) GALV. $4.58 2 usually ships 26-37 days
42 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 8 usually ships 26-37 days
43 999-1600 Screw M6 x 16 pan head zinc $0.99 4 ships same day
47 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G $4.58 4 usually ships 26-37 days
