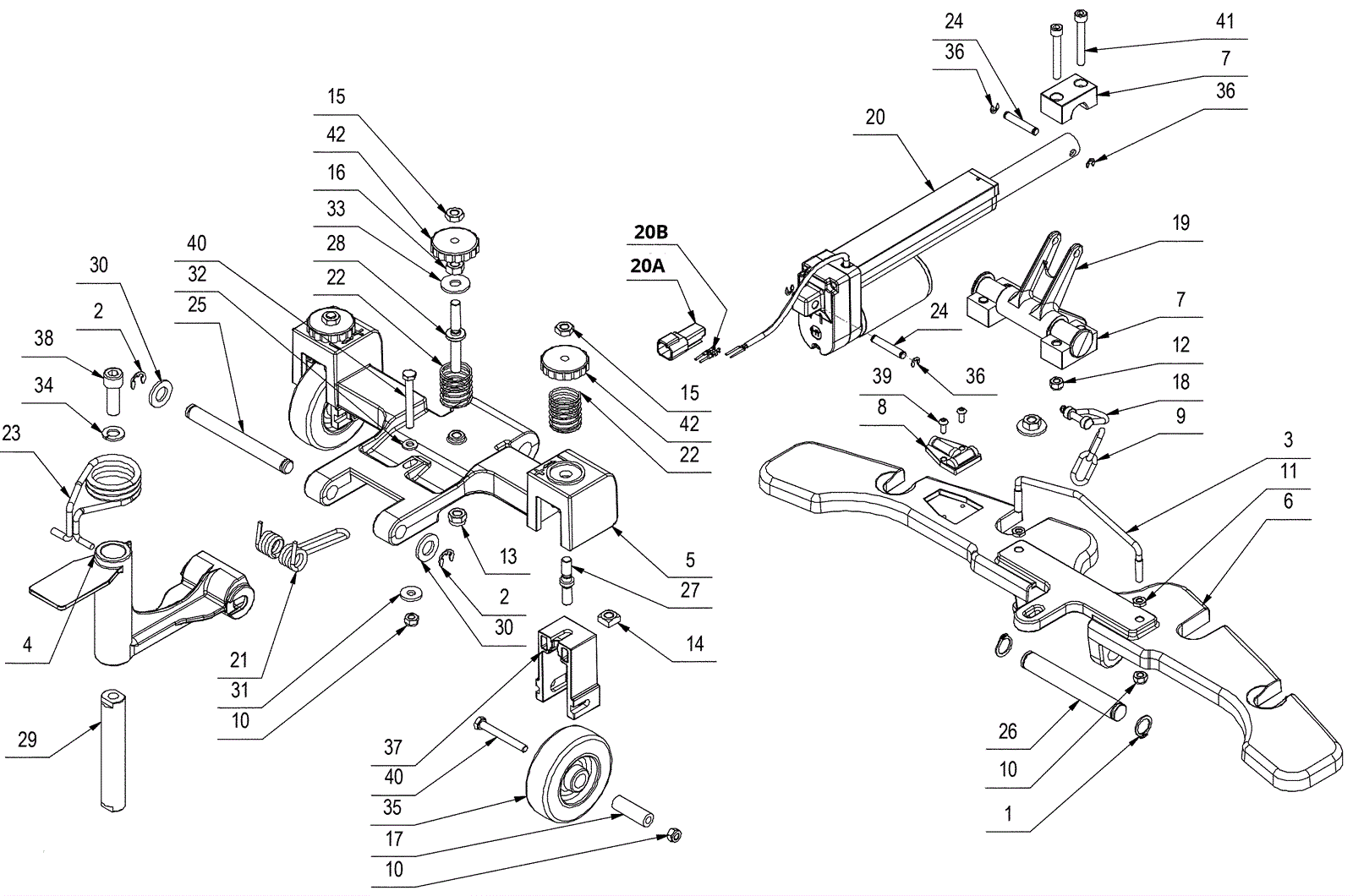

TRIDENT R26SC Squeegee Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-3095 SEEGER E15 UNI7435 $2.58 2 usually ships 6-27 days
2 283-3648 Seeger ring Call for price 2 usually ships 6-27 days
3 283-2514 LIFTING BOW SQUEEGEE R22 $33.60 1 usually ships 6-27 days
4 283-3649 Front coupling Call for price 1 usually ships 6-27 days
5 283-3650 Central coupling Call for price 1 usually ships 6-27 days
6 283-3651 Rear coupling $280.84 1 usually ships 6-27 days
7 283-3163 SHAFT SUPPORT $17.89 4 usually ships 6-27 days
8 283-3049 DOUBLE BUBBLE LEVEL $5.00 1 usually ships 6-27 days
9 283-3652 Chain Call for price 1 usually ships 6-27 days
10 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL $2.89 5 usually ships 6-27 days
11 283-1717 NUT M6x3 UNI 5590 A2 $2.58 2 usually ships 6-27 days
12 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $2.58 4 usually ships 6-27 days
13 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW $2.58 1 usually ships 6-27 days
14 283-1724 SPECIAL NUT M8 13X13X6.5 DIN557 ST.ST $2.58 2 usually ships 6-27 days
15 283-1719 NUT M8 UNI 5589 ST.STEEL LOW $2.58 3 usually ships 6-27 days
16 283-1720 NUT M8 UNI 5588 INOX MEDIUM $2.58 1 usually ships 6-27 days
17 283-1537 SPACER D.12(6.2)X36 $7.52 2 usually ships 6-27 days
18 283-1880 SPLIT PIN M5 $10.12 1 usually ships 6-27 days
19 283-3653 Lever Call for price 1 usually ships 6-27 days
20a 283-3654 Actuator assembly Call for price 1 (includes 20b and 20c) usually ships 6-27 days
20b 283-9064 Connector Call for price 1 usually ships 6-27 days
20c 283-9065 Contact Call for price 2 usually ships 6-27 days
21 283-3655 Spring Call for price 1 usually ships 6-27 days
22 283-1538 COMPR. SPRING 26x1.5x30 $4.36 3 usually ships 6-27 days
23 283-3656 Spring Call for price 1 usually ships 6-27 days
24 283-3640 Pin D.6 x 35 Call for price 2 usually ships 6-27 days
25 283-3657 Pin Call for price 1 usually ships 6-27 days
26 283-3018 PIN D=15 L=108 OT58 $50.48 1 usually ships 6-27 days
27 283-1463 ADJUSTING PIN $12.77 2 usually ships 6-27 days
28 283-3658 Pin Call for price 1 usually ships 6-27 days
29 283-2513 PIN BLADE ROTATION CONTROL R22 $55.91 1 usually ships 6-27 days
30 283-1790 WASHER M12 UNI 6592 GALV. $2.58 2 usually ships 6-27 days
31 283-1768 WASHER M6X18 UNI 6593 LARGE FL. ST.ST $2.58 1 ships same day
32 283-1766 WASHER M6 UNI 6592 ST.STEEL $3.47 1 usually ships 6-27 days
33 283-1781 WASHER M8X24 UNI 6593 LARGE FL. ST.ST $2.58 1 usually ships 6-27 days
34 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL $2.58 1 usually ships 6-27 days
35 283-2707 WHEEL D=80 H=25 GREY RUBBER 70Sh $16.27 2 usually ships 6-27 days
36 283-1563 SEEGER RING RS 4 DIN 6799 $2.58 4 usually ships 6-27 days
37 283-1462 WHEEL SUPPORT $25.14 2 usually ships 6-27 days
38 283-1659 M10x30 TCEI UNI5931 ZINC $4.54 1 usually ships 6-27 days
39 283-2305 SCREW 4X10 ISO 7380 A2 TCBEI $2.58 2 usually ships 6-27 days
40 250-1275 Screw M6 x 50mm $11.67 3 usually ships 1-5 days
41 283-1654 SCREW $2.72 4 usually ships 6-27 days
42 283-3282 LOCKING WHEEL M8 D=40 S=9 YELLOW $12.12 3 usually ships 6-27 days
