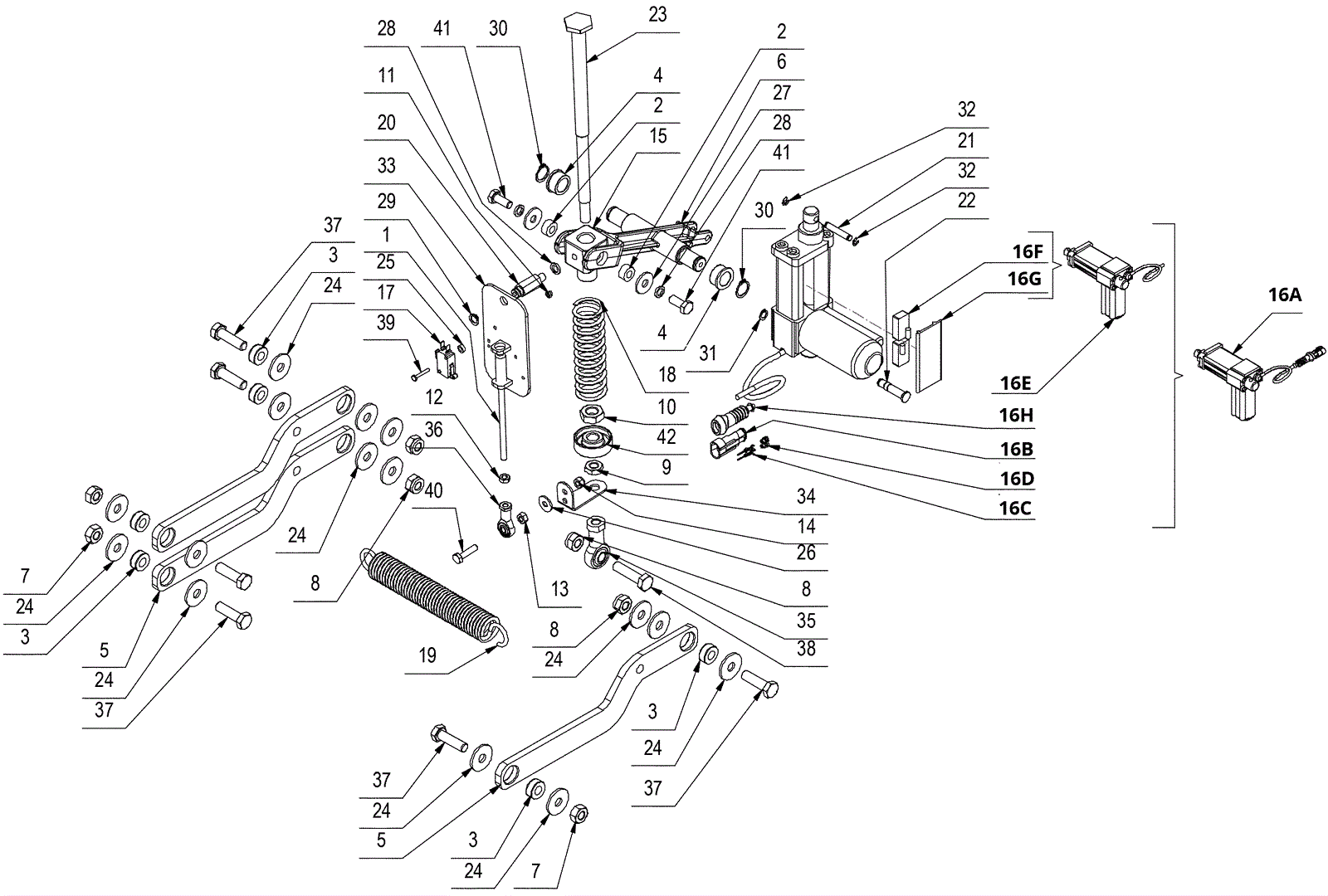

TRIDENT R26SC Brush Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-3631 Rod Call for price 1 usually ships 26-37 days
2 283-3632 Bushing Call for price 2 usually ships 26-37 days
3 283-3633 Bushing Call for price 6 usually ships 26-37 days
4 283-1530 BUSHING $10.60 2 usually ships 26-37 days
5 283-3634 Arm Call for price 3 usually ships 26-37 days
6 283-3635 Arm Call for price 1 usually ships 26-37 days
7 283-2092 NUT M10 UNI 5588-65 ZINC. MIDDLE $2.84 3 usually ships 26-37 days
8 999-1550 Nut M10-1.5 nylon insert lock $0.99 4 usually ships 1-5 days
9 283-1725 NUT M10 UNI5589 GALV. LOW $4.58 1 usually ships 26-37 days
10 283-2094 Nut M4X2 UNI 5589 ZINC. $2.99 1 usually ships 26-37 days
11 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL $2.84 2 usually ships 26-37 days
12 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
13 283-1713 NUT M6 UNI 5588 DIN 934 GALV. $4.58 1 usually ships 26-37 days
14 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $4.58 1 usually ships 26-37 days
15 283-3636 Pin guide Call for price 1 usually ships 26-37 days
16a 283-3637 Actuator assembly $971.11 1 (includes 16b-16h) usually ships 26-37 days
16b 283-2556 CONNECTORS AMP SUPERSEAL 1,5 282104-1 $5.13 1 usually ships 26-37 days
16c 283-2557 CONTACT PIN MINI-MIC TAB 282404-1 $2.84 2 usually ships 26-37 days
16d 283-2558 CONTACT PIN GASKET AMP 281934-2 YELLO $2.84 2 usually ships 26-37 days
16e 283-9061 Actuator Call for price 1 (includes 16f-16g) usually ships 26-37 days
16f 283-9062 Microswitch Call for price 2 usually ships 26-37 days
16g 283-9063 Cover Call for price 1 usually ships 26-37 days
16h 283-2563 ACCORDION AMP SUPERSEAL 880810-1 $5.50 1 usually ships 26-37 days
17 283-1820 MICROSWITCH 10A 3X22 $25.93 1 usually ships 26-37 days
18 283-3638 Spring Call for price 1 usually ships 26-37 days
19 283-1043 EXTENSION SPRING 30X4X208 - MAGNA $30.82 1 usually ships 26-37 days
20 283-3639 Pin Call for price 1 usually ships 26-37 days
21 283-3640 Pin D.6 x 35 Call for price 1 usually ships 26-37 days
22 283-3089 PIN $34.93 1 usually ships 26-37 days
23 283-3641 Pin Call for price 1 usually ships 26-37 days
24 283-2736 WASHER 10X30X2.5 UNI 6593 $7.99 15 usually ships 26-37 days
25 283-1758 WASHER 4x8x3 NYLON $4.58 2 usually ships 26-37 days
26 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $4.58 1 usually ships 26-37 days
27 283-2233 WASHER D.8x24 ZNT $2.99 2 usually ships 26-37 days
28 283-1779 WASHER 8X13X2.2 GROWER GALV. $4.58 3 ships same day
29 283-1556 SEEGER E 10 $4.58 1 usually ships 26-37 days
30 283-1558 SEEGER E 16 X1 DIN 471 $4.58 2 usually ships 26-37 days
31 283-1555 SEEGER RING (NS13) $4.80 1 usually ships 26-37 days
32 283-1563 SEEGER RING RS 4 DIN 6799 $4.58 2 usually ships 26-37 days
33 283-3642 Support Call for price 1 usually ships 26-37 days
34 283-3643 Support Call for price 1 usually ships 26-37 days
35 283-1579 ARTICULATED HEAD D.10X14 M10 DIN468K $96.09 1 usually ships 26-37 days
36 283-3644 Articulation head Call for price 1 usually ships 26-37 days
37 283-1640 SCREW M10X35 UNI 5737 DIN 931 (8.8) $4.80 6 usually ships 26-37 days
38 283-1642 SCREW M10X40 UNI 5737 DIN 931 (8.8) $10.69 1 usually ships 26-37 days
39 283-2055 SCREW M3X20 TE UNI 5739 INOX A2 $5.98 2 usually ships 26-37 days
40 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA $4.58 1 usually ships 26-37 days
41 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $15.55 2 usually ships 26-37 days
42 283-3015 HANDWHEEL D=40 M14x2 - A2 $70.69 1 usually ships 26-37 days
