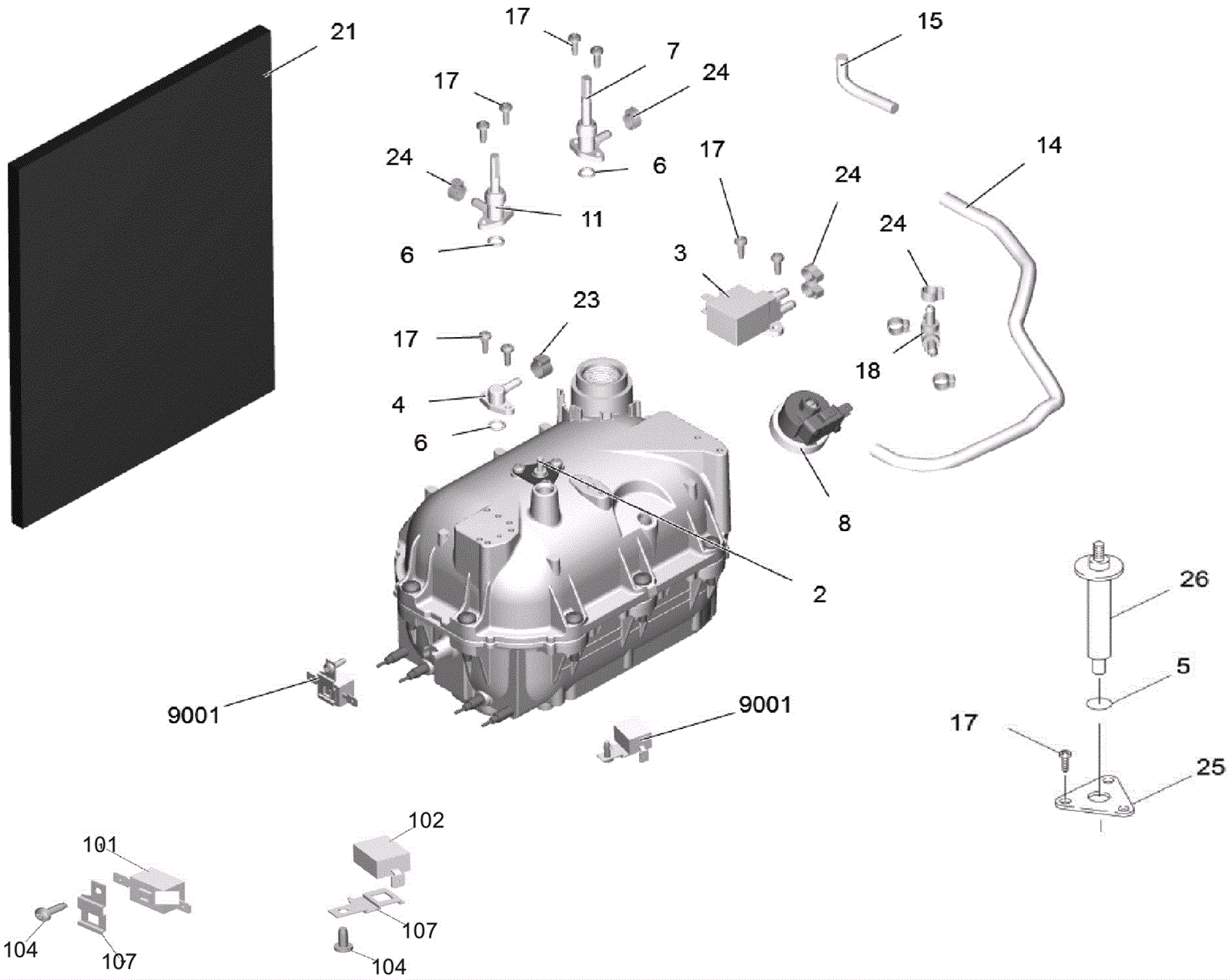

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
183-9760
|
Steam tank |
1 |
|
|
3 |
183-9764
|
Solenoid valve (OBSOLETE) |
1 |
|
|
4 |
183-9765
|
Elbow connector |
1 |
|
|
5 |
183-9766
|
Gasket (OBSOLETE) |
1 |
|
|
6 |
183-9718
|
O-ring for long detail nozzle |
3 |
|
|
7 |
183-9767
|
Control valve |
1 |
|
|
8 |
183-9768
|
Pressure regulator (OBSOLETE) |
1 |
|
|
11 |
183-9769
|
Steam volume control valve |
1 |
|
|
14 |
183-9770
|
Sheathed hose |
1 |
|
|
15 |
183-9771
|
Hose |
1 |
|
|
17 |
183-9781
|
Screw M4 x 12 |
8 |
|
|
18 |
183-9773
|
T-fitting (OBSOLETE) |
1 |
|
|
21 |
183-9774
|
Insulation (OBSOLETE) |
1 |
|
|
23 |
183-9775
|
Hose clip |
1 |
|
|
24 |
183-9776
|
Hose clip 7.5-9.0 |
4 |
|
|
25 |
183-9777
|
Probe plate holder |
1 |
|
|
26 |
183-9778
|
Probe |
1 |
|
|
101 |
183-9779
|
Thermostat (OBSOLETE) |
1 |
|
|
102 |
183-9780
|
Low water thermostat |
1 |
|
|
104 |
183-9781
|
Screw M4 x 12 |
2 |
|
|
107 |
183-9782
|
Bracket (OBSOLETE) |
2 |
|
|
9001 |
183-9783
|
Thermostat spare parts set |
1 |
|
|
