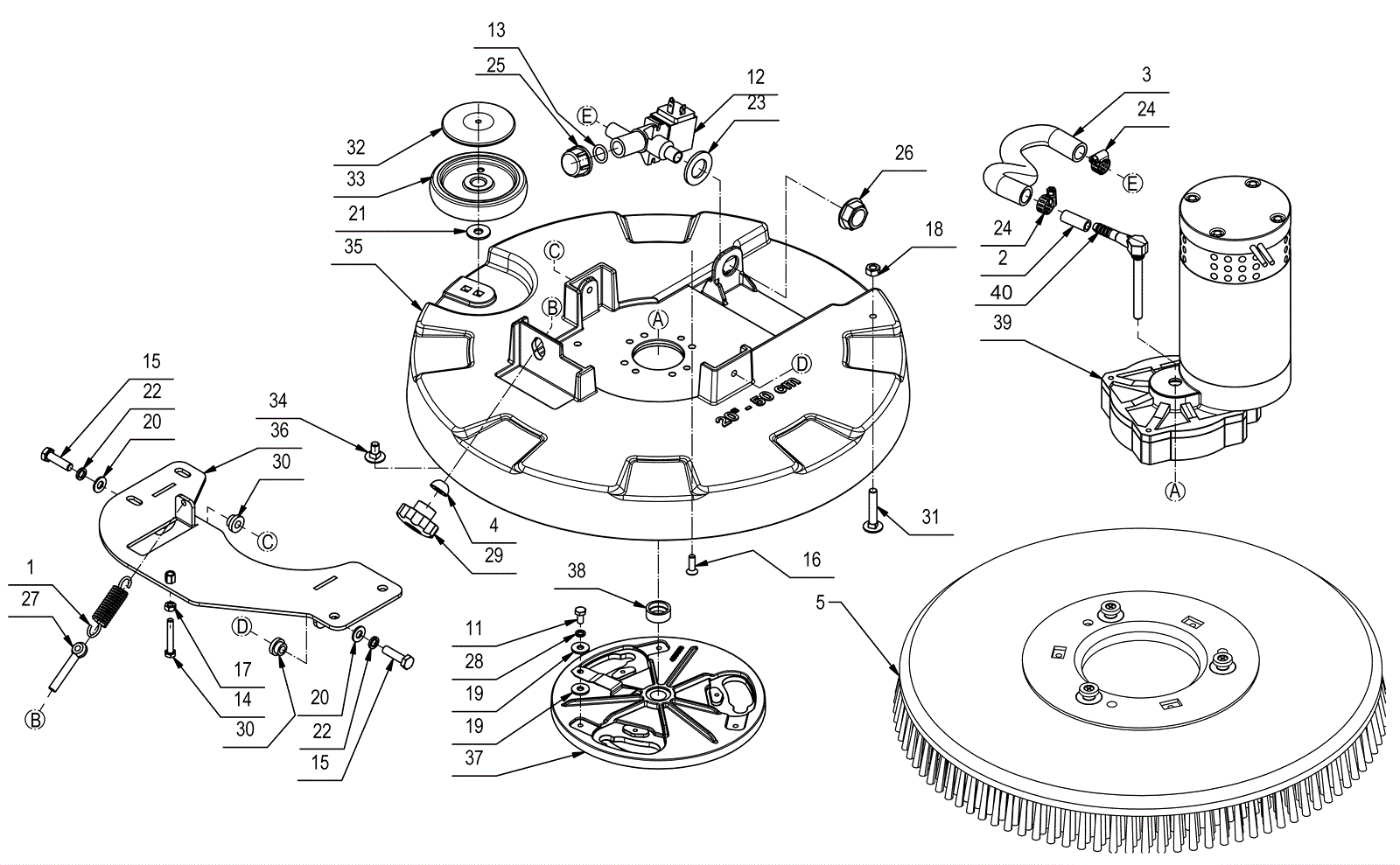

CB50 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1093 EXTENSION SPRING 17.5X2.5X69 (OPEN) $11.68 1 usually ships 6-27 days
2 283-1245 TUBE $7.45 1 usually ships 6-27 days
3 283-1272 SHEATH FX15N L=170 $21.56 1 usually ships 6-27 days
4 283-1455 GUIDE $5.69 1 usually ships 6-27 days
5a 283-1479 BRUSH PPL 0.9 $255.73 1 usually ships 6-27 days
5b 283-1480 Brush PPL 0.3 $553.44 1 usually ships 6-27 days
5c 283-1486 PAD HOLDER D.500 W/C.LOCK - S50 $751.56 1 usually ships 6-27 days
5d 283-1924 CENTER LOCK H=20 - THREADED GREEN $54.24 1 usually ships 6-27 days
5e 283-1488 BRUSH D.500 PPL 0.6 - S50 $553.44 1 usually ships 6-27 days
5f 283-1489 ABRASIVE BRUSH $719.73 1 usually ships 6-27 days
10 283-1503 SPRING - BRUSH LOCK $27.54 1 usually ships 6-27 days
11 283-1513 SCREW M6X12 UNI5739 HEX.HEAD A2 $4.58 1 usually ships 6-27 days
12 283-1525 COMPLETE SOLENOID VALVE 24V 1/2 inch ACL $245.97 1 usually ships 6-27 days
13 283-1590 2.68 $7.89 1 usually ships 6-27 days
14 283-1612 SCREW M6X40 UNI 5739 GALV. $4.58 1 usually ships 6-27 days
15 154-9242 Screw M8 x 30mm $6.66 2 usually ships 4-15 days
16 283-1700 SCREW 6X20 UNI 5933 A2 $4.58 4 usually ships 6-27 days
17 283-1713 NUT M6 UNI 5588 DIN 934 GALV. $4.58 1 usually ships 6-27 days
18 283-1720 NUT M8 UNI 5588 INOX MEDIUM $4.58 1 usually ships 6-27 days
19 283-1768 WASHER M6X18 UNI 6593 LARGE FL. ST.ST $4.58 2 ships same day
20 283-1776 WASHER M8 UNI 6592 ST.STEEL $4.58 2 usually ships 6-27 days
21 283-1781 WASHER M8X24 UNI 6593 LARGE FL. ST.ST $4.58 1 usually ships 6-27 days
22 283-1782 Washer 8X13X2,2 GROWER A2 $4.58 2 usually ships 6-27 days
23 283-1795 WASHER 21X37X3 UNI 6592 GALV. $4.58 1 usually ships 6-27 days
24 283-1875 CLAMP W/SCREW 11/17 ABA $9.21 2 usually ships 6-27 days
25 283-1900 FEMALE CAP 1/2 inch $5.97 1 usually ships 6-27 days
26 283-1902 BLACK PLASTIC NUT 1/2' $6.41 1 usually ships 6-27 days
27 283-1923 CONNECTING ROD M8X50 UNI6058 ZINC $27.30 1 usually ships 6-27 days
28 283-2106 washer M6 UNI 1751 INOX GROWER $3.82 1 usually ships 6-27 days
29 283-2123 KNOB D.45 M8 FEMALE $11.06 1 usually ships 6-27 days
30 283-2307 BUSHING 18-3X8X9.5 OT54 $15.85 2 usually ships 6-27 days
31 283-2423 SCREW 8X45 A2 UNI5732 TOTAL THREAD $2.97 1 usually ships 6-27 days
32 283-2495 BASE WHEEL BUSHING R22 $36.16 1 usually ships 6-27 days
33 283-2496 BASE BUMPER WHEEL R22 $63.67 1 usually ships 6-27 days
34 283-2547 SCREW M8x16 TTQST - UNI 5732 - A2 $3.31 1 usually ships 6-27 days
35 283-2593 BASE CARTER B20 50 $558.94 1 usually ships 6-27 days
36 283-2594 BRUSH-DECK SUPPORT B20 $86.31 1 usually ships 6-27 days
37 283-2595 BRUSH FLANGE B20 $108.08 1 usually ships 6-27 days
38 283-2663 SPACER D=25 d=18.1 S=2 STAINLESS STEE $43.40 1 usually ships 6-27 days
39 283-1015 GEARMOTOR 24V 500W 140RPM THREADSHAFT $1,177.94 1 (includes 40) usually ships 6-27 days
40 283-2331 HEXAG.HOSE TAIL G1/4 THREAD.MALE $3.39 1 usually ships 6-27 days
