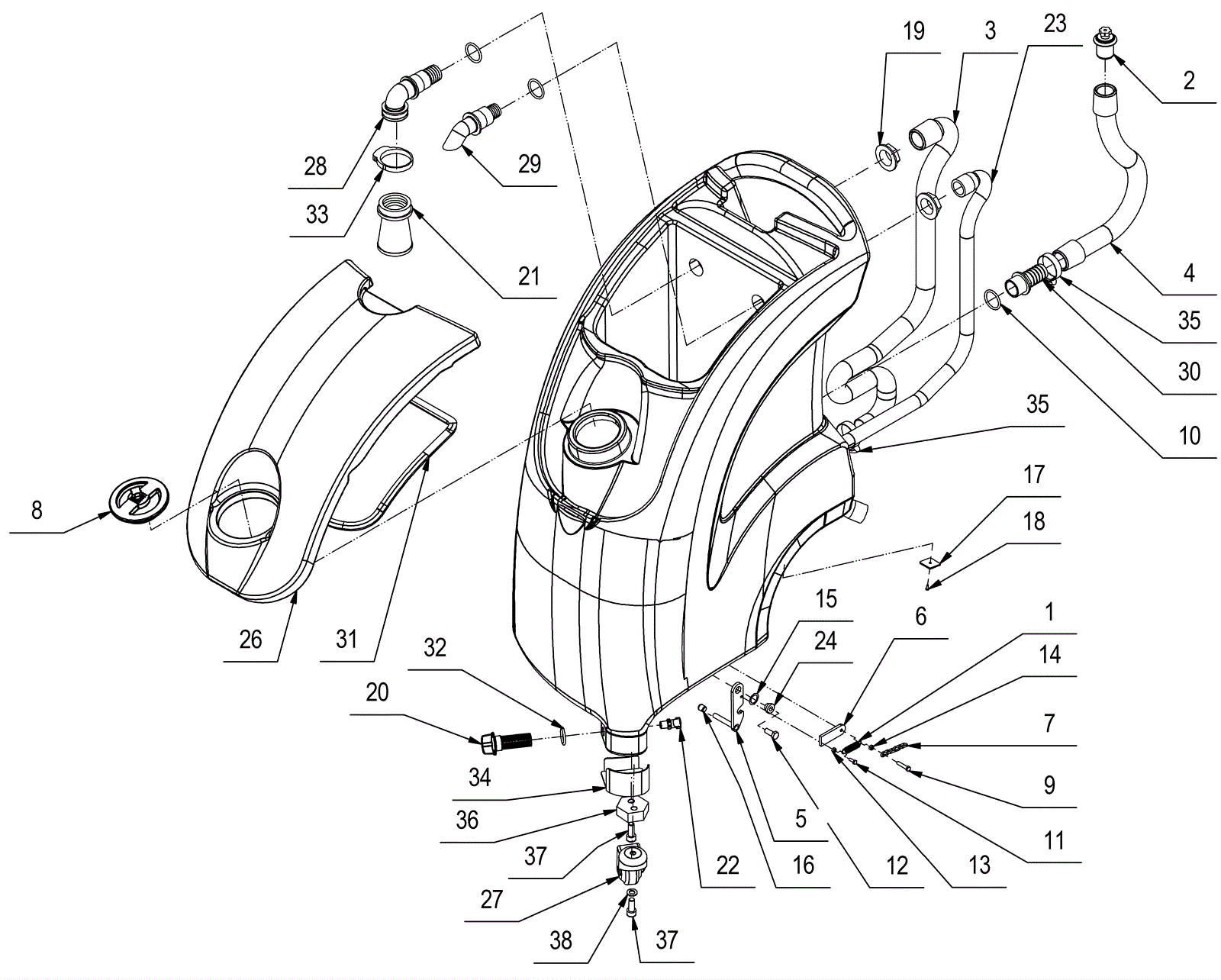

TRIDENT B16SC Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 250-1086 Spring $6.80 1 usually ships 1-5 days
2 283-1130 COMPLETE DRAIN PLUG $46.94 1 usually ships 6-27 days
3 283-1185 SUCTION HOSE D.29X1250 W/CUFF $70.34 1 usually ships 6-27 days
4 283-1187 DRAIN HOSE 29X450 W/SLEEVES $163.11 1 usually ships 6-27 days
5 283-1201 PEDAL - BASE COUPLING B16 $17.72 1 usually ships 6-27 days
6 283-1202 PEDAL LOCK - B16 $5.44 1 usually ships 6-27 days
7 283-1204 CHAIN $53.57 1 usually ships 6-27 days
8 283-1034 CAP - GENIE W/BREATHER $38.56 1 usually ships 6-27 days
9 283-1511 SCREW M5X25 UNI 5739 DIN 933 (8.8) GA $2.58 1 usually ships 6-27 days
10 283-1583 O-RING 4125 (138) D.31.34x3.53 $2.58 3 usually ships 6-27 days
11 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 1 ships same day
12 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $8.83 1 usually ships 6-27 days
13 283-1709 NUT M4X4 UNI 5587 GALV. $2.58 1 usually ships 6-27 days
14 283-1711 NUT M5 UNI 5589 GALV. LOW $2.58 1 usually ships 6-27 days
15 283-1798 SHIM RAM 16x22x0.5 DIN 988 $2.58 1 usually ships 6-27 days
16 283-1853 FEET D.8 $2.58 1 usually ships 6-27 days
17 283-1881 ADHESIVE SUPPORT PLATE $2.58 4 usually ships 6-27 days
18 283-2088 LOCK NUT 2.9X9.5 DIN 7981 GALV. $2.80 4 usually ships 6-27 days
19 283-2208 RING NUT 1 inch NYLON $5.06 2 usually ships 6-27 days
20 283-1249 PRE-ASSEMBLY SOLUTION FILTER $8.94 1 usually ships 6-27 days
21 283-2294 FILTER $66.04 1 usually ships 6-27 days
22 283-1052 SLIP CLUTCH THR.VALVE 1/4 - VISPA/GEN $67.28 1 usually ships 6-27 days
23 283-1053 REC. HOSE D.20X1600 W/SLEEVES VISPA $21.23 1 usually ships 6-27 days
24 283-2307 BUSHING 18-3X8X9.5 OT54 $14.41 1 usually ships 6-27 days
25 283-2338 TANK - B16 BLUE $986.75 1 usually ships 6-27 days
26 283-2339 COVER - TANK B16 $391.91 1 usually ships 6-27 days
27 283-2340 CASTOR WHEEL D=60 S=22 HOLE=10 $71.23 1 ships same day
28 283-2341 SUCTION HOSE FITTING B16 $7.26 1 ships same day
29 283-2342 SQUEEGEE HOSE FITTING B16 $8.45 1 usually ships 6-27 days
30 283-2343 STRAIGHT FITTING M 1 inchx30 (ARAG1032430 $8.54 1 ships same day
31 283-2344 ADHESIVE GASKET 12X14X1160 $5.39 1 usually ships 6-27 days
32 283-2359 OR 4100 SYLICON GASKET $7.21 1 usually ships 6-27 days
33 283-1969 HOSE CLAMP 55-61 HCL-X $7.03 1 usually ships 6-27 days
34 283-2720 BRACKET SUPPORT TANK WHEEL B16 $72.14 1 usually ships 6-27 days
35 283-1874 CLAMP W/SCREW 32-44 $17.34 2 usually ships 6-27 days
36 283-3167 SPACER 5° WHEEL PIV. B16 $44.64 1 usually ships 6-27 days
37 283-2069 SCREW $2.58 2 usually ships 6-27 days
38 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL $2.58 1 usually ships 6-27 days
