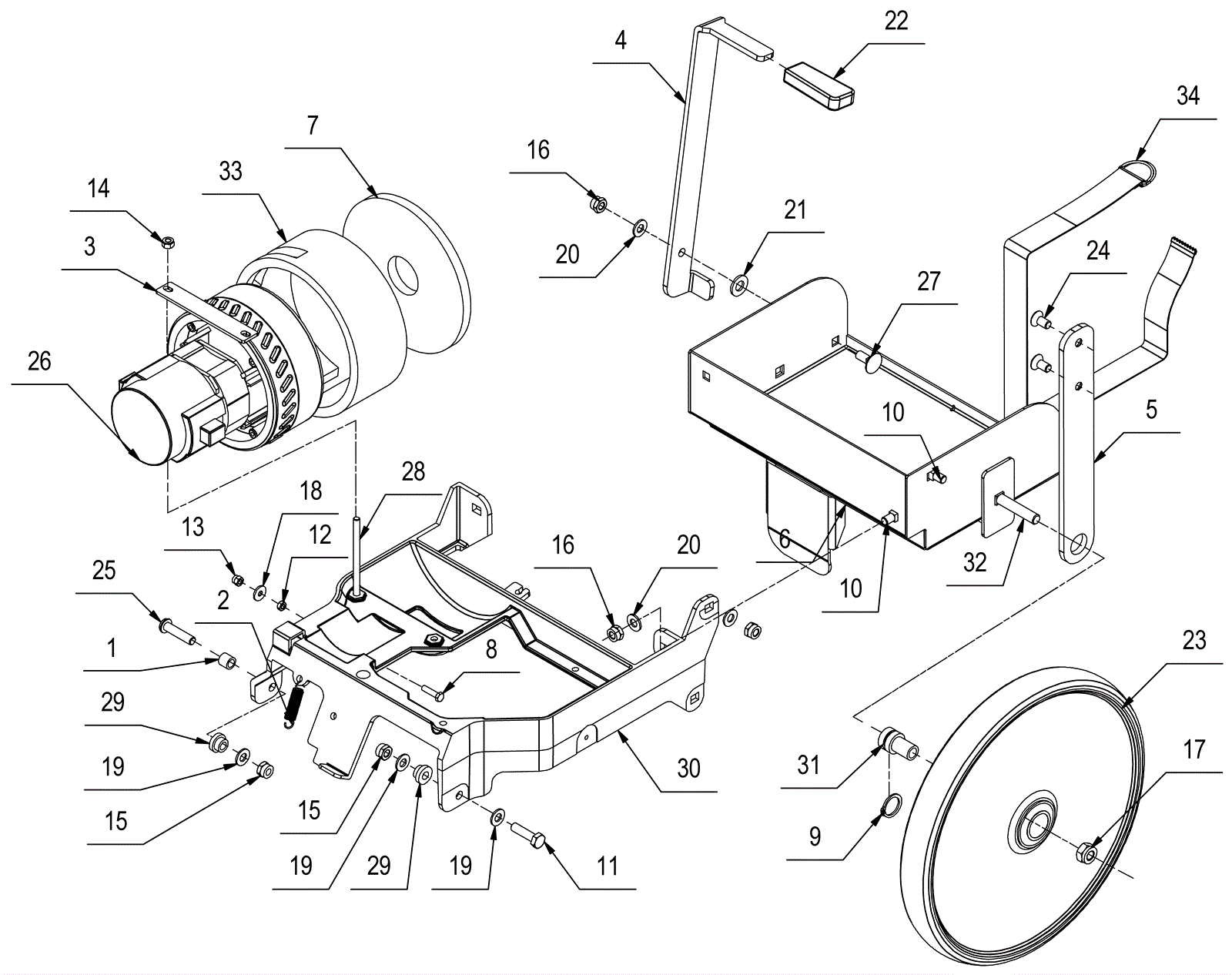

TRIDENT B16SC Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1089 SPACER 12X8.25X10.8 $34.27 1 usually ships 6-27 days
2 250-1086 Spring $6.80 1 usually ships 1-5 days
3 283-1197 SUCTION MOTOR PLATE $131.91 1 usually ships 6-27 days
4 283-1198 CONTROL BASE LEVER $67.85 1 usually ships 6-27 days
5 283-1199 LEVER - TANK ROTATION B16 $32.60 2 usually ships 6-27 days
6 283-1223 BATTERY COMPARTMENT B16 2009 $464.13 1 usually ships 6-27 days
7 283-1491 DEADENING - SUCTION MOTOR BASE $7.46 1 usually ships 6-27 days
8 283-1510 SCREW M5X20 UNI 5739 DIN 933(8.8) GAL $2.58 1 usually ships 6-27 days
9 283-1562 EXT. RING 20X1.75 UNI 7436 276AS $2.58 2 usually ships 6-27 days
10 283-1596 SCREW $2.58 4 usually ships 6-27 days
11 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $2.58 1 usually ships 6-27 days
12 283-1711 NUT M5 UNI 5589 GALV. LOW $2.58 1 usually ships 6-27 days
13 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. $2.58 1 usually ships 6-27 days
14 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $2.58 2 usually ships 6-27 days
15 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 2 usually ships 6-27 days
16 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW $2.58 5 usually ships 6-27 days
17 999-1550 Nut M10-1.5 nylon insert lock $0.99 2 usually ships 1-5 days
18 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $3.47 1 ships same day
19 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 3 usually ships 6-27 days
20 283-1776 WASHER M8 UNI 6592 ST.STEEL $2.58 5 usually ships 6-27 days
21 999-9099 Washer M10 flat stainless steel $0.99 1 ships same day
22 283-1865 RUBBER KNOB HOLE 5x20 $4.36 1 usually ships 6-27 days
23 283-1974 WHEEL D.300X32X38.5 MINIMINNY17 $83.10 2 usually ships 6-27 days
24 283-2080 SCREW 8X16 UNI 5933 GALV. $2.58 4 usually ships 6-27 days
25 283-2173 VITE M8X35 TCBCE ISO 7380 (10.9) ZINC $2.58 1 usually ships 6-27 days
26 283-1012 SUCTION MOTOR 12V 250W H593 PERIF 2S $770.15 1 usually ships 6-27 days
27 283-2279 SCREW M8X20 UNI 5732 DIN 603 SS $3.80 1 usually ships 6-27 days
28 283-2301 SCREW M6X90 TE UNI5737 DIN931 GALV $2.58 2 usually ships 6-27 days
29 283-2307 BUSHING 18-3X8X9.5 OT54 $14.41 2 usually ships 6-27 days
30 283-1060 BASE FRAME ALUMINIUM VISPA-GENIE $235.77 1 usually ships 6-27 days
31 283-2336 BUSHING D.21-14.9(10.2)X35.5 $15.23 2 usually ships 6-27 days
32 283-2349 SCREW M10X55 TTDE UNI 5732 (4.8) ZINC. $5.00 2 usually ships 6-27 days
33 283-2353 ADHESIVE DEADENING h10X460X65 $6.03 1 usually ships 6-27 days
34 283-2361 BELT L.1450X25 - BATTERY HOLDER $21.65 1 usually ships 6-27 days
