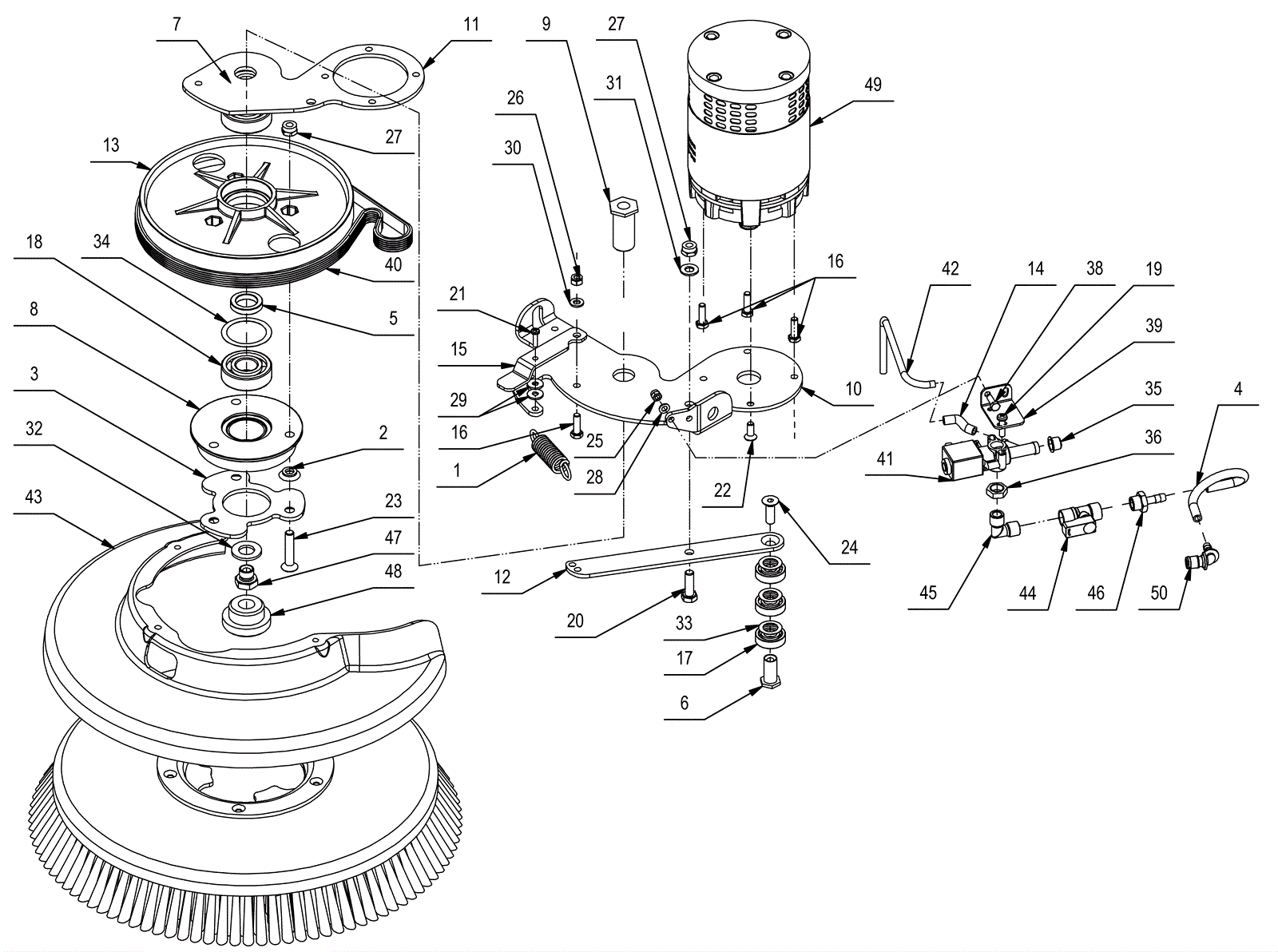

TRIDENT B16SC Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1093 EXTENSION SPRING 17.5X2.5X69 (OPEN) $10.62 1 usually ships 6-27 days
2 283-1021 BRUSH COUPLING SPACER ABILA/VISPA $6.47 3 usually ships 6-27 days
3 283-1149 BRUSH COUPLING FLANGE $14.04 1 usually ships 6-27 days
4 283-1154 HOSE D.5X250 S45E $21.99 1 usually ships 6-27 days
5 283-1169 SPACER 30x20.2x6 $36.47 1 usually ships 6-27 days
6 283-1170 BUSHING $29.21 1 usually ships 6-27 days
7 283-1171 SPACER $22.55 1 usually ships 6-27 days
8 283-1023 PULLEY FLANGE - VISPA/GENIE $145.70 1 usually ships 6-27 days
9 283-1175 PIVOT $16.32 1 usually ships 6-27 days
10 283-1025 LOWER BRUSH BASE SUPPORT VISPA-GENIE $455.36 1 usually ships 6-27 days
11 283-1186 UPPER BRUSH BASE SUPPORT VISPA $58.90 1 usually ships 6-27 days
12 283-1026 BELT STRETCHER VISPA-GENIE $18.67 1 usually ships 6-27 days
13 283-1188 PULLEY $3.64 1 usually ships 6-27 days
14 283-1190 TRANSPARENT HOSE 8X5X30 $175.72 1 usually ships 6-27 days
15 283-1224 SUPPORT BASE B16 2009 $13.53 1 usually ships 6-27 days
16 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $2.58 4 usually ships 6-27 days
17 283-1568 BEARING 6001-2RS1 $24.00 3 usually ships 6-27 days
18 283-1573 BALL BEARING 6204-2RS1 $30.44 2 usually ships 6-27 days
19 283-1584 SCREW 5X20 UNI7687 GALV $2.58 2 usually ships 6-27 days
20 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G $3.03 1 usually ships 6-27 days
21 283-1665 SCREW 4X16 UNI 7687 GALV. $2.58 1 usually ships 6-27 days
22 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $2.58 1 usually ships 6-27 days
23 283-1706 SCREW M8X40 UNI 5933 (10.9) GALV. $3.03 3 usually ships 6-27 days
24 283-1707 SCREW M8x25 UNI 5933 DIN 7991(10.9) G $2.58 1 usually ships 6-27 days
25 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. $2.58 2 usually ships 6-27 days
26 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $2.58 1 usually ships 6-27 days
27 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 4 usually ships 6-27 days
28 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
29 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $3.47 2 ships same day
30 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. $2.58 1 usually ships 6-27 days
31 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 1 usually ships 6-27 days
32 283-1792 ROSE $2.82 1 usually ships 6-27 days
33 283-1797 SHIM 14X22X0.3 DIN 988 $2.58 3 usually ships 6-27 days
34 283-1809 SHIM 37X47X0.3 DIN 998 $2.58 1 usually ships 6-27 days
35 283-1850 Solenoid Cap $2.58 1 usually ships 6-27 days
36 283-1903 SPECIAL NUT 1/4 inch GAS 17X5 $2.58 1 usually ships 6-27 days
37 283-2073 SCREW M4X10 UNIT7687 ST.STEEL $2.58 2 usually ships 6-27 days
38 283-2139 SCREW M5X14 TE UNI 5739 DIN 933 ZINC $2.58 2 usually ships 6-27 days
39 283-2266 SUPPORT $8.83 1 usually ships 6-27 days
40 283-1049 POLY BELT PJ769/303 J6 - VISPA/GENIE $244.77 1 usually ships 6-27 days
41 283-2284 SOLENOID VALVE 12V CC D150PS75/3/300 $137.03 1 usually ships 6-27 days
42 283-2293 TUBE $39.25 1 usually ships 6-27 days
43 283-2302 FENDER $128.51 1 usually ships 6-27 days
44 283-2308 WATER VALVE 1/4 F-F L= 38 W/LEVER $39.23 1 usually ships 6-27 days
45 283-2309 ELBOW FITTING 1/4 M.M. BRASS NICH. $11.14 1 usually ships 6-27 days
46 283-2310 FITTING HOSE 1/4x7 BRASS NICH. $7.48 1 usually ships 6-27 days
47 283-2311 JOINT $7.63 1 usually ships 6-27 days
48 283-2313 BUSHING $12.04 1 usually ships 6-27 days
49 283-1013 MOTOR 12V 360W 2300 RPM 30A IP20 $926.92 1 usually ships 6-27 days
50 283-2345 SLIP CLUTCH M.1/4 inch 90° $11.20 1 usually ships 6-27 days
