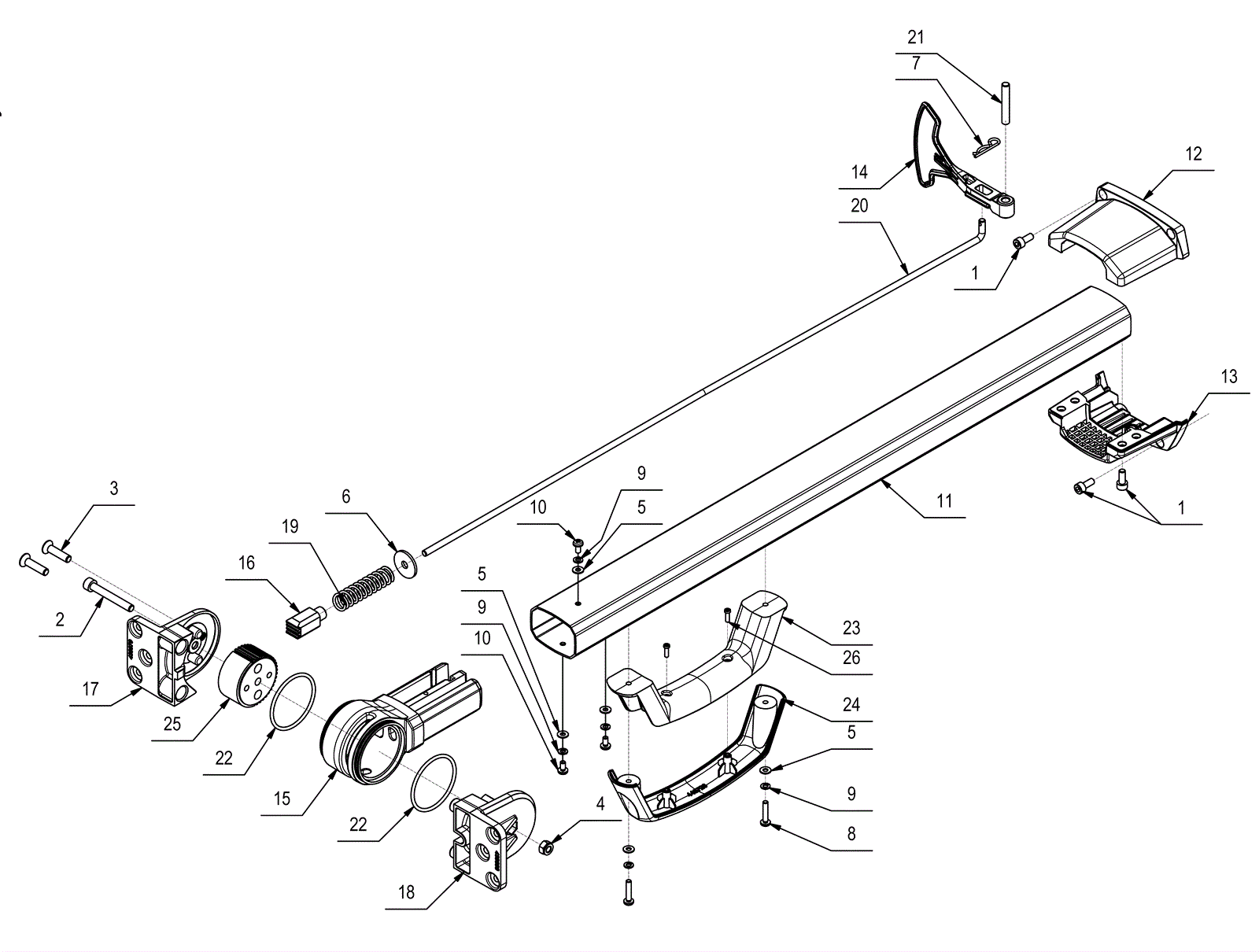

TRIDENT XM13SC Steering Column Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1645 SCREW $4.88 8 usually ships 6-27 days
2 283-1654 SCREW $4.80 1 usually ships 6-27 days
3 283-1702 SCREW M6X25 UNI 5933 DIN 7991 ST.STEE $4.58 2 usually ships 6-27 days
4 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $4.58 1 usually ships 6-27 days
5 283-1753 WASHER M4 UNI 6592 GALV. $2.84 5 usually ships 6-27 days
6 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL $4.58 1 usually ships 6-27 days
7 283-1819 PIN D.1.8 $4.58 1 usually ships 6-27 days
8 283-2072 SCREW M4X20 TCT UNI 7687 ZINC. $3.10 2 usually ships 6-27 days
9 283-2104 WASHER M4 UNI 1751 GALV. GROWER $2.93 5 usually ships 6-27 days
10 283-2346 SCREW M4X8 TCTC UNI 7687 ZINC. $2.93 3 usually ships 6-27 days
11 283-2737 COMPLETE HANDLE HOSE XM13 $61.14 1 usually ships 6-27 days
12 283-2796 PADDLE FRONT PART $9.08 1 usually ships 6-27 days
13 283-2797 PADDLE REAR PART $2.93 1 usually ships 6-27 days
14 283-2798 PADDLE LEVER $38.67 1 usually ships 6-27 days
15 283-2806 JUNCTION ROTATION PART XM13 $58.37 1 usually ships 6-27 days
16 283-2807 JUNCTION LOCK PIN XM13 $15.52 1 usually ships 6-27 days
17 283-2808 JUNCTION RACK PART $41.68 1 usually ships 6-27 days
18 283-2809 UPPER JUNCTION - OUTER PART $40.77 1 usually ships 6-27 days
19 283-2840 SPRING 15x2x57 $3.54 1 usually ships 6-27 days
20 283-2861 HANDLE ROD RELEASE XM13 $52.27 1 usually ships 6-27 days
21 283-2863 PIVOT LEVER XM13 $6.82 1 usually ships 6-27 days
22 283-2864 GASKET OR 3181 $2.93 2 usually ships 6-27 days
23 283-2879 LIFTING LEVER PART.01 $5.50 1 usually ships 6-27 days
24 283-2880 LIFTING LEVER PART.02 $5.54 1 usually ships 6-27 days
25 283-2887 JOINT CROWN XM13 $72.96 1 usually ships 6-27 days
26 283-2888 SCREW UNI 9707-Pz-TZ D.3 x 10 ZINC $2.93 2 usually ships 6-27 days
