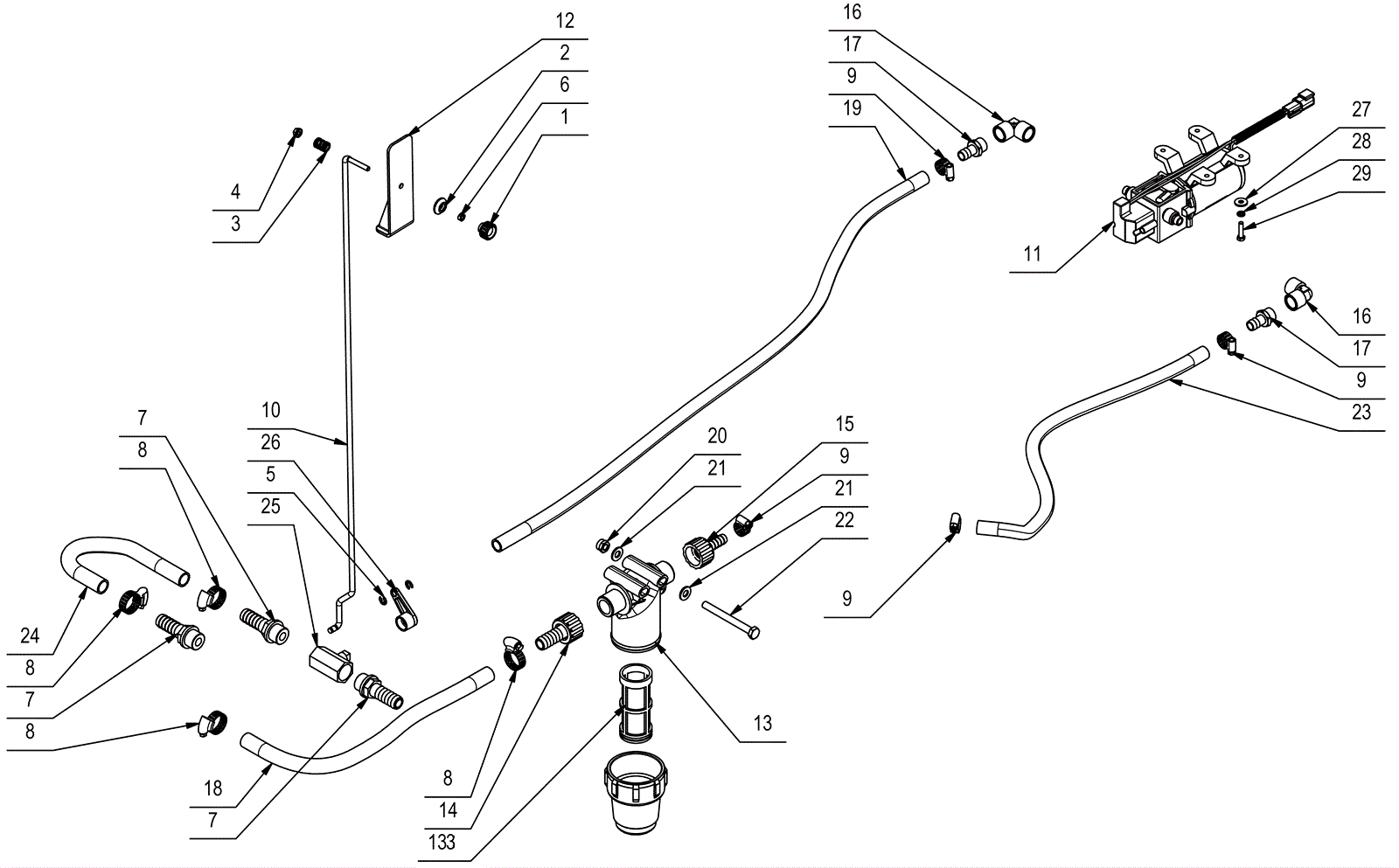

TRIDENT R36SC PLUS Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1859 HANDWHEEL VZB-18 M5 $7.58 1 usually ships 6-27 days
2 283-1448 SPECIAL WASHER D.5X20 $4.16 1 ships same day
3 283-1539 SPRING 12X1.5X15 - BRUSH CONTROL $3.86 1 usually ships 6-27 days
4 283-1746 NUT M5 DIN 6923 $2.58 1 usually ships 6-27 days
5 283-2042 RING EL.RAD.5 DIN 6799 $3.12 2 usually ships 6-27 days
6 283-1711 NUT M5 UNI 5589 GALV. LOW $2.58 1 usually ships 6-27 days
7 283-1889 MALE STRAIGHT HOSE BARB 1/2 inch-16 $8.45 3 usually ships 6-27 days
8 283-2124 JUBILEE CLIP 15/24 $13.45 4 usually ships 6-27 days
9 283-1875 CLAMP W/SCREW 11/17 ABA $5.21 4 usually ships 6-27 days
13a 283-1481 FILTER 3/4 M.M. 50 MESH $60.85 1 usually ships 6-27 days
14 283-1892 HANDS RUBBER $8.40 1 usually ships 6-27 days
15 283-1895 STRAIGHT HOSE TAIL 3/4 inch D.12 + F.NUT $9.32 1 usually ships 6-27 days
16 283-2400 ELBOW FITTING  3/8 inch BRASS NICKEL $23.51 2 usually ships 6-27 days
17 283-2270 STRAIGHT FITTING 3/8X13 BRASS $7.18 2 usually ships 6-27 days
18 283-1083 PVC PIPE D.14X365 $188.58 1 usually ships 6-27 days
19 283-1155 SUCTION HOSE DIAM. 12X930 $5.09 1 usually ships 6-27 days
20 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 2 usually ships 6-27 days
21 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 4 usually ships 6-27 days
22 283-1626 SCREW $2.58 2 usually ships 6-27 days
24 283-1081 HOSE W/SPIRAL D.14X250 - BASE G4 $46.61 1 usually ships 6-27 days
25 283-1883 WATER VALVE BODY 1/2' F.F. $71.93 1 usually ships 6-27 days
26 283-1465 SHORT WATER VALVE LEVER $5.43 1 ships same day
27 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $3.47 4 ships same day
28 283-1763 WASHER 5X1.6X1.6 GROWER DIN 7980 GALV $2.58 4 usually ships 6-27 days
29 283-1510 SCREW M5X20 UNI 5739 DIN 933(8.8) GAL $2.58 4 usually ships 6-27 days
