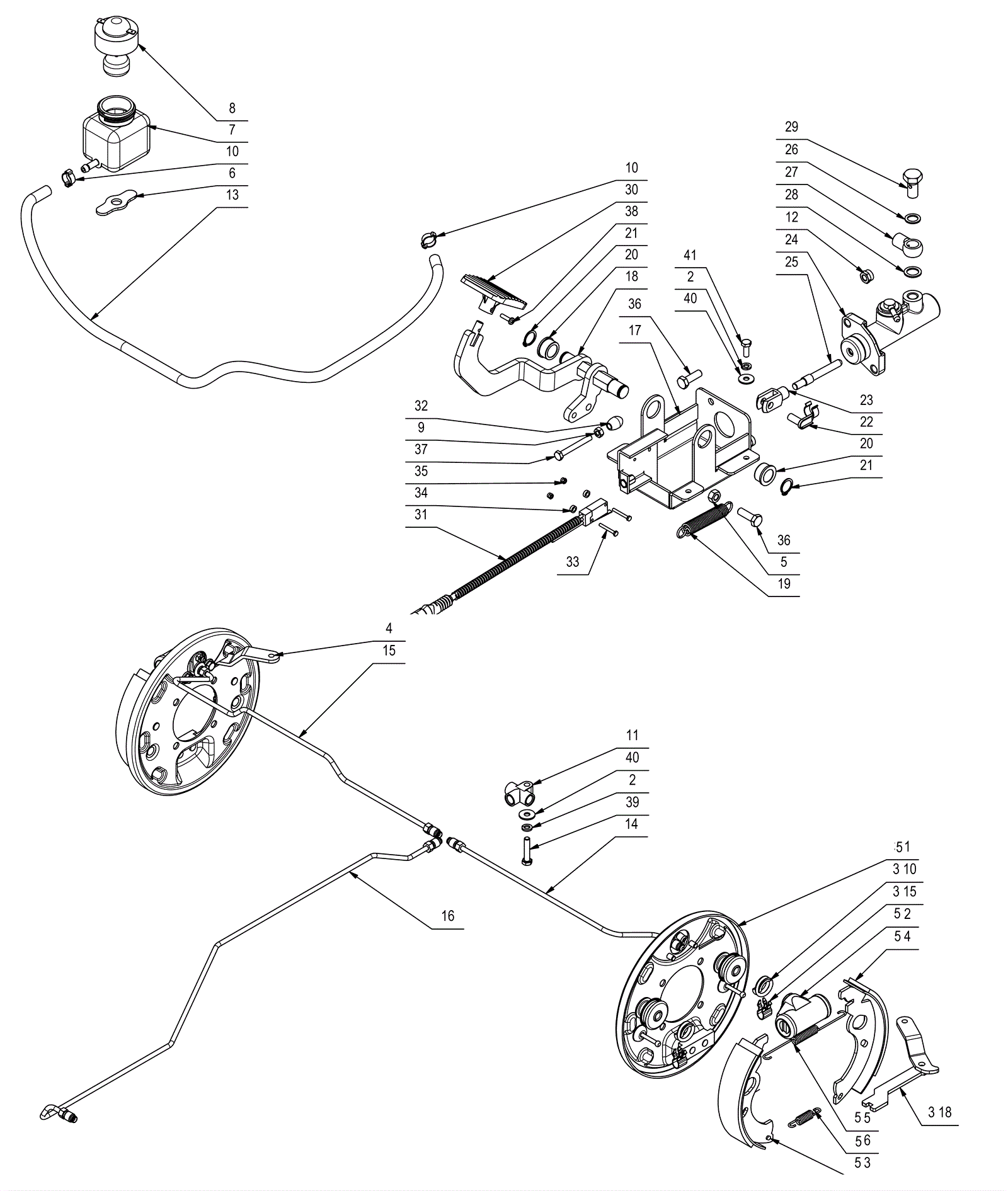

TRIDENT R36SC PLUS Rear Brake Assembly

#PartDescriptionPriceReqNotesAvailability
2 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $3.47 5 usually ships 6-27 days
3 283-1911 BRAKE GROUP DIAM.180 LEFT $360.62 1 usually ships 6-27 days
4 283-1910 BRAKE GROUP DIAM.180 RIGHT $360.62 1 usually ships 6-27 days
5 283-1718 NUT M8X6.5 UNI 5588 GALV. $2.58 1 usually ships 6-27 days
6 283-1041 RUBBER GASKET - OIL CHAMBER MAGNA $3.40 1 usually ships 6-27 days
7 283-1912 TANK $41.63 1 usually ships 6-27 days
8 283-1913 CORK $50.87 1 usually ships 6-27 days
9 283-1713 NUT M6 UNI 5588 DIN 934 GALV. $2.58 1 usually ships 6-27 days
10 283-2125 RING $2.72 2 usually ships 6-27 days
11 283-1916 LINK $27.64 1 usually ships 6-27 days
12 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 2 usually ships 6-27 days
19 283-1094 EXTENSION SPRING 15X2X84 $114.93 1 usually ships 6-27 days
20 283-1530 BUSHING $6.03 2 usually ships 6-27 days
21 283-1558 SEEGER E 16 X1 DIN 471 $2.58 2 usually ships 6-27 days
22 283-1907 PIN - FORK M8 SHORT $3.40 1 usually ships 6-27 days
23 283-1904 FORK M8 UNI 1676 SHORT $8.83 1 usually ships 6-27 days
24 283-2317 BRAKE PUMP - S1200 $120.09 1 usually ships 6-27 days
25 283-1104 ROD $5.09 1 usually ships 6-27 days
26 283-1918 COPPER GASKET 12x18x1.5 $2.58 1 usually ships 6-27 days
27 283-1915 LINK $33.65 1 usually ships 6-27 days
28 283-1917 COPPER GASKET 14x20x1.5 $2.58 1 usually ships 6-27 days
29 283-1914 LINK $13.21 1 usually ships 6-27 days
32 283-1852 BARREL FEET D.6 $2.58 1 usually ships 6-27 days
33 283-1599 SCREW M3X25 TE UNI 5739 INOX $2.58 2 usually ships 6-27 days
34 283-1758 WASHER 4x8x3 NYLON $2.58 2 usually ships 6-27 days
35 283-1727 LOCK NUT M3 UNI 7474 DIN 985 GALV. $2.58 2 usually ships 6-27 days
36 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G $3.03 3 usually ships 6-27 days
37 283-1608 SCREW 6X50 UNI 5739 GALV. $3.86 1 usually ships 6-27 days
38 283-1665 SCREW 4X16 UNI 7687 GALV. $2.58 1 usually ships 6-27 days
39 283-1611 SCREW M6X30 UNI 5739 DIN 933 (8.8)GAL $2.72 1 usually ships 6-27 days
40 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $2.58 5 usually ships 6-27 days
41 283-1515 SCREW M6X16 UNI 5739 DIN 933 GALV. $2.58 4 usually ships 6-27 days
