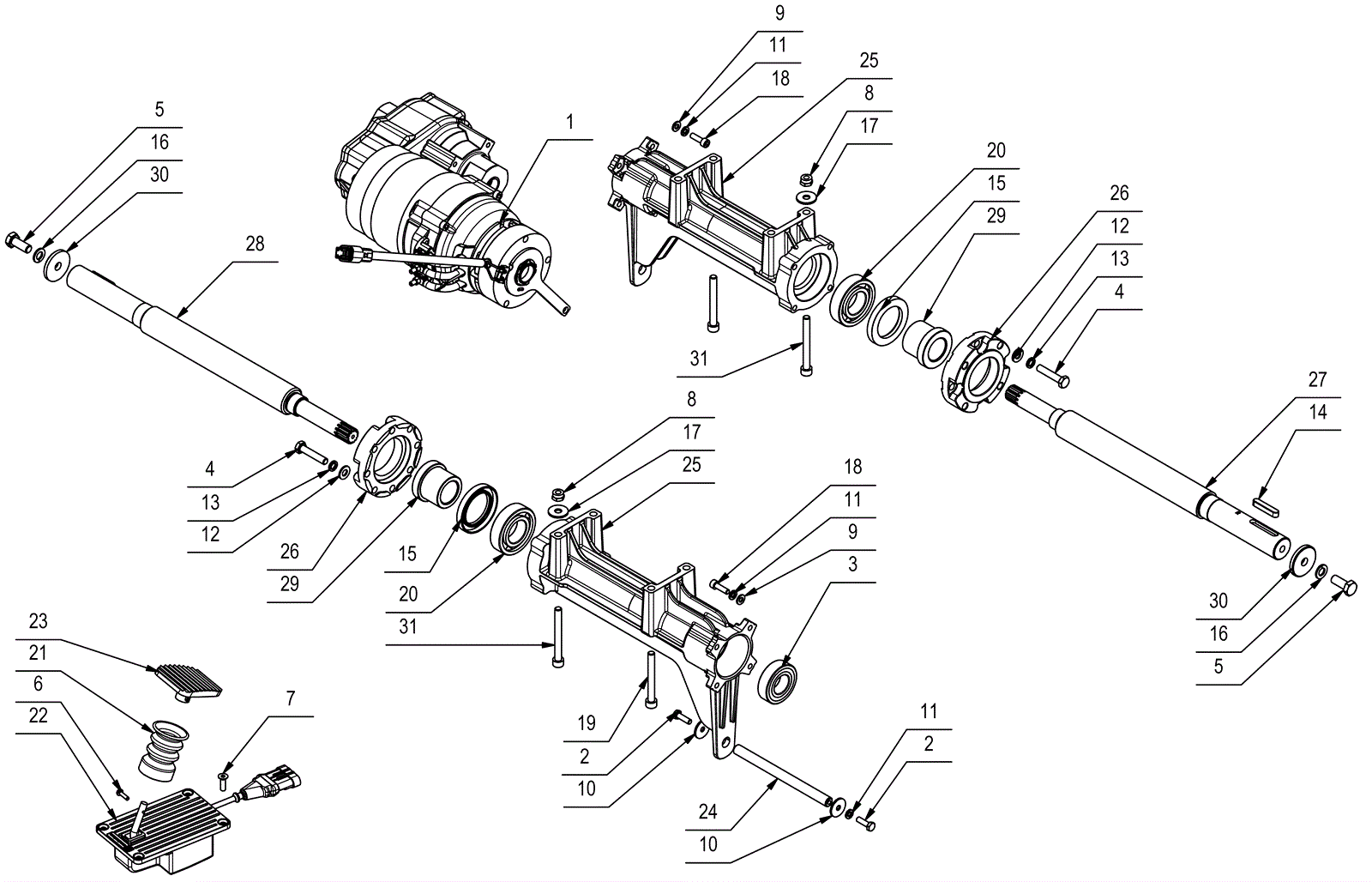

TRIDENT R36SC PLUS Traction Engine Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1361 MOTOREDUCTOR 36V AC 900W+CONN $2,843.81 1 usually ships 6-27 days
2 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $2.58 2 usually ships 6-27 days
3 283-1574 BALL BEARING 6205-2RS(25X52X15) $57.04 2 usually ships 6-27 days
4 283-1620 SCREW M8X40 UNI 5739 (8.8) GALV. $2.58 8 usually ships 6-27 days
5 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. $2.58 2 usually ships 6-27 days
6 283-1665 SCREW 4X16 UNI 7687 GALV. $2.58 1 usually ships 6-27 days
7 283-1700 SCREW 6X20 UNI 5933 A2 $3.47 3 usually ships 6-27 days
8 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 4 usually ships 6-27 days
9 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. $2.58 8 usually ships 6-27 days
10 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL $3.47 2 usually ships 6-27 days
11 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $3.47 10 usually ships 6-27 days
12 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 8 usually ships 6-27 days
13 283-1779 WASHER 8X13X2.2 GROWER GALV. $3.47 16 usually ships 6-27 days
14 283-2043 KEY $8.20 2 usually ships 6-27 days
15 283-2050 OIL SEAL 42X62X8 $19.77 2 usually ships 6-27 days
16 283-2102 ROSE $2.58 2 usually ships 6-27 days
17 283-2233 WASHER D.8x24 ZNT $2.72 4 usually ships 6-27 days
19 283-2254 SOCKET HEAD SCREW M8x65 ZNT $2.78 4 usually ships 6-27 days
20 283-2289 BEARING $61.31 2 usually ships 6-27 days
24 283-3088 PIN D=12 L=158 $72.75 1 usually ships 6-27 days
