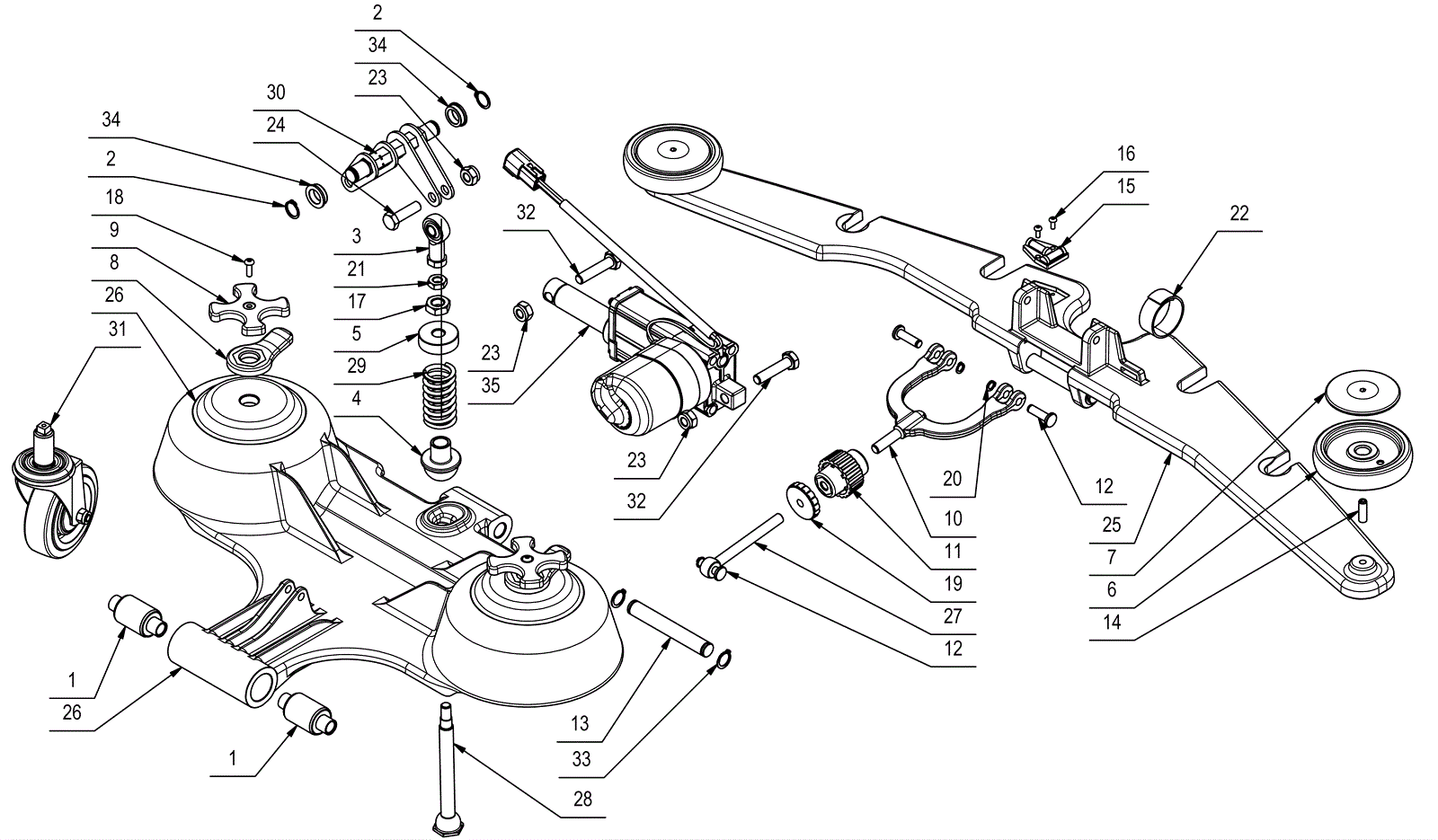

TRIDENT R36SC PLUS Squeegee Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-3011 BUSH SILENTBLOCK D=30 d=12 L=40 l=67 $143.40 2 usually ships 6-27 days
2 283-1558 SEEGER E 16 X1 DIN 471 $2.58 2 usually ships 6-27 days
3 283-1579 ARTICULATED HEAD D.10X14 M10 DIN468K $54.56 1 usually ships 6-27 days
4 283-3017 SPRING WIPER BUSH R28/30 2016 $61.31 1 usually ships 6-27 days
5 283-3015 HANDWHEEL D=40 M14x2 - A2 $64.26 1 usually ships 6-27 days
6 283-2496 BASE BUMPER WHEEL R22 $40.66 2 usually ships 6-27 days
7 283-2495 BASE WHEEL BUSHING R22 $20.51 2 usually ships 6-27 days
8 283-3022 WHEEL BLOCK LEVER $10.04 2 usually ships 6-27 days
9 283-3024 WHEEL CONTROL HANDLE $2.58 2 usually ships 6-27 days
10 283-3010 SQUEEGEE CONTROL BRACKET $27.17 1 usually ships 6-27 days
11 283-3013 SQUEEGEE CONTROL HANDLE $29.44 1 usually ships 6-27 days
12 283-3012 PIN $13.28 3 usually ships 6-27 days
13 283-3018 PIN D=15 L=108 OT58 $50.48 1 usually ships 6-27 days
14 283-1690 DOWEL M8X25 UNI 5923 ST.STEEL $3.60 2 usually ships 6-27 days
15 283-3049 DOUBLE BUBBLE LEVEL $5.00 1 usually ships 6-27 days
16 283-2305 SCREW 4X10 ISO 7380 A2 TCBEI $2.58 2 usually ships 6-27 days
17 283-2094 Nut M4X2 UNI 5589 ZINC. $2.72 1 usually ships 6-27 days
18 283-2083 SCREW 5X16 ISO 7380 A2 TCBEI $2.58 2 usually ships 6-27 days
19 283-3092 VALVE V-40 PS M10 - RAL 1021 $18.67 1 usually ships 6-27 days
20 283-1555 SEEGER RING (NS13) $2.72 3 usually ships 6-27 days
21 283-1725 NUT M10 UNI5589 GALV. LOW $2.58 1 usually ships 6-27 days
22 283-3098 VELCRO FASTENING $5.00 1 usually ships 6-27 days
23 999-1550 Nut M10-1.5 nylon insert lock $0.99 3 usually ships 1-5 days
24 283-1640 SCREW M10X35 UNI 5737 DIN 931 (8.8) $2.72 1 usually ships 6-27 days
30 283-3191 SQUEEGEE LEVER $69.17 1 usually ships 6-27 days
32 283-1639 SCREW 10X45 PART.THR. UNI 5737 GALV. $2.72 2 usually ships 6-27 days
33 250-1068 Seeger ring $2.16 2 usually ships 1-5 days
34 283-1536 BUSHING $11.69 2 usually ships 6-27 days
35 283-1372 ACTUATOR 24V C60 F500N V32+ CONN. AMP $2,390.48 1 usually ships 6-27 days
