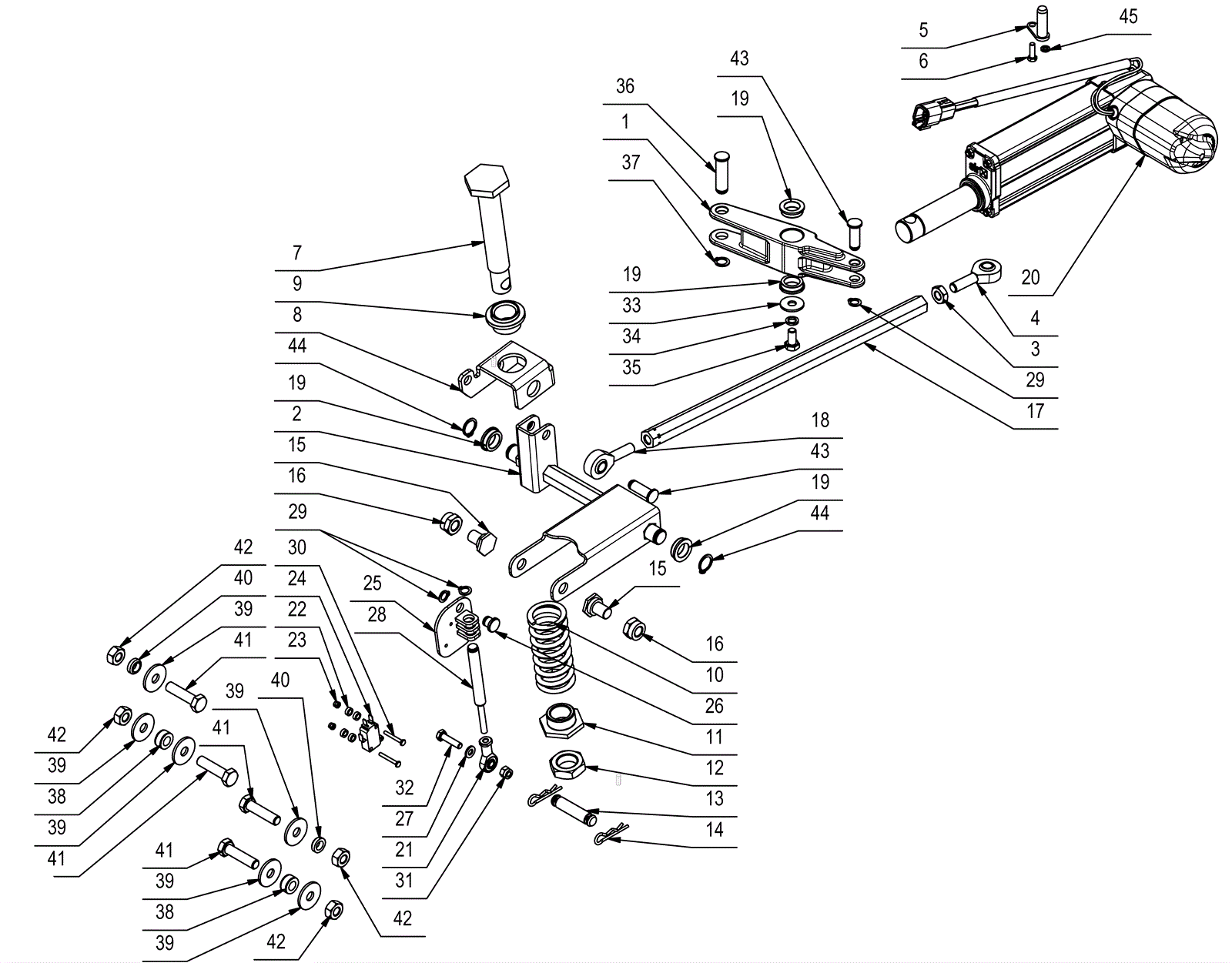

TRIDENT R36SC PLUS Brush Control Assembly

#PartDescriptionPriceReqNotesAvailability
3 283-1725 NUT M10 UNI5589 GALV. LOW $2.58 1 usually ships 6-27 days
4 283-1580 HEAD $105.03 1 usually ships 6-27 days
6 283-1508 SCREW M5X16 UNI 5739 DIN 933 (8.8) GA $2.58 1 usually ships 6-27 days
14 283-1818 PIN $2.58 2 usually ships 6-27 days
16 283-1741 NUT M12 UNI7474-DIN985 8 ZN AUT LOW $2.72 2 usually ships 6-27 days
18 283-1581 HEAD $105.03 1 usually ships 6-27 days
19 283-1536 BUSHING $11.69 4 usually ships 6-27 days
20 283-1374 ACTUATOR 24V C60 F500N V32+ CONN. AMP $2,390.48 1 usually ships 6-27 days
22 283-1758 WASHER 4x8x3 NYLON $2.58 4 usually ships 6-27 days
23 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL $2.58 2 usually ships 6-27 days
24 283-1820 MICROSWITCH 10A 3X22 $14.71 1 usually ships 6-27 days
27 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. $2.58 1 usually ships 6-27 days
29 283-1556 SEEGER E 10 $2.58 4 usually ships 6-27 days
30 283-1599 SCREW M3X25 TE UNI 5739 INOX $2.58 2 usually ships 6-27 days
31 283-2276 M6 AUTOLOCK. NUT UNI 7473 ZINC. $2.72 1 usually ships 6-27 days
32 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA $2.58 1 usually ships 6-27 days
33 283-2233 WASHER D.8x24 ZNT $2.72 1 usually ships 6-27 days
34 283-1779 WASHER 8X13X2.2 GROWER GALV. $3.47 1 usually ships 6-27 days
35 283-1613 SCREW M8X16 UNI 5739 DIN 933 (8.8) GA $2.58 1 usually ships 6-27 days
37 283-1557 SEEGER E 12 $3.86 1 usually ships 6-27 days
38 283-1948 BUSHING $10.02 2 usually ships 6-27 days
39 283-2736 WASHER 10X30X2.5 UNI 6593 $7.26 6 usually ships 6-27 days
40 283-1147 SPACER $13.24 2 usually ships 6-27 days
41 283-1642 SCREW M10X40 UNI 5737 DIN 931 (8.8) $9.72 4 usually ships 6-27 days
42 283-2092 NUT M10 UNI 5588-65 ZINC. MIDDLE $2.58 4 usually ships 6-27 days
44 283-1558 SEEGER E 16 X1 DIN 471 $2.58 2 usually ships 6-27 days
45 283-1763 WASHER 5X1.6X1.6 GROWER DIN 7980 GALV $2.58 1 usually ships 6-27 days
