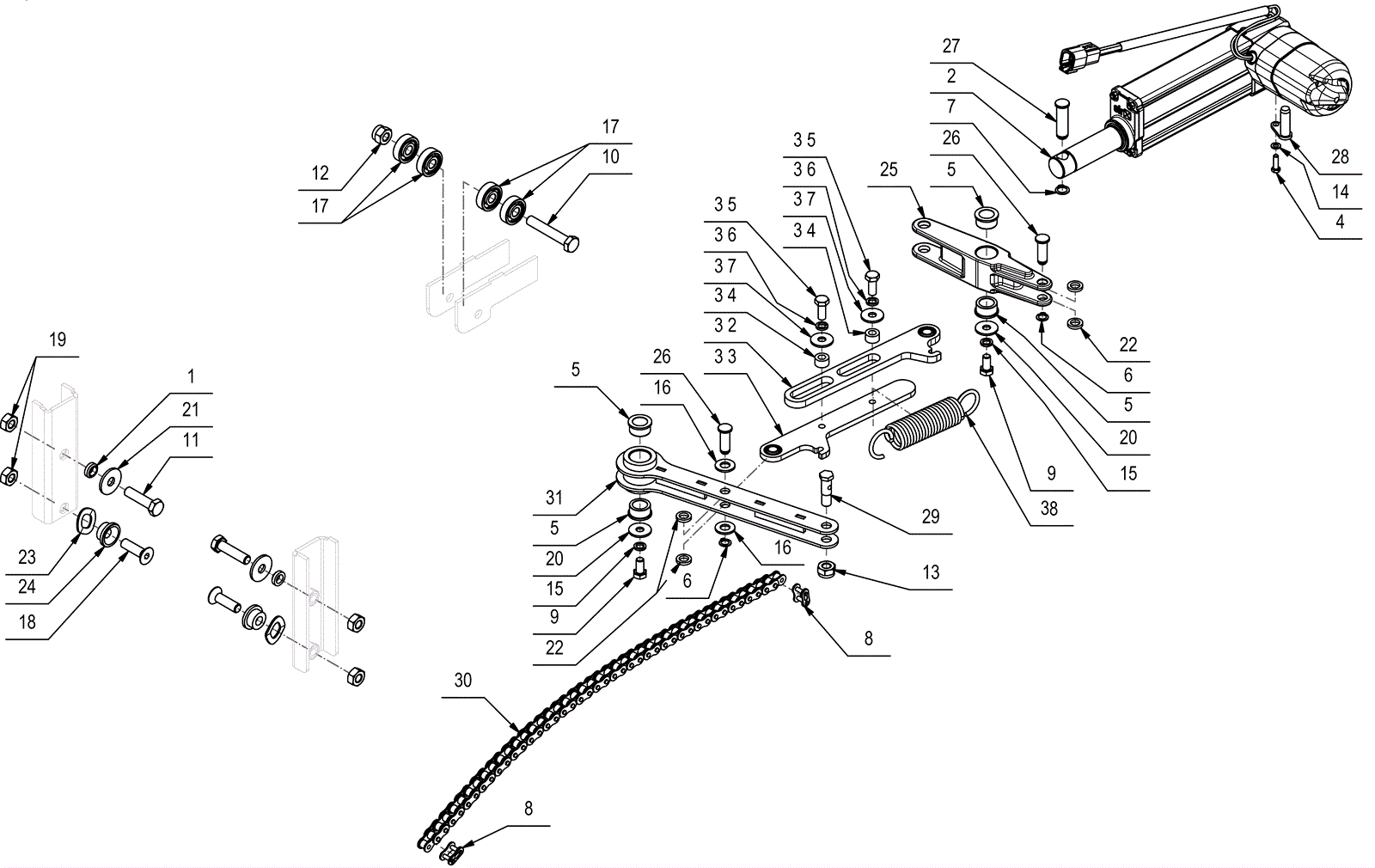

TRIDENT R36SS PLUS Brush Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1147 SPACER $14.56 1 usually ships 6-27 days
2 283-1374 ACTUATOR 24V C60 F500N V32+ CONN. AMP $2,629.53 1 usually ships 6-27 days
4 283-1508 SCREW M5X16 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 6-27 days
5 283-1530 BUSHING $10.60 4 usually ships 6-27 days
6 283-1556 SEEGER E 10 $4.58 2 usually ships 6-27 days
7 283-1557 SEEGER E 12 $5.69 1 usually ships 6-27 days
9 283-1613 SCREW M8X16 UNI 5739 DIN 933 (8.8) GA $4.58 2 usually ships 6-27 days
11 283-1642 SCREW M10X40 UNI 5737 DIN 931 (8.8) $10.69 2 usually ships 6-27 days
13 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
14 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
15 283-1779 WASHER 8X13X2.2 GROWER GALV. $4.58 2 usually ships 6-27 days
16 283-1784 WASHER M10 INOX UNI 6592 $4.58 2 usually ships 6-27 days
17 283-1963 BALL BEARING 6200-2RS1 $26.07 4 usually ships 6-27 days
18 283-2081 SCREW $9.21 2 usually ships 6-27 days
19 283-2092 NUT M10 UNI 5588-65 ZINC. MIDDLE $2.84 4 usually ships 6-27 days
20 283-2233 WASHER D.8x24 ZNT $2.99 2 usually ships 6-27 days
21 283-2736 WASHER 10X30X2.5 UNI 6593 $7.99 2 usually ships 6-27 days
22 283-2943 BUSHING $10.80 4 usually ships 6-27 days
23 283-2998 WASHER UNI 8840 - B - 14 $5.98 2 usually ships 6-27 days
24 283-3084 BUSHING D=27-20 d=10,1 L=12 S=8,5 SVAS. $80.03 2 usually ships 6-27 days
35 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $15.55 2 usually ships 6-27 days
36 283-1779 WASHER 8X13X2.2 GROWER GALV. $4.58 2 usually ships 6-27 days
37 283-2233 WASHER D.8x24 ZNT $2.99 2 usually ships 6-27 days
