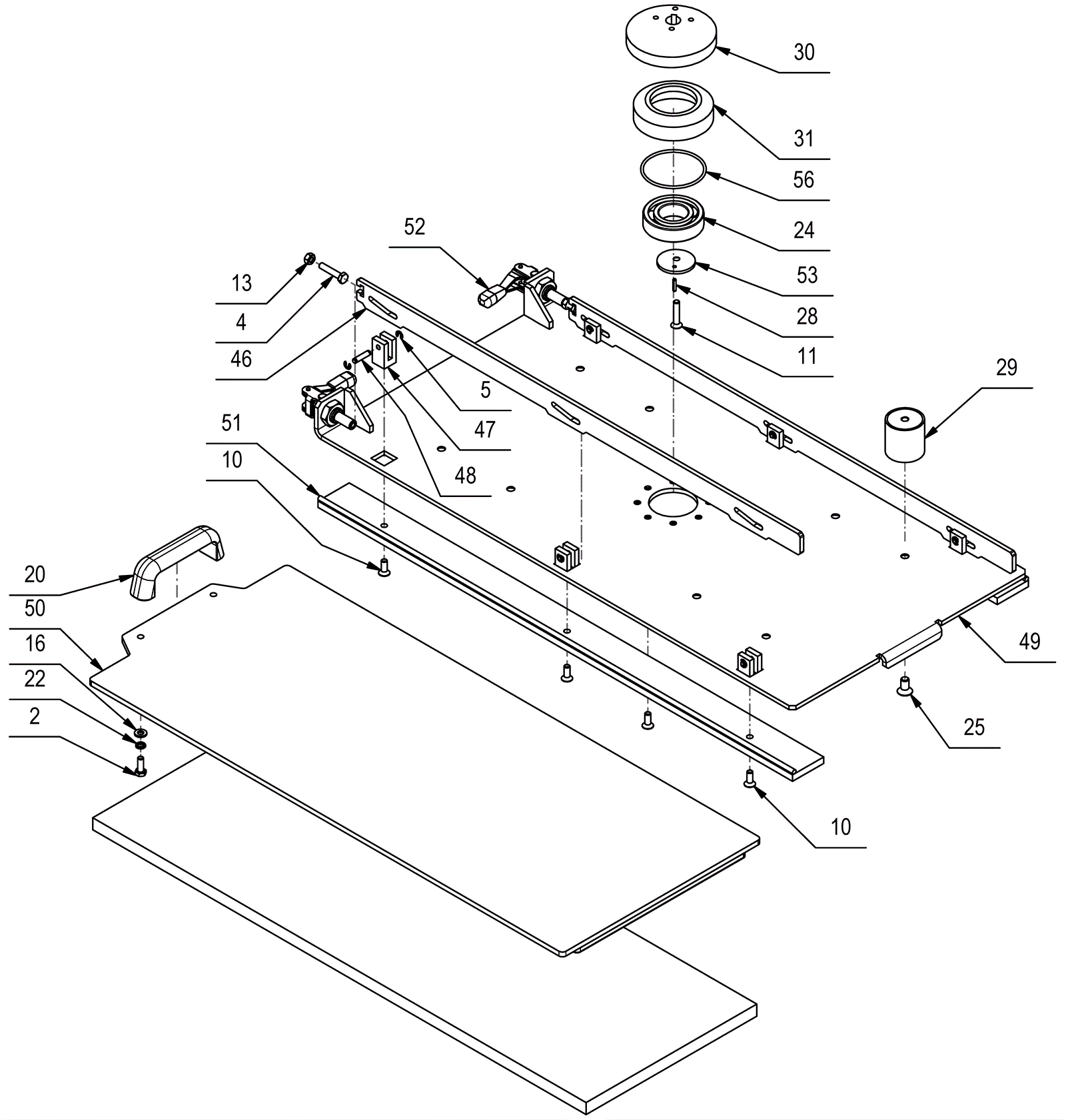

TRIDENT R28SC PLUS Base Assembly - Part 1

#PartDescriptionPriceReqNotesAvailability
2 283-1516 SCREW 6X16 UNI 5739 A2 $2.58 2 usually ships 6-27 days
4 283-1522 SCREW 6X30 UNI 5739 A2 TE $2.58 2 usually ships 6-27 days
5 283-1563 SEEGER RING RS 4 DIN 6799 $2.58 12 usually ships 6-27 days
10 283-1701 SCREW M6X16 UNI5933 FLATH HEX.SOCKET $2.58 18 usually ships 6-27 days
11 283-1703 SCREW 6X30 UNI 5933 A2 TSPEI $2.58 1 usually ships 6-27 days
13 250-1276 Nut $2.16 2 usually ships 11-24 days
16 283-1766 WASHER M6 UNI 6592 ST.STEEL $3.47 4 usually ships 6-27 days
20 283-1867 HANDLE MT105 M6 $14.81 1 usually ships 6-27 days
22 283-2106 washer M6 UNI 1751 INOX GROWER $1.68 4 usually ships 6-27 days
24 283-2289 BEARING $61.31 1 usually ships 6-27 days
28 283-2682 SPRING PLUG 3X14 UNI 28740 $6.06 1 usually ships 6-27 days
29 283-2991 ANTIVIBRATION D=40x40 - 45Sh $29.28 14 usually ships 6-27 days
30 283-2992 FLANGE $100.15 1 usually ships 6-27 days
31 283-2993 FLANGE $92.43 1 usually ships 6-27 days
56 283-2367 GASKET OR D.61.60 X 2.62 $10.30 1 usually ships 6-27 days
