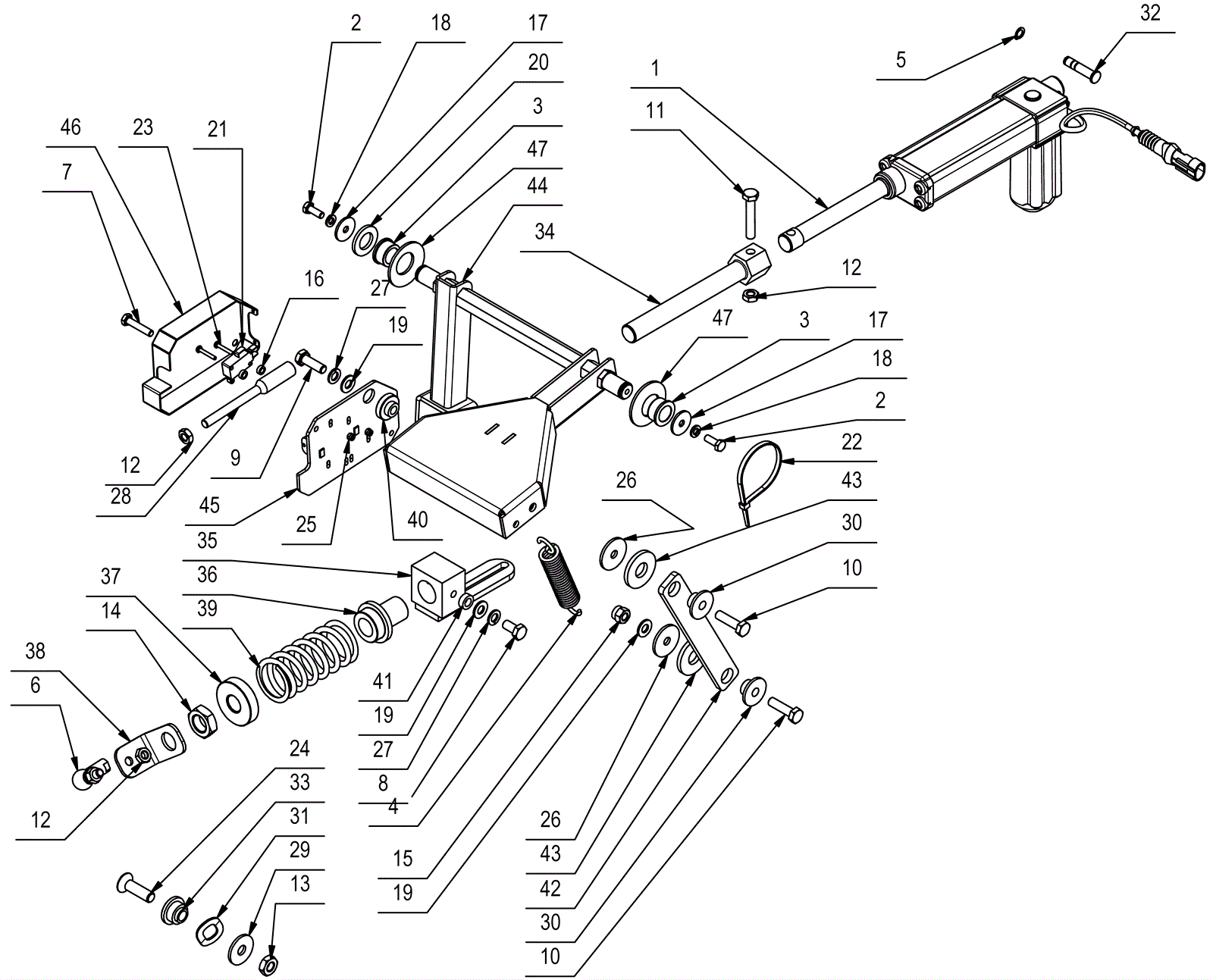

TRIDENT R28SC PLUS Brush Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1352 ACTUATOR 24V L=315 F=500N + CONN. AMP $861.57 1 usually ships 6-27 days
2 283-1515 SCREW M6X16 UNI 5739 DIN 933 GALV. $2.58 2 usually ships 6-27 days
3 283-1530 BUSHING $6.03 2 usually ships 6-27 days
4 283-1544 SPRING 20X3.2X108 $7.63 2 usually ships 6-27 days
5 283-1555 SEEGER RING (NS13) $2.72 1 usually ships 6-27 days
6 283-1578 HEAD $40.03 1 usually ships 6-27 days
7 283-1611 SCREW M6X30 UNI 5739 DIN 933 (8.8)GAL $2.72 2 usually ships 6-27 days
8 283-1613 SCREW M8X16 UNI 5739 DIN 933 (8.8) GA $2.58 1 usually ships 6-27 days
9 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G $3.03 1 usually ships 6-27 days
10 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $2.58 4 usually ships 6-27 days
11 283-1622 M8X45 HH SCREW UNI5739 DIN933(10.9)GA $2.58 1 usually ships 6-27 days
12 283-1723 NUT M8X5 UNI 5589 GALV. $2.58 3 usually ships 6-27 days
13 283-1725 NUT M10 UNI5589 GALV. LOW $2.58 3 usually ships 6-27 days
14 283-1726 NUT M16X1.5X8 UNI 5589 DIN 936 GALV. $2.58 1 usually ships 6-27 days
15 283-1736 LOCK NUT M8X10.6 UNI 7473 GALV. $2.72 4 usually ships 6-27 days
16 283-1758 WASHER 4x8x3 NYLON $2.58 6 usually ships 6-27 days
17 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL $3.47 2 usually ships 6-27 days
18 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $3.47 2 usually ships 6-27 days
19 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 6 usually ships 6-27 days
20 283-1793 WASHER 17X30X3 UNI 6592 GALV. $3.47 1 usually ships 6-27 days
21 283-1820 MICROSWITCH 10A 3X22 $14.71 3 usually ships 6-27 days
22 283-1871 PLASTIC CLAMP 4.5X200 $2.80 2 usually ships 6-27 days
23 283-2055 SCREW M3X20 TE UNI 5739 INOX A2 $5.44 6 usually ships 6-27 days
24 283-2081 SCREW $8.37 3 usually ships 6-27 days
25 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL $2.58 6 usually ships 6-27 days
26 283-2101 WASHER M8 D.32 UNI 6593 GALV. $2.58 4 usually ships 6-27 days
28 283-2424 STOP EXTRA PRESSURE BUTTON $15.80 1 usually ships 6-27 days
29 283-2736 WASHER 10X30X2.5 UNI 6593 $7.26 3 usually ships 6-27 days
30 283-2990 BUSHING D=28-14,9 d=8,5 S=12 OT58 $29.09 4 usually ships 6-27 days
31 283-2998 WASHER UNI 8840 - B - 14 $5.44 3 usually ships 6-27 days
32 283-3089 PIN $31.75 1 usually ships 6-27 days
