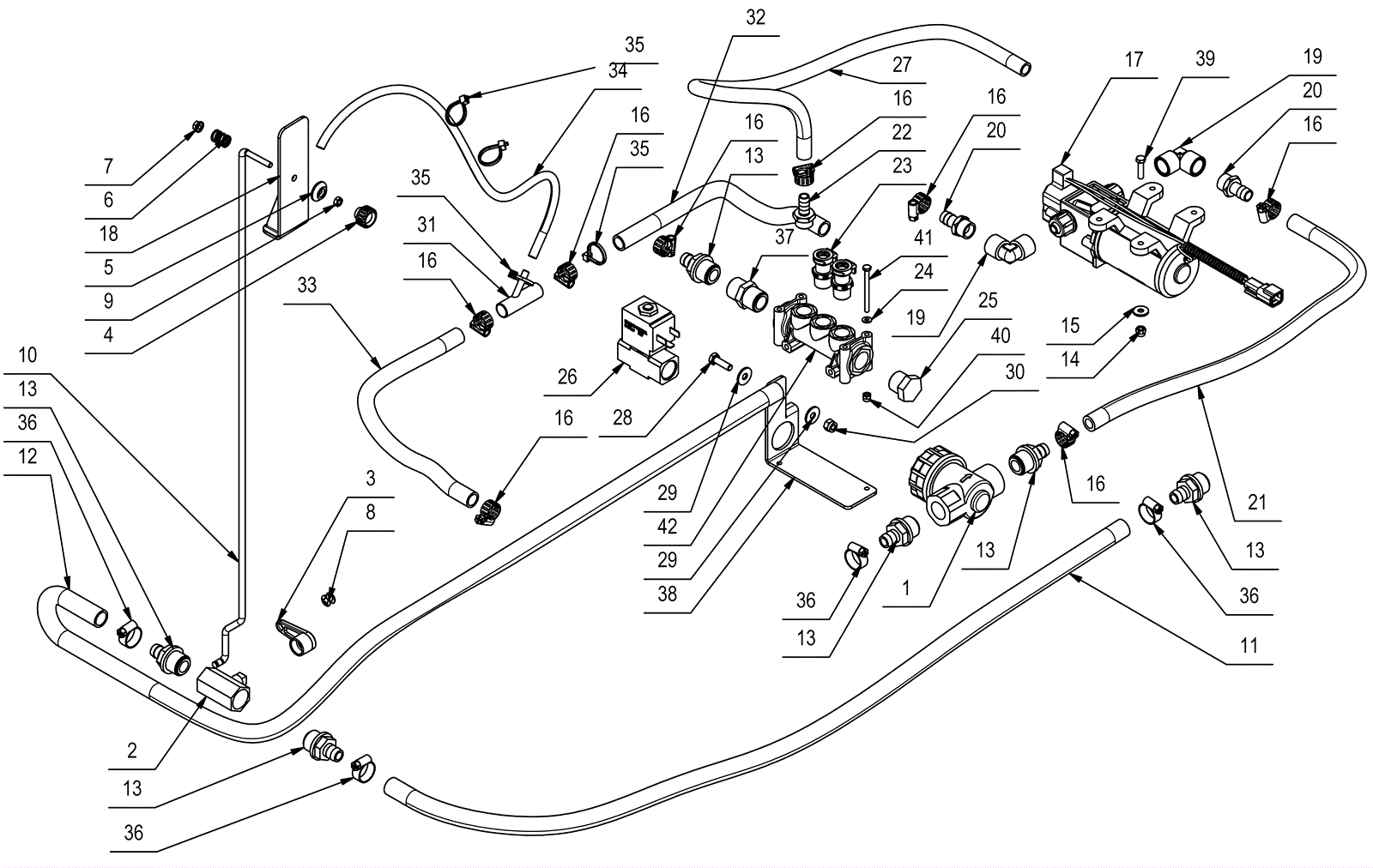

TRIDENT R28SC PLUS Water Unit Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1177 WATER FILTER SOLUTION TANK 1/2 F/F CO $1,465.02 1 usually ships 26-37 days
2 283-1883 WATER VALVE BODY 1/2' F.F. $90.51 1 usually ships 26-37 days
3 283-1465 SHORT WATER VALVE LEVER $5.97 1 ships same day
4 283-1859 HANDWHEEL VZB-18 M5 $13.35 1 usually ships 26-37 days
5 283-1448 SPECIAL WASHER D.5X20 $4.00 1 usually ships 26-37 days
6 283-1539 SPRING 12X1.5X15 - BRUSH CONTROL $5.69 1 usually ships 26-37 days
7 283-1746 NUT M5 DIN 6923 $4.58 1 usually ships 26-37 days
8 283-2042 RING EL.RAD.5 DIN 6799 $4.15 2 ships same day
9 283-1711 NUT M5 UNI 5589 GALV. LOW $4.58 1 usually ships 26-37 days
11 283-1176 HOSE W/SPIRAL D.14X960 CLEAR $86.06 1 usually ships 26-37 days
12 283-1082 PVC PIPE D.14X1150 $11.68 1 usually ships 26-37 days
13 283-1168 STRAIGHT HOSE TAIL 1/2 inchM. D.13 SHORT $34.41 6 ships same day
14 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. $4.58 4 usually ships 26-37 days
15 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $4.58 4 ships same day
16 283-1875 CLAMP W/SCREW 11/17 ABA $8.05 8 usually ships 26-37 days
19 283-2400 ELBOW FITTING  3/8 inch BRASS NICKEL $25.86 2 usually ships 26-37 days
20 283-2270 STRAIGHT FITTING 3/8X13 BRASS $7.90 2 usually ships 26-37 days
22 283-2399 STRAIGHT HOSE TAIL 3/8 inchM D.10 BRASS $6.67 1 usually ships 26-37 days
23 283-2709 RAPID COUPLING FEMALE 3/8 inchM WIT VALVE $74.42 2 usually ships 26-37 days
24 283-1754 WASHER M4 UNI 6592 ST. STEEL $4.58 2 usually ships 26-37 days
25 283-2479 BLACK PLASTIC STOPPER 1/2 inchG $8.69 1 usually ships 26-37 days
26 283-3252 SOLENOID VALVE ELETTROVALVOLA 24V 0-5bar $306.37 1 usually ships 26-37 days
27 283-1215 HOSE W/SPIRAL D.10X650 $58.53 1 usually ships 26-37 days
28 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 26-37 days
29 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $4.58 2 usually ships 26-37 days
30 283-2276 M6 AUTOLOCK. NUT UNI 7473 ZINC. $2.99 1 usually ships 26-37 days
31 283-1146 LINK $4.00 1 usually ships 26-37 days
35 283-1868 PLASTIC CLAMP 2.5X98 $4.58 4 usually ships 26-37 days
36 283-1878 CLAMP W/SCREW 12-20X9 $8.88 4 usually ships 26-37 days
37 283-1901 FITTING MM 1/2-1/2 $14.85 1 usually ships 26-37 days
39 283-1510 SCREW M5X20 UNI 5739 DIN 933(8.8) GAL $4.58 4 usually ships 26-37 days
40 283-1728 LOCK NUT M4X6 UNI 7473 DIN 982 GALV. $4.58 2 usually ships 26-37 days
