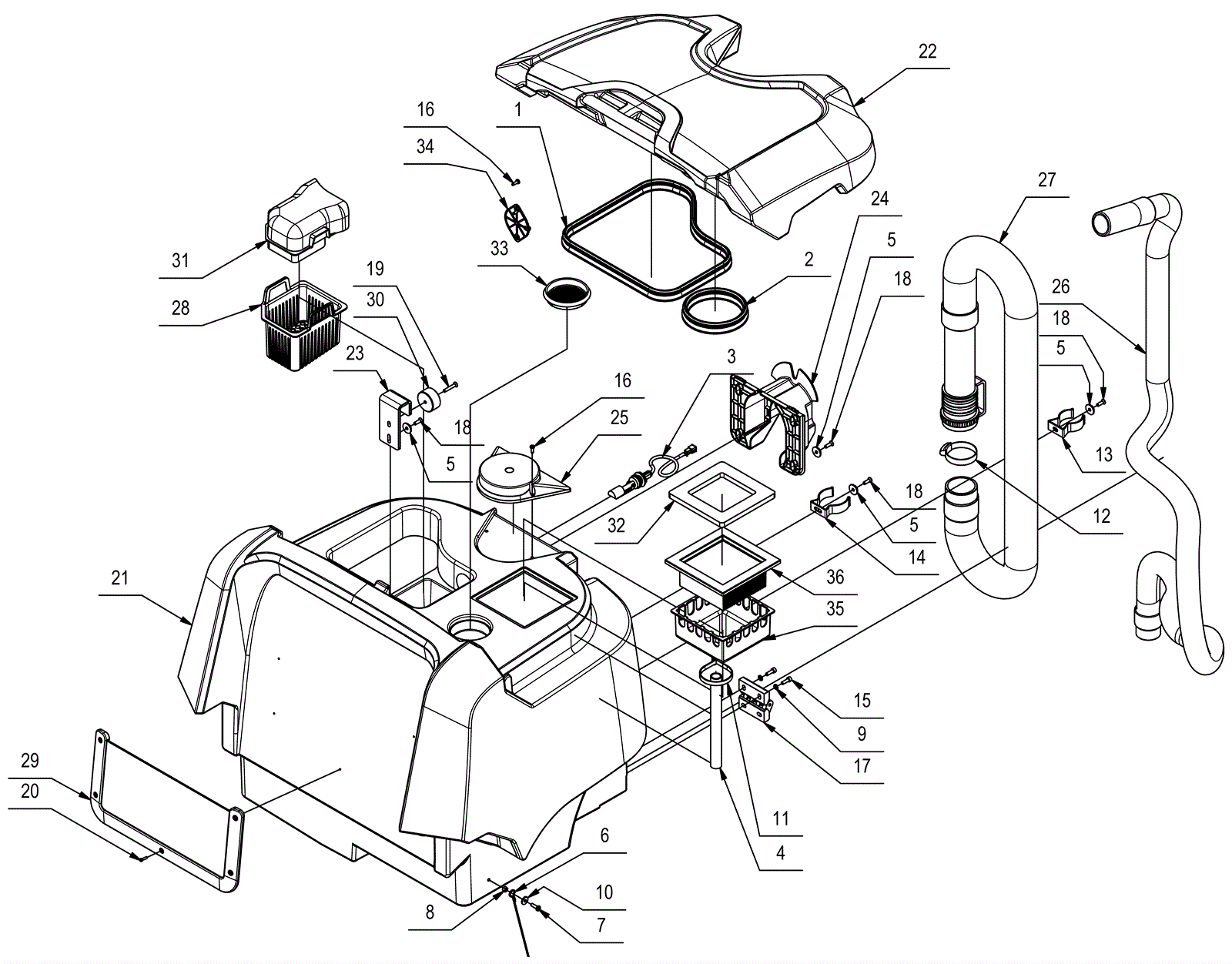

TRIDENT R28SC PLUS Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1341 GASKET 001.001324 L=1000 $41.84 1 usually ships 6-27 days
2 283-1342 GASKET 001.001324 L=400 $41.84 1 usually ships 6-27 days
3 283-1355 FLOAT SWITCHER 250V AZZ. + FASTON $260.05 1 usually ships 6-27 days
4 283-1419 HOSE D=20 d=16 L=200 $8.00 1 usually ships 6-27 days
5 283-1448 SPECIAL WASHER D.5X20 $4.16 10 ships same day
6 283-1458 ROPE $13.50 1 usually ships 6-27 days
7 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC $2.58 2 usually ships 6-27 days
8 283-1710 NUT M5X5 UNI 5587 GALVANIZED $2.58 2 usually ships 6-27 days
9 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
10 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $3.47 2 ships same day
11 283-1872 CLAMP PLASTIC 7.8X240 $4.38 1 usually ships 6-27 days
12 283-1876 Discontinued replaced by HIL420512 $4.36 1 usually ships 6-27 days
13 283-1970 SPRING - HOSE FASTENING D=38 ABS $6.28 2 usually ships 6-27 days
14 283-2004 SPRING - HOSE FASTENING D.50 ABS $3.40 2 usually ships 6-27 days
15 283-2065 SCREW M5x16 TCEI UNI 5931 ZINC-PLATED $2.66 4 usually ships 6-27 days
16 283-2248 SELF-TAPPING SCREW 4,2x13 TC T.C. $2.72 4 usually ships 6-27 days
17 283-2472 HINGE $63.07 2 ships same day
18 283-2677 SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC $2.58 10 usually ships 6-27 days
19 283-2679 SCREW M5x30 TSPTC UNI 7688 ZINC-C. BL $1.89 2 ships same day
20 283-2890 SCREW UNI 9707-Pz-TZ D.3,5 x 14 A2 $2.95 5 usually ships 6-27 days
21 283-3029 RECOVERY TANK R28/30 2016 RAL 5012 $1,151.95 1 usually ships 6-27 days
22 283-3030 RECOVERY TANK COVER R28/30 2016 RAL 7016 $222.19 1 usually ships 6-27 days
24 283-3064 REAR BRUSH AND HOSE SUPPORT $16.35 1 usually ships 6-27 days
25 283-3065 FLASHING LIGHT SUPPORT $7.28 1 usually ships 6-27 days
26 283-3071 SUCTION HOSE D=38 L=1855 CUFF inchC-D inch $85.05 1 usually ships 6-27 days
27 283-3072 Exhaust pipe assembly $270.82 1 usually ships 6-27 days
28 283-3074 RECOVERY TANK FILTER SUPPORT $9.05 1 usually ships 6-27 days
29 283-3085 BLACK NET- OBJECT HOLDER 380 X 185 $88.03 1 usually ships 6-27 days
30 283-3099 BUSHING $11.91 2 usually ships 6-27 days
31 283-3102 CARTER $14.60 1 usually ships 6-27 days
32 283-3104 FILTER-LID GASKET R28/30 2016 $26.18 1 usually ships 6-27 days
33 283-3113 MOTOR TANK FILTER $4.42 1 usually ships 6-27 days
34 283-3121 FLOAT CABLE COVER BRACKET $7.26 1 usually ships 6-27 days
35 283-3123 FILTER PROTECTING BOWL $4.90 1 usually ships 6-27 days
36a 283-3126 Polyester filter - DO NOT ORDER - SEE REPLACEMENT PARTS $55.11 1 (must order 36b and 36c together as replacement for this filter) usually ships 6-27 days
36b 283-3123 FILTER PROTECTING BOWL $4.90 1 usually ships 6-27 days
36c 283-3104 FILTER-LID GASKET R28/30 2016 $26.18 1 usually ships 6-27 days
