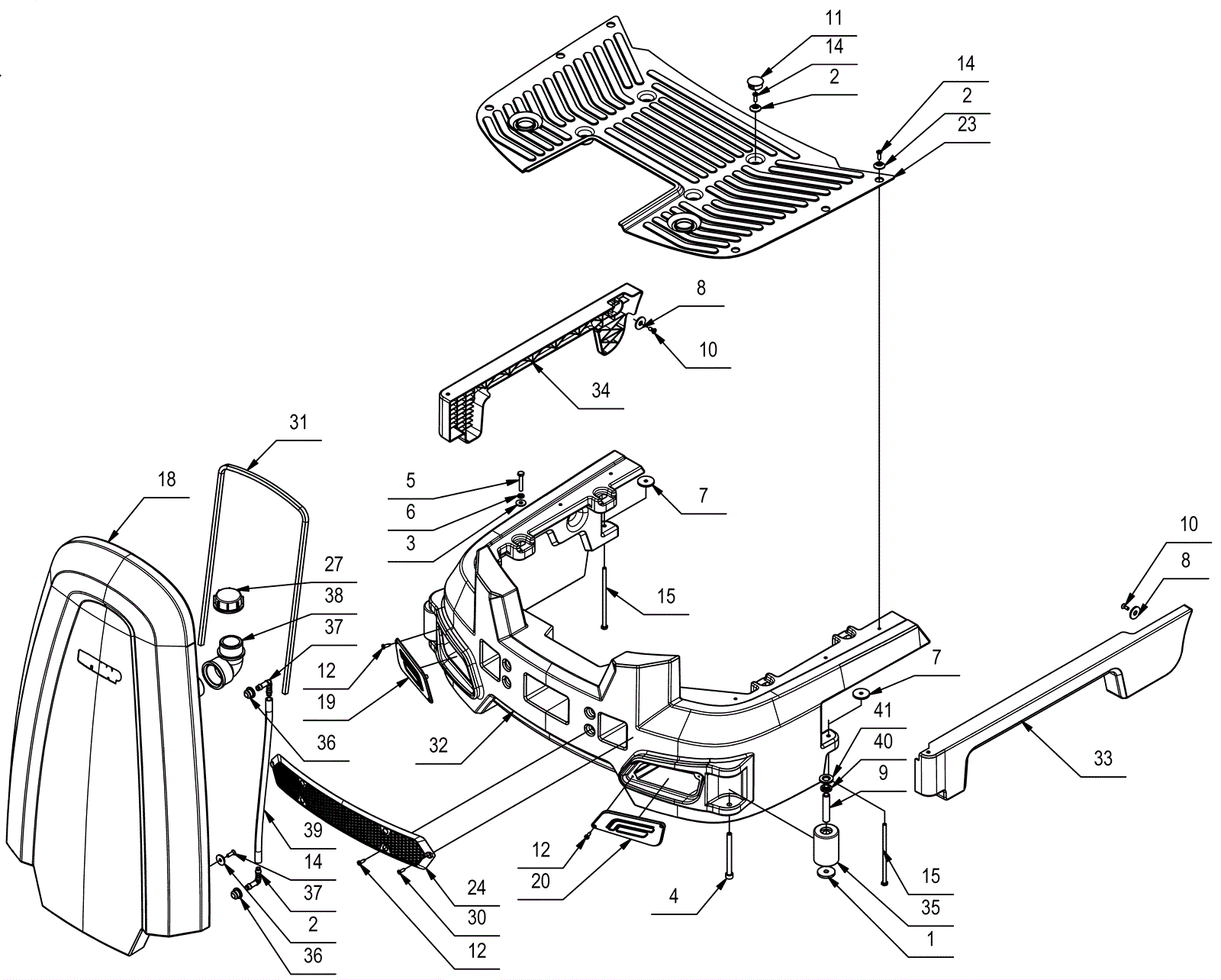

TRIDENT R30SC Front Bumper Assembly

#PartDescriptionPriceReqNotesAvailability
1 250-1320 Washer $9.53 2 usually ships 1-5 days
2 283-1448 SPECIAL WASHER D.5X20 $4.16 16 ships same day
3 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $2.58 6 usually ships 6-27 days
4 283-1657 SCREW $6.68 2 usually ships 6-27 days
5 283-1605 SCREW M6X35 UNI 5739 DIN 933 (8.8) GA $2.58 4 usually ships 6-27 days
6 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $3.47 4 usually ships 6-27 days
7 283-1771 PVC SPECIAL WASHER 6X30X3 BLACK $2.58 2 usually ships 6-27 days
8 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. $3.03 2 usually ships 6-27 days
9 283-1947 BUSHING 8x12x58 $8.63 2 usually ships 6-27 days
10 283-2064 SCREW M5x12 $2.58 2 usually ships 6-27 days
11 283-2119 CLIP PLUG D.25 $2.72 4 usually ships 6-27 days
12 283-2248 SELF-TAPPING SCREW 4,2x13 TC T.C. $2.72 8 usually ships 6-27 days
14 283-2677 SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC $2.58 16 usually ships 6-27 days
15 283-2701 SCREW M6X130 TE UNI 5737 DIN 931 8.8 $11.09 2 usually ships 6-27 days
18 283-3031 FRONT CARTER R28/30 2016 RAL 7016 $262.49 1 usually ships 6-27 days
19 283-3055 RIGHT HEADLIGHT COVER $8.53 1 usually ships 6-27 days
20 283-3056 LEFT HEADLIGHT COVER $8.53 1 usually ships 6-27 days
23 283-3070 FOOT BOARD $59.13 1 ships same day
24 283-3077 FRONT BUMPER CARTER $5.76 1 usually ships 6-27 days
27 283-3083 CLEANSER CAP $7.90 1 usually ships 6-27 days
30 283-3103 BLACK SCREW 4,2x16 $2.90 2 usually ships 6-27 days
31 283-3127 GASKET EPDM 8 x 7 L=960 (POR304/B/OPC) $15.16 1 usually ships 6-27 days
32 283-3210 BUMBER MMG 2016 SLIM RAL 7016 $400.08 1 usually ships 6-27 days
33 283-3212 LEFT SIDE CARTER RAL7016 $48.54 1 usually ships 6-27 days
34 283-3211 RIGHT SIDE CARTER RAL7016 $32.92 1 usually ships 6-27 days
35 283-2290 BUMPER WHEEL 45x65 RAL 7016 $12.97 2 usually ships 6-27 days
36 283-2412 GASKET D.20(8)X12.5 $12.40 2 usually ships 6-27 days
37 283-2413 ELBOW FITTING D.8X30 $13.44 2 usually ships 6-27 days
38 283-3192 ELBOW 90° M-F 1 inch 1-4 (0401252.050909) $34.69 1 usually ships 6-27 days
39 283-1366 HOSE D.12(8)X350 CLEAR $12.67 1 usually ships 6-27 days
40 283-3264 BRASS BUSHING D=20-13,9 d=8 L=6,2 $18.19 2 usually ships 6-27 days
41 283-1451 ROSE $4.16 2 usually ships 6-27 days
