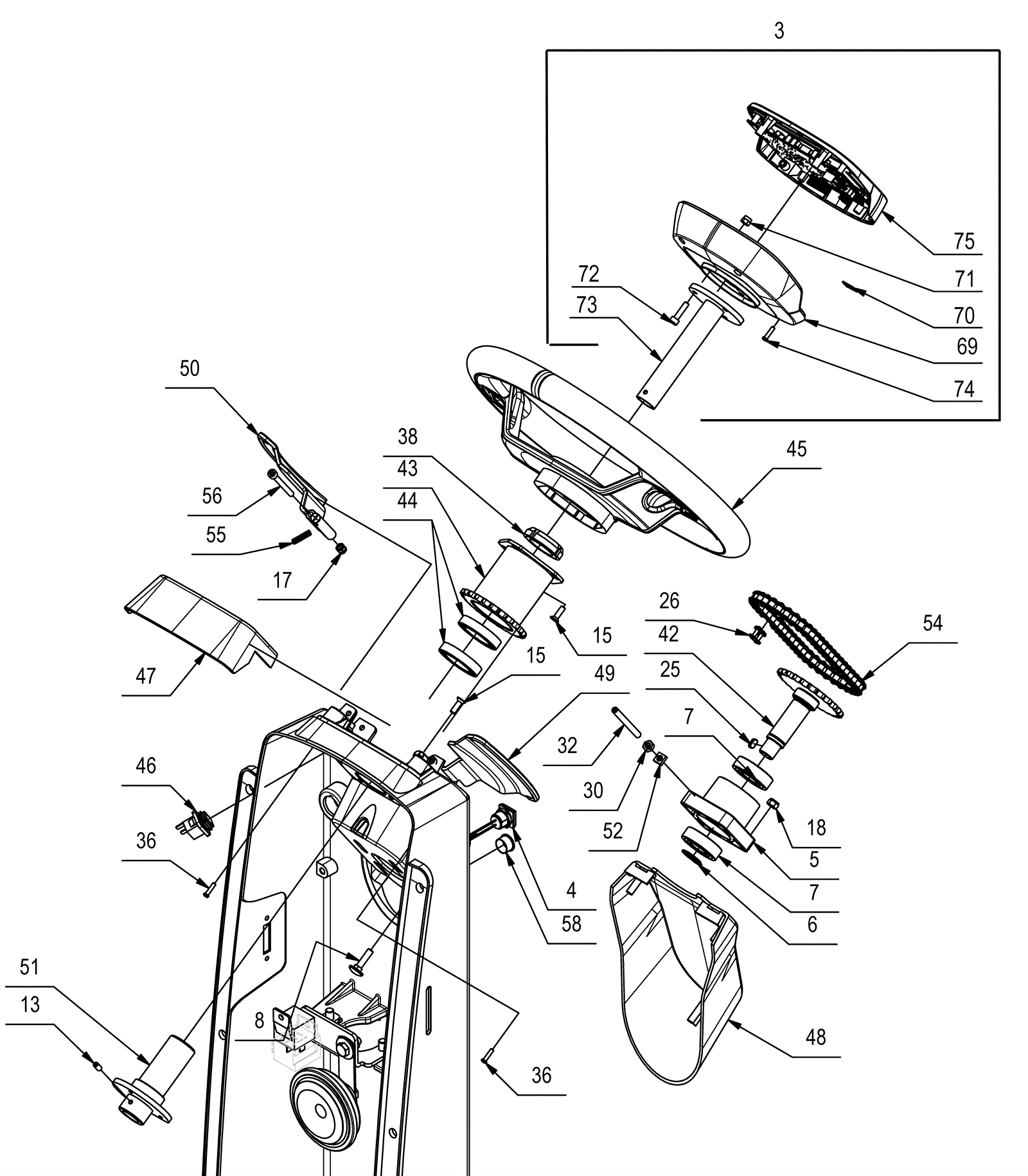

TRIDENT R28SC PLUS Steering Assembly - Part 2

#PartDescriptionPriceReqNotesAvailability
3 283-1423 DASHBOARD PRE-ASSEMBLY MMG 2016 PLUS II $2,710.38 1 (includes 69-75) usually ships 6-27 days
4 283-1354 YELLOW BUTTON APEM IRC3F452 + FASTON $157.86 1 usually ships 6-27 days
5 283-1464 BEARING SUPPORT $31.91 1 usually ships 6-27 days
6 283-1561 SEEGER EST. 20x1.2 $2.58 1 usually ships 6-27 days
7 250-1152 Bearing $9.00 2 usually ships 1-5 days
13 283-1686 DOWEL M5X12 UNI 5923 $2.58 1 usually ships 6-27 days
15 283-1694 SCREW M5X16 TSPEI UNI 5933 INOX A2 $2.58 7 usually ships 6-27 days
17 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. $2.58 2 usually ships 6-27 days
18 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $2.58 4 usually ships 6-27 days
25 283-1808 KEY 5X5X10 $8.52 2 usually ships 6-27 days
26 283-1961 JOINT CHAIN 3/8 SIMPLE $8.59 2 usually ships 6-27 days
30 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
32 283-2358 NUT M6X60 UNI 5923 GALV. $5.00 1 usually ships 6-27 days
36 283-2892 SCREW UNI 9707-Pz-TZ D.3,5 x 14 ZN $2.66 5 usually ships 6-27 days
45 283-3286 STEERING WHEEL $175.50 1 usually ships 6-27 days
46 283-3062 SINGLE BUTTON SB-52D1LBKBK16Q0 $13.16 2 usually ships 6-27 days
47 283-3066 STEERING COLUMN UPPER COVER $9.42 1 usually ships 6-27 days
48 283-3067 STEERING COLUMN LOWER COVER $14.80 1 usually ships 6-27 days
49 283-3068 LEFT PADDLE LEVER $21.25 1 usually ships 6-27 days
50 283-3069 RIGHT PADDLE LEVER $24.30 1 usually ships 6-27 days
55 283-3082 SPRING De=5,2 Df=0,8 L=20 Sp=13 $3.58 2 usually ships 6-27 days
56 283-3119 SCREW M5x45 TCEI UNI 5931 ZINC. $5.95 2 usually ships 6-27 days
58 283-2470 HEYCO STOPPER $12.12 1 usually ships 6-27 days
69 283-3287 LOWER CARTER $6.63 1 usually ships 6-27 days
70 283-3125 MEMORY CARD - MICRO SD 8GB SDC4 $104.59 1 usually ships 6-27 days
71 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. $2.58 3 usually ships 6-27 days
72 283-2066 SCREW 5X20 UNI 5931 GALV. $2.58 3 usually ships 6-27 days
74 283-2890 SCREW UNI 9707-Pz-TZ D.3,5 x 14 A2 $2.95 4 usually ships 6-27 days
75 283-1422 TOUCH SCREEN DASHBOARD $3,178.00 1 usually ships 6-27 days
