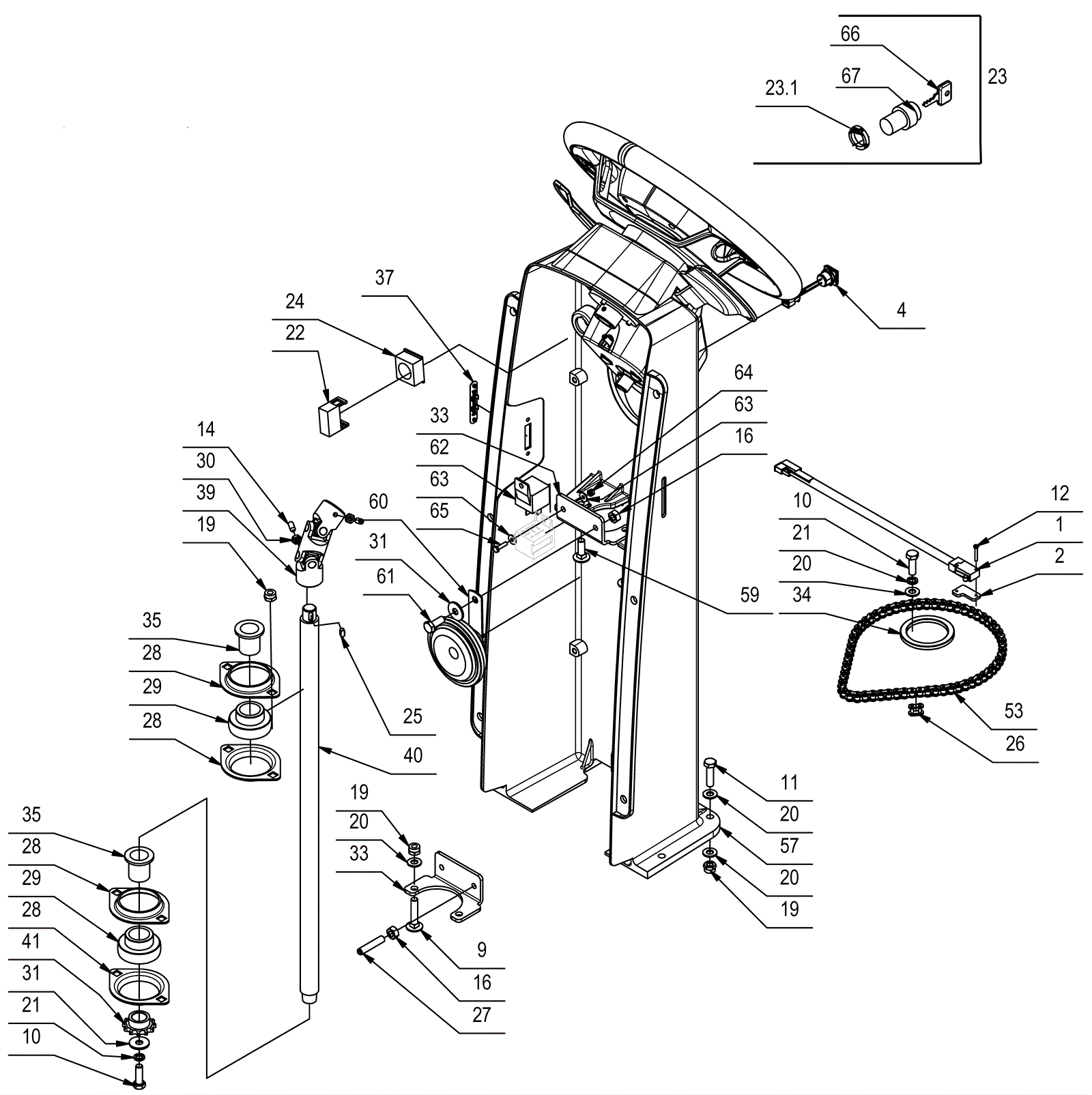

TRIDENT R28SC PLUS Steering Assembly - Part 1

#PartDescriptionPriceReqNotesAvailability
1 283-1214 MICROSWITCH $133.96 1 usually ships 6-27 days
2 283-1231 Support $25.05 1 usually ships 6-27 days
4 283-1354 YELLOW BUTTON APEM IRC3F452 + FASTON $157.86 1 usually ships 6-27 days
9 283-1595 SCREW M8X40 UNI 5732 (4.6) GALV. $2.72 2 usually ships 6-27 days
10 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G $3.03 5 usually ships 6-27 days
11 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $2.58 4 usually ships 6-27 days
12 283-1661 SCREW M3X20 UNI 7687 (4.8) GALV. $2.58 2 usually ships 6-27 days
14 283-1689 CAPPED DOWEK M6X16 UNI 5929 ZINC $2.58 2 usually ships 6-27 days
16 283-1718 NUT M8X6.5 UNI 5588 GALV. $2.58 3 usually ships 6-27 days
19 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $2.58 8 usually ships 6-27 days
20 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.58 14 usually ships 6-27 days
21 283-1779 WASHER 8X13X2.2 GROWER GALV. $3.47 5 usually ships 6-27 days
22 283-1800 CONTACT - KEY SWITCH $18.05 1 usually ships 6-27 days
23 283-1802 SWITCHER W/ KEY MOD 020ST $96.69 1 (includes 66-68) usually ships 6-27 days
24 283-1803 FLANGE - CONTACT KEY SWITCH $5.61 1 usually ships 6-27 days
25 283-1808 KEY 5X5X10 $8.52 2 usually ships 6-27 days
26 283-1961 JOINT CHAIN 3/8 SIMPLE $8.59 2 usually ships 6-27 days
27 283-1965 M8x40 EI UNI 5923 ZINC $2.58 2 usually ships 6-27 days
28 283-2044 SUPPORT $6.41 4 usually ships 6-27 days
29 283-2045 BEARING $48.83 2 usually ships 6-27 days
30 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
31 283-2233 WASHER D.8x24 ZNT $2.72 2 usually ships 6-27 days
33 283-2529 Support $38.36 2 usually ships 6-27 days
34 283-2533 SPACER D=65 d=50,2 S=5 S235 $35.27 1 usually ships 6-27 days
35 283-2534 BUSHING D=35-25 d=22 S=31 NYLON $29.38 2 usually ships 6-27 days
37 283-2983 HOLE COVER CAP RAL7016 $5.96 1 usually ships 6-27 days
39 283-3034 JOINT DIN 808 d=16 $227.34 1 usually ships 6-27 days
40 283-3035 LOWER STEERING SHAFT L=578,8 MR PLUS $101.85 1 usually ships 6-27 days
41 283-3036 PINION $33.33 1 usually ships 6-27 days
53 283-3080 ROLLER CHAIN ISO 06B - 3/8 inch - 65 LINK $35.79 1 usually ships 6-27 days
57 283-1396 STEERING COLUMN MMG 2016 PLUS SLIM $486.30 1 usually ships 6-27 days
59 283-1594 SCREW 8X25 UNI 5732 GALV. $2.58 2 usually ships 6-27 days
60 283-2116 HORN $93.35 1 usually ships 6-27 days
61 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $8.83 1 usually ships 6-27 days
62 283-3111 RELAY FITRE R502/024Z3C9 $44.52 1 usually ships 6-27 days
63 283-2224 WASHER D.4,3x12 ZNT $2.72 2 usually ships 6-27 days
64 283-2096 LOCK NUT M4 UNI 7474 LOW $2.72 1 usually ships 6-27 days
65 283-1603 SCREW 4X16 UNI 5739 GALV. $2.58 1 usually ships 6-27 days
66 283-1807 On/Off Key $16.39 1 usually ships 6-27 days
67 283-1802 SWITCHER W/ KEY MOD 020ST $96.69 1 usually ships 6-27 days
68 283-1802 SWITCHER W/ KEY MOD 020ST $96.69 1 usually ships 6-27 days
