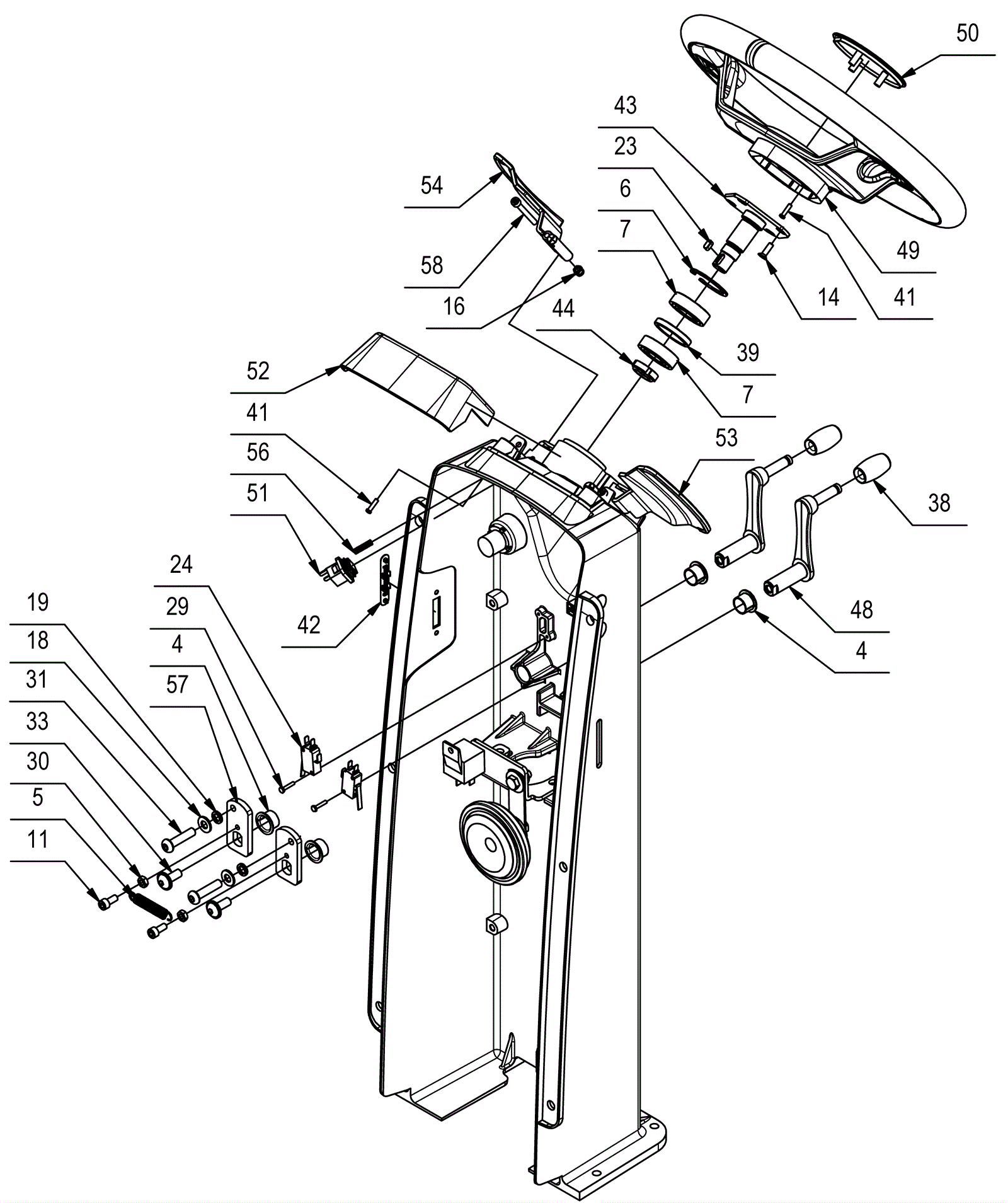

TRIDENT R30SC Steering Assembly - Part 2

#PartDescriptionPriceReqNotesAvailability
4 283-1535 BUSHING $14.53 4 usually ships 6-27 days
5 283-1545 SPRING 10x1.1x55 $5.50 1 usually ships 6-27 days
6 283-1552 CIRCLIP D.42 UNI 7437 $3.74 1 usually ships 6-27 days
7 250-1152 Bearing $9.90 2 usually ships 1-5 days
11 283-1652 SCREW $2.84 2 usually ships 6-27 days
14 283-1694 SCREW M5X16 TSPEI UNI 5933 INOX A2 $2.84 4 usually ships 6-27 days
16 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. $2.84 2 usually ships 6-27 days
18 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $2.84 16 usually ships 6-27 days
19 283-1779 WASHER 8X13X2.2 GROWER GALV. $3.82 7 usually ships 6-27 days
23 283-1808 KEY 5X5X10 $9.37 2 usually ships 6-27 days
24 283-1821 MICROSWITCH 3X22 $20.63 2 usually ships 6-27 days
29 283-2054 M3X16 TE UNI 5739 INOX A2 $4.20 4 usually ships 6-27 days
30 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
31 283-2173 VITE M8X35 TCBCE ISO 7380 (10.9) ZINC $2.84 2 usually ships 6-27 days
33 283-2420 VITE M8x20 TBEI ISO 7380 FL INOX $7.99 2 usually ships 6-27 days
38 283-2565 BASE CONTROL LEVER GRIP R22 $12.91 2 usually ships 6-27 days
39 283-2566 SPACER D = 41.5 d = 34 S = 6 C45 $15.63 1 usually ships 6-27 days
41 283-2892 SCREW UNI 9707-Pz-TZ D.3,5 x 14 ZN $2.93 5 usually ships 6-27 days
42 283-2983 HOLE COVER CAP RAL7016 $6.56 1 usually ships 6-27 days
43 283-3032 STEERING SHAFT MR 2016 BASE $149.05 1 usually ships 6-27 days
44 283-3033 SELF-BREAKING RING $30.16 1 usually ships 6-27 days
48 283-3051 SQUEEGEE BASE CONTROL LEVER $48.66 2 usually ships 6-27 days
49 283-3286 STEERING WHEEL $193.05 1 usually ships 6-27 days
50 283-3054 STEERING WHEEL COVER BASE $8.69 1 usually ships 6-27 days
51 283-3062 SINGLE BUTTON SB-52D1LBKBK16Q0 $14.48 2 usually ships 6-27 days
52 283-3066 STEERING COLUMN UPPER COVER $10.36 1 usually ships 6-27 days
53 283-3068 LEFT PADDLE LEVER $23.38 1 usually ships 6-27 days
54 283-3069 RIGHT PADDLE LEVER $26.73 1 usually ships 6-27 days
56 283-3082 SPRING De=5,2 Df=0,8 L=20 Sp=13 $3.94 2 usually ships 6-27 days
57 283-3096 LIMIT SWITCH ACTIVATION BRACHET $27.50 2 usually ships 6-27 days
58 283-3119 SCREW M5x45 TCEI UNI 5931 ZINC. $6.55 2 usually ships 6-27 days
