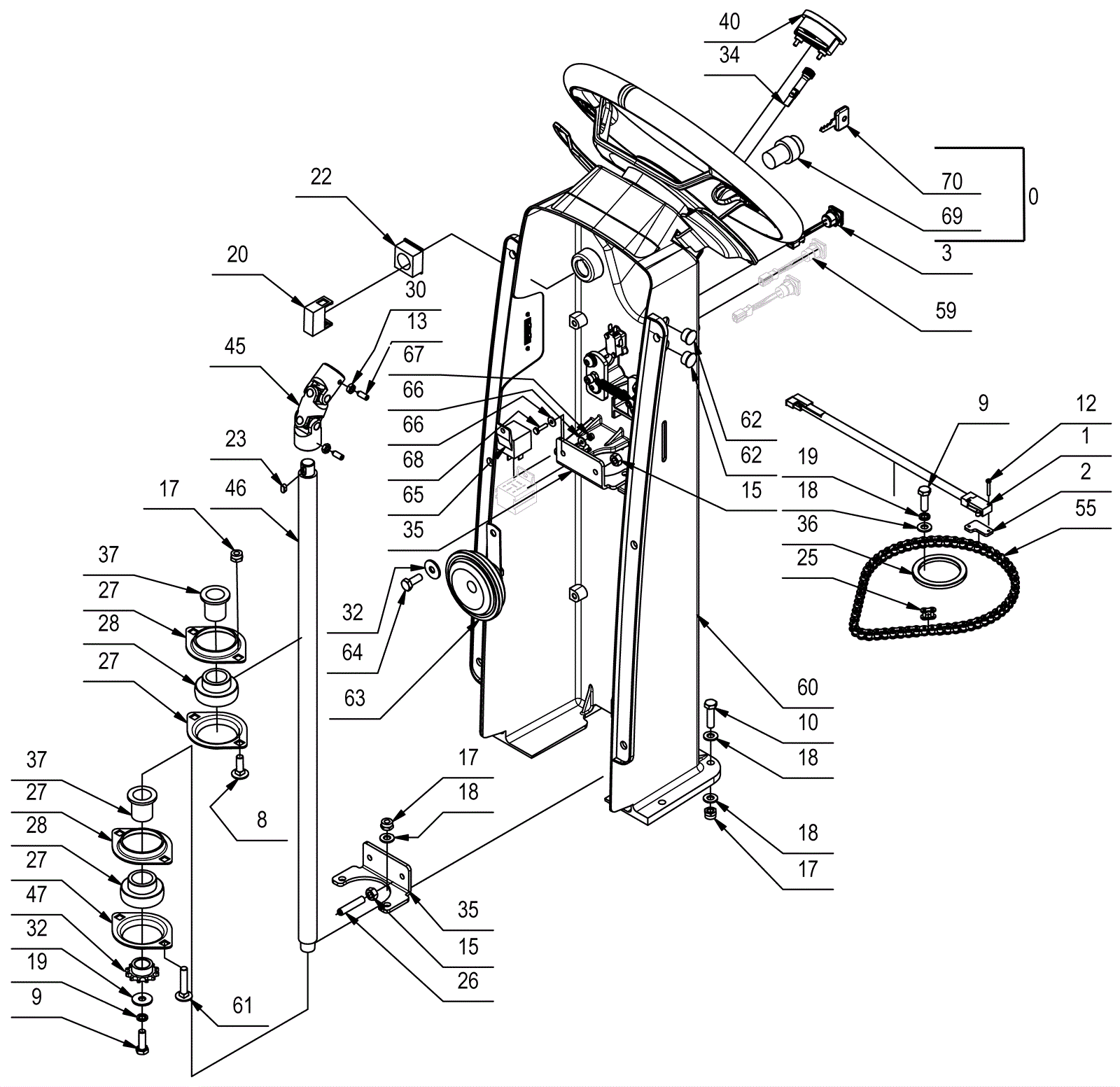

TRIDENT R30SC Steering Assembly - Part 1

#PartDescriptionPriceReqNotesAvailability
0 283-1802 SWITCHER W/ KEY MOD 020ST $153.00 1 (includes 69,70, and N/S) usually ships 26-37 days
1 283-1214 MICROSWITCH $147.36 1 usually ships 26-37 days
2 283-1231 Support $27.56 1 usually ships 26-37 days
3 283-1354 YELLOW BUTTON APEM IRC3F452 + FASTON $173.65 1 usually ships 26-37 days
8 283-1594 SCREW 8X25 UNI 5732 GALV. $4.58 2 usually ships 26-37 days
9 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G $4.58 5 usually ships 26-37 days
10 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $4.58 4 usually ships 26-37 days
12 283-1661 SCREW M3X20 UNI 7687 (4.8) GALV. $4.58 2 usually ships 26-37 days
13 283-1689 CAPPED DOWEK M6X16 UNI 5929 ZINC $4.58 2 usually ships 26-37 days
15 283-1718 NUT M8X6.5 UNI 5588 GALV. $4.58 3 usually ships 26-37 days
17 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $4.58 8 usually ships 26-37 days
18 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $4.58 16 usually ships 26-37 days
19 283-1779 WASHER 8X13X2.2 GROWER GALV. $4.58 7 ships same day
20 283-1800 CONTACT - KEY SWITCH $31.76 1 usually ships 26-37 days
22 283-1803 FLANGE - CONTACT KEY SWITCH $9.87 1 usually ships 26-37 days
23 283-1808 KEY 5X5X10 $9.37 2 usually ships 26-37 days
25 283-1961 JOINT CHAIN 3/8 SIMPLE $9.45 1 usually ships 26-37 days
26 283-1965 M8x40 EI UNI 5923 ZINC $2.84 2 usually ships 26-37 days
27 283-2044 SUPPORT $7.05 4 usually ships 26-37 days
28 283-2045 BEARING $86.04 2 usually ships 26-37 days
30 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
32 283-2233 WASHER D.8x24 ZNT $2.99 2 usually ships 26-37 days
34 283-2428 RED SIGNAL 24V $12.09 1 usually ships 26-37 days
35 283-2529 Support $42.20 2 usually ships 26-37 days
36 283-2533 SPACER D=65 d=50,2 S=5 S235 $38.80 1 usually ships 26-37 days
37 283-2534 BUSHING D=35-25 d=22 S=31 NYLON $32.32 2 usually ships 26-37 days
40 283-2860 HOURMETER W/BATTERY INDICATOR NE306 $691.86 1 usually ships 26-37 days
45 283-3034 JOINT DIN 808 d=16 $250.07 1 usually ships 26-37 days
47 283-3036 PINION $51.30 1 usually ships 26-37 days
55 283-3080 ROLLER CHAIN ISO 06B - 3/8 inch - 65 LINK $55.10 1 usually ships 26-37 days
59 283-3063 GREEN LED SWITCH APEM IRC1F422L0G+CON $413.25 1 usually ships 26-37 days
61 283-1595 SCREW M8X40 UNI 5732 (4.6) GALV. $4.80 2 usually ships 26-37 days
62 283-2470 HEYCO STOPPER $13.33 2 usually ships 26-37 days
63 283-2116 HORN $102.69 1 usually ships 26-37 days
64 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $15.55 1 usually ships 26-37 days
65 283-3111 RELAY FITRE R502/024Z3C9 $48.97 1 usually ships 26-37 days
66 283-2224 WASHER D.4,3x12 ZNT $2.99 2 usually ships 26-37 days
67 283-2096 LOCK NUT M4 UNI 7474 LOW $2.99 1 usually ships 26-37 days
68 283-1603 SCREW 4X16 UNI 5739 GALV. $4.58 1 usually ships 26-37 days
69 283-1802 SWITCHER W/ KEY MOD 020ST $153.00 1 usually ships 26-37 days
70 283-1807 On/Off Key $25.96 1 usually ships 26-37 days
N/S 283-1802 SWITCHER W/ KEY MOD 020ST $153.00 1 usually ships 26-37 days
