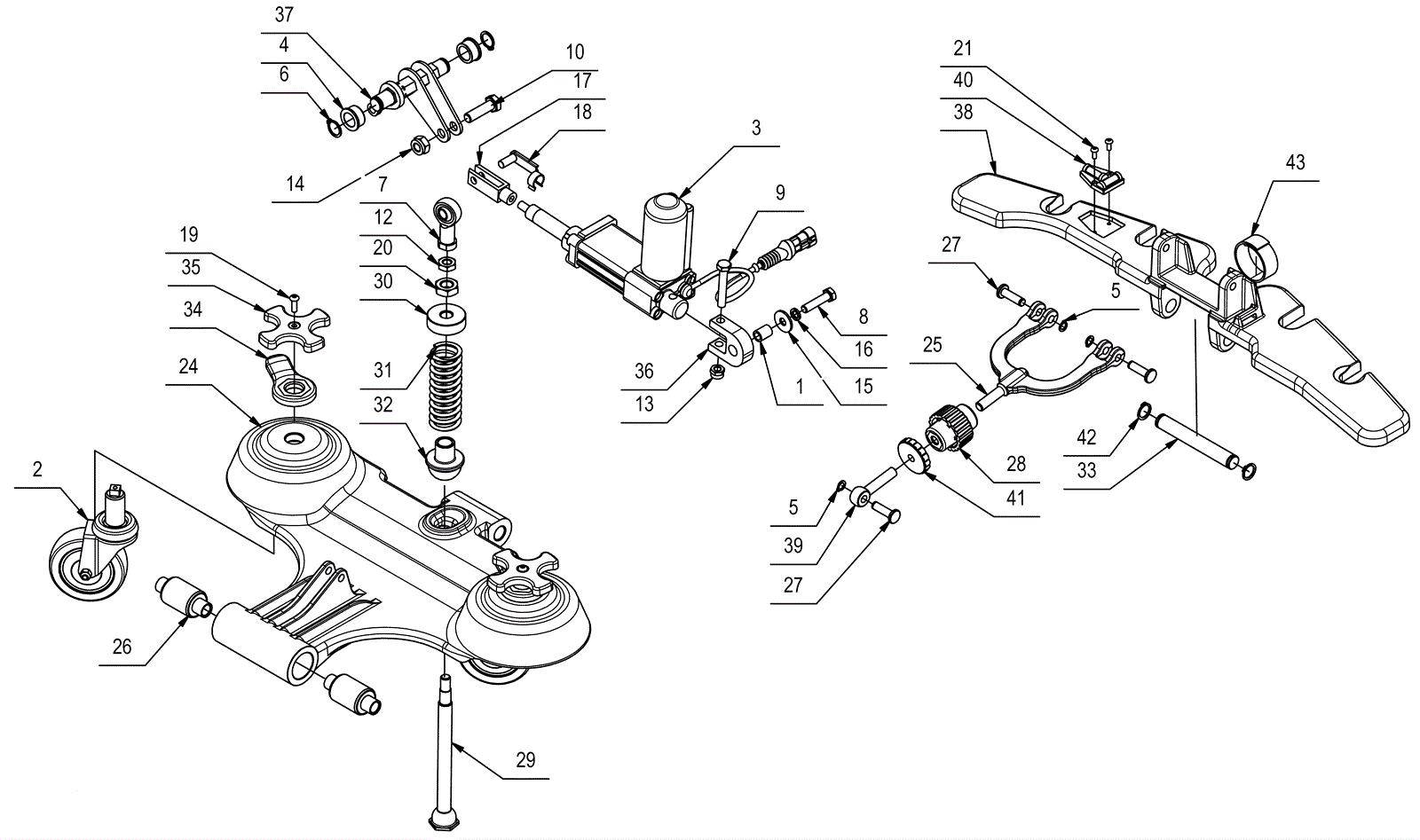

TRIDENT R28SC PLUS Squeegee Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1158 SPACER $8.66 1 usually ships 26-37 days
2 283-1334 CASTER WHEEL D=80 W/ SPECIAL PIN $136.80 2 ships same day
3 283-1353 ACTUATOR 24V C60 F500N V32+ CONN. AMP $1,112.91 1 usually ships 26-37 days
4 283-1530 BUSHING $10.60 2 usually ships 26-37 days
5 283-1555 SEEGER RING (NS13) $4.80 3 usually ships 26-37 days
6 283-1558 SEEGER E 16 X1 DIN 471 $4.58 2 usually ships 26-37 days
7 283-1579 ARTICULATED HEAD D.10X14 M10 DIN468K $96.09 1 usually ships 26-37 days
8 283-1619 SCREW M8X35 UNI 5739 DIN 933 (10.9) G $4.58 1 usually ships 26-37 days
9 283-1629 M8X50 HH SCREW UNI 5739 (8.8) GALV. $4.58 1 usually ships 26-37 days
10 283-1640 SCREW M10X35 UNI 5737 DIN 931 (8.8) $4.80 1 usually ships 26-37 days
12 283-1725 NUT M10 UNI5589 GALV. LOW $4.58 1 usually ships 26-37 days
13 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $4.58 1 usually ships 26-37 days
14 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
15 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. $4.58 1 usually ships 26-37 days
16 283-1779 WASHER 8X13X2.2 GROWER GALV. $4.58 1 ships same day
17 283-1905 FORK M8X32 UNI 1676 LONG $16.94 1 usually ships 26-37 days
18 283-1908 PIN - FORK M8X32 LONG $3.74 1 usually ships 26-37 days
19 283-2083 SCREW 5X16 ISO 7380 A2 TCBEI $2.84 2 usually ships 26-37 days
20 283-2094 Nut M4X2 UNI 5589 ZINC. $2.99 1 usually ships 26-37 days
21 283-2305 SCREW 4X10 ISO 7380 A2 TCBEI $2.84 2 usually ships 26-37 days
24 283-3009 SQUEEGEE FRONT JOINT $347.91 1 usually ships 26-37 days
25 283-3010 SQUEEGEE CONTROL BRACKET $29.89 1 usually ships 26-37 days
26 283-3011 BUSH SILENTBLOCK D=30 d=12 L=40 l=67 $137.86 2 usually ships 26-37 days
27 283-3012 PIN $14.61 3 usually ships 26-37 days
28 283-3013 SQUEEGEE CONTROL HANDLE $45.31 1 usually ships 26-37 days
29 283-3014 PIN $163.58 1 usually ships 26-37 days
30 283-3015 HANDWHEEL D=40 M14x2 - A2 $70.69 1 usually ships 26-37 days
31 283-3016 COMPRESSION SPRING De=33 Df=4,5 L=90 $25.52 1 usually ships 26-37 days
32 283-3017 SPRING WIPER BUSH R28/30 2016 $94.36 1 usually ships 26-37 days
33 283-3018 PIN D=15 L=108 OT58 $48.54 1 usually ships 26-37 days
34 283-3022 WHEEL BLOCK LEVER $11.04 2 usually ships 26-37 days
35 283-3024 WHEEL CONTROL HANDLE $2.84 2 usually ships 26-37 days
38 283-3207 REAR SQUEGEE ARM $346.90 1 usually ships 26-37 days
40 283-3049 DOUBLE BUBBLE LEVEL $5.50 1 usually ships 26-37 days
41 283-3092 VALVE V-40 PS M10 - RAL 1021 $28.75 1 usually ships 26-37 days
42 250-1068 Seeger ring $2.38 2 usually ships 14-27 days
43 283-3098 VELCRO FASTENING $5.50 1 usually ships 26-37 days
