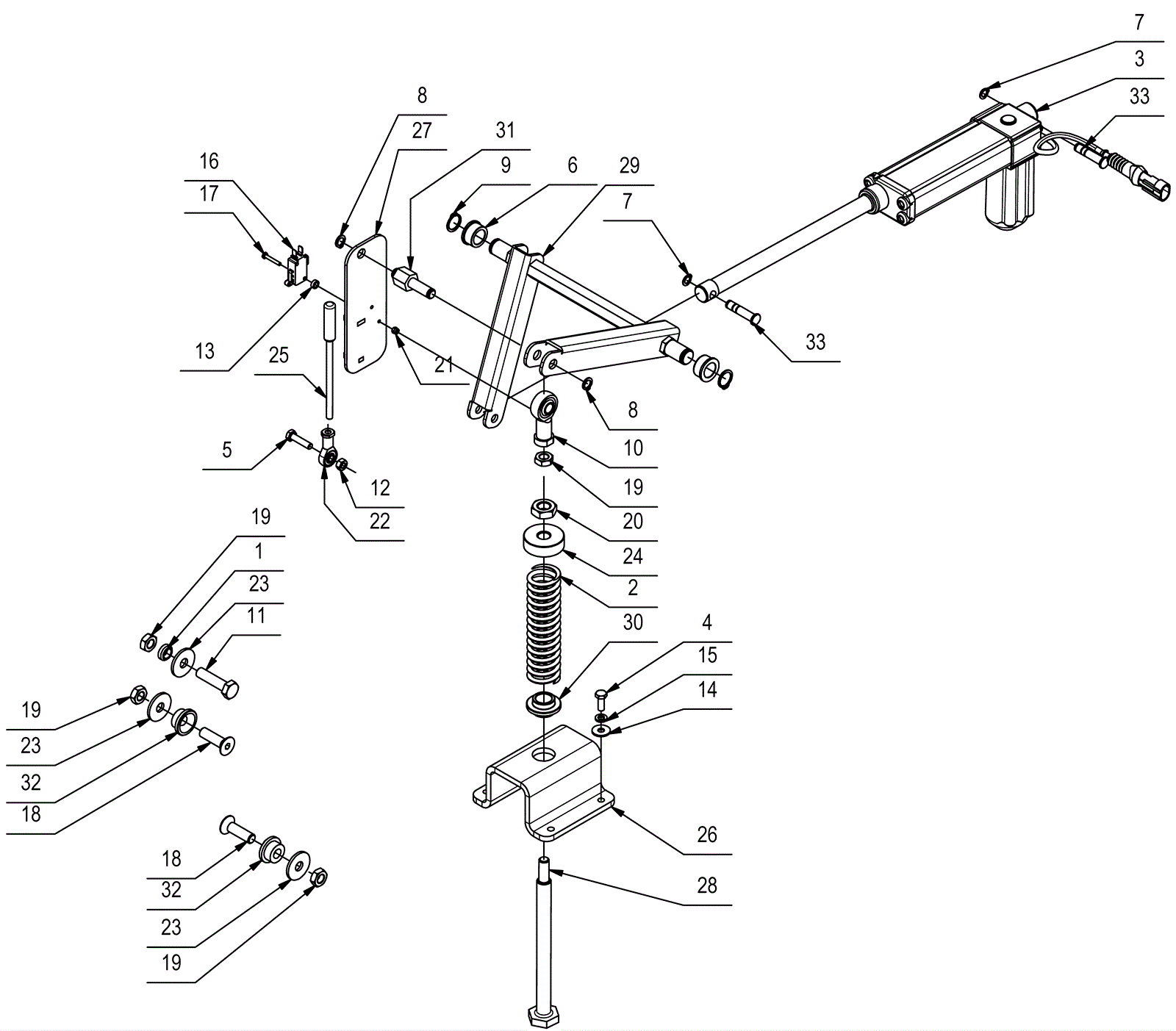

TRIDENT R30SC Brush Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1147 SPACER $13.24 1 usually ships 6-27 days
2 283-1164 COMPR. SPRING 33X4.5X125 $108.32 1 usually ships 6-27 days
3 283-1352 ACTUATOR 24V L=315 F=500N + CONN. AMP $861.57 1 usually ships 6-27 days
4 283-1515 SCREW M6X16 UNI 5739 DIN 933 GALV. $2.58 4 usually ships 6-27 days
5 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA $2.58 1 usually ships 6-27 days
6 283-1530 BUSHING $6.03 2 usually ships 6-27 days
7 283-1555 SEEGER RING (NS13) $2.72 2 usually ships 6-27 days
8 283-1556 SEEGER E 10 $2.58 2 usually ships 6-27 days
9 283-1558 SEEGER E 16 X1 DIN 471 $2.58 2 usually ships 6-27 days
10 283-1579 ARTICULATED HEAD D.10X14 M10 DIN468K $54.56 1 usually ships 6-27 days
11 283-1642 SCREW M10X40 UNI 5737 DIN 931 (8.8) $9.72 1 usually ships 6-27 days
12 283-1713 NUT M6 UNI 5588 DIN 934 GALV. $2.58 1 usually ships 6-27 days
13 283-1758 WASHER 4x8x3 NYLON $2.58 2 usually ships 6-27 days
14 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $2.58 4 usually ships 6-27 days
15 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $3.47 4 usually ships 6-27 days
16 283-1820 MICROSWITCH 10A 3X22 $23.57 1 usually ships 6-27 days
17 283-2055 SCREW M3X20 TE UNI 5739 INOX A2 $5.44 2 usually ships 6-27 days
18 283-2081 SCREW $8.37 2 usually ships 6-27 days
19 283-2093 NUT M10x1 UNI 5589 LOW ZN $2.58 4 usually ships 6-27 days
20 283-2094 Nut M4X2 UNI 5589 ZINC. $2.72 1 usually ships 6-27 days
21 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL $2.58 2 usually ships 6-27 days
23 283-2736 WASHER 10X30X2.5 UNI 6593 $7.26 3 usually ships 6-27 days
24 283-3015 HANDWHEEL D=40 M14x2 - A2 $64.26 1 usually ships 6-27 days
28 283-3059 PIN $59.72 1 usually ships 6-27 days
30 283-3060 SPRING GUIDE BUSHING SCRUBDECK MMG 2016 $15.78 1 usually ships 6-27 days
31 283-3061 ROD FOR BASE COMMAND $12.26 1 usually ships 6-27 days
32 283-3084 BUSHING D=27-20 d=10,1 L=12 S=8,5 SVAS. $72.75 2 usually ships 6-27 days
33 283-3089 PIN $31.75 2 usually ships 6-27 days
