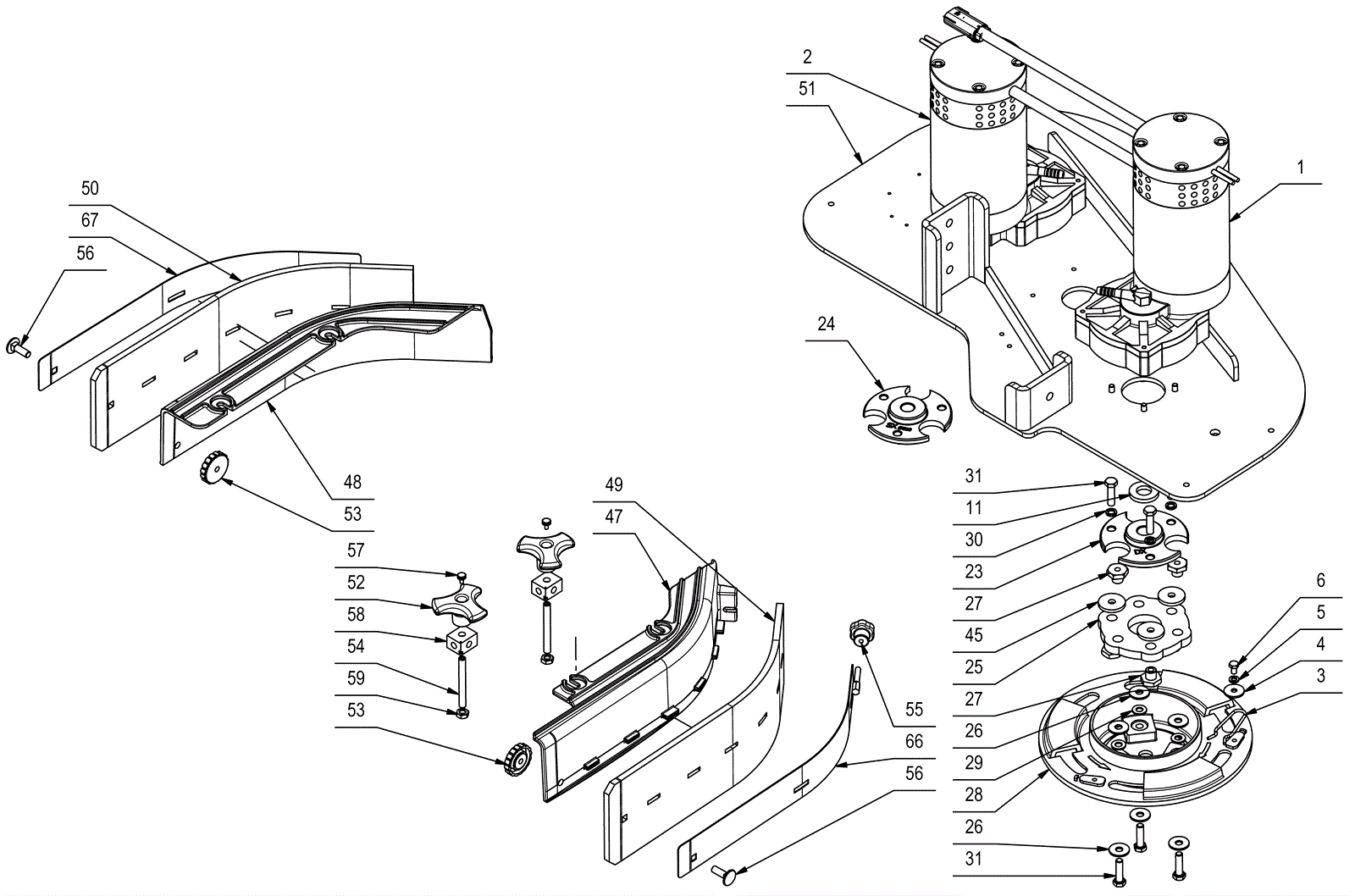

TRIDENT R30SC Deck Assembly - Part 2

#PartDescriptionPriceReqNotesAvailability
1 283-1004 GEAR MOTOR 24V 500W 140 RPM WITH MOLE $1,098.42 1 usually ships 26-37 days
2 283-1003 GEARMOTOR 24V 500W 140RPM H2O W/MOLEX $943.42 1 usually ships 26-37 days
3 283-1550 SPRING - BRUSH LOCK $14.85 2 usually ships 26-37 days
4 283-1772 WASHER M6 D.24 UNI 6593 ST.STEEL $4.58 2 usually ships 26-37 days
6 283-1512 SCREW VITE M6X10 UNI 5739 A2 TE $4.58 2 usually ships 26-37 days
11 283-2729 WASHER SPECIAL 18 x 35 S=5 INOX $23.22 2 usually ships 26-37 days
24 283-1229 FLANGE BRUSH BASE D610 LEFT THREAD $203.30 1 usually ships 26-37 days
25 283-1449 JOINT $61.97 2 usually ships 26-37 days
26 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. $4.58 12 usually ships 26-37 days
27 283-1091 BUSHING $9.08 12 usually ships 26-37 days
28 283-1144 PLATE - BRUSH HOLDER C85 $10.36 2 usually ships 26-37 days
29 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $4.58 6 usually ships 26-37 days
30 283-2107 LOCK WASHER M8 UNI 1751 ZINC. $2.84 6 usually ships 26-37 days
31 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $4.58 12 usually ships 26-37 days
45 250-1320 Washer $10.48 6 usually ships 1-5 days
47 283-3213 LEFT SPLASHGUARD $188.83 1 usually ships 26-37 days
48 283-3214 RIGHT SPLASHGUARD $194.65 1 usually ships 26-37 days
49 283-3594 Splash guard kit (rubber) $162.72 1 usually ships 26-37 days
50 283-3594 Splash guard kit (rubber) $162.72 1 usually ships 26-37 days
52 283-3027 SQUEEGEE LOCK LEVER $9.30 4 usually ships 26-37 days
53 283-1439 LOCKING WHEEL M8 D=40 S=9 BLACK $9.25 2 usually ships 26-37 days
54 283-3245 PIN M8x72 SLIM SPLASH GUARD REGULATION $36.03 4 usually ships 26-37 days
55 283-1862 KNOB VBA-25 M6 $12.54 2 usually ships 26-37 days
56 283-1598 SCREW 8X25 UNI 5731-65 $4.58 2 usually ships 26-37 days
57 283-3246 STOPPER KNOB PIN FOR SLIM SPLASHGUARD $22.68 4 usually ships 26-37 days
58 283-3247 SPLASHGUARD LOCK $74.03 4 usually ships 26-37 days
59 283-1719 NUT M8 UNI 5589 ST.STEEL LOW $4.58 4 usually ships 26-37 days
66 283-3248 LEFT RUBBER BLADE FOR MMG2016 SLIM DECK $182.00 1 usually ships 26-37 days
67 283-3249 RIGHT RUBBER BLADE FOR MMG2016 SLIM DECK $182.00 1 usually ships 26-37 days
