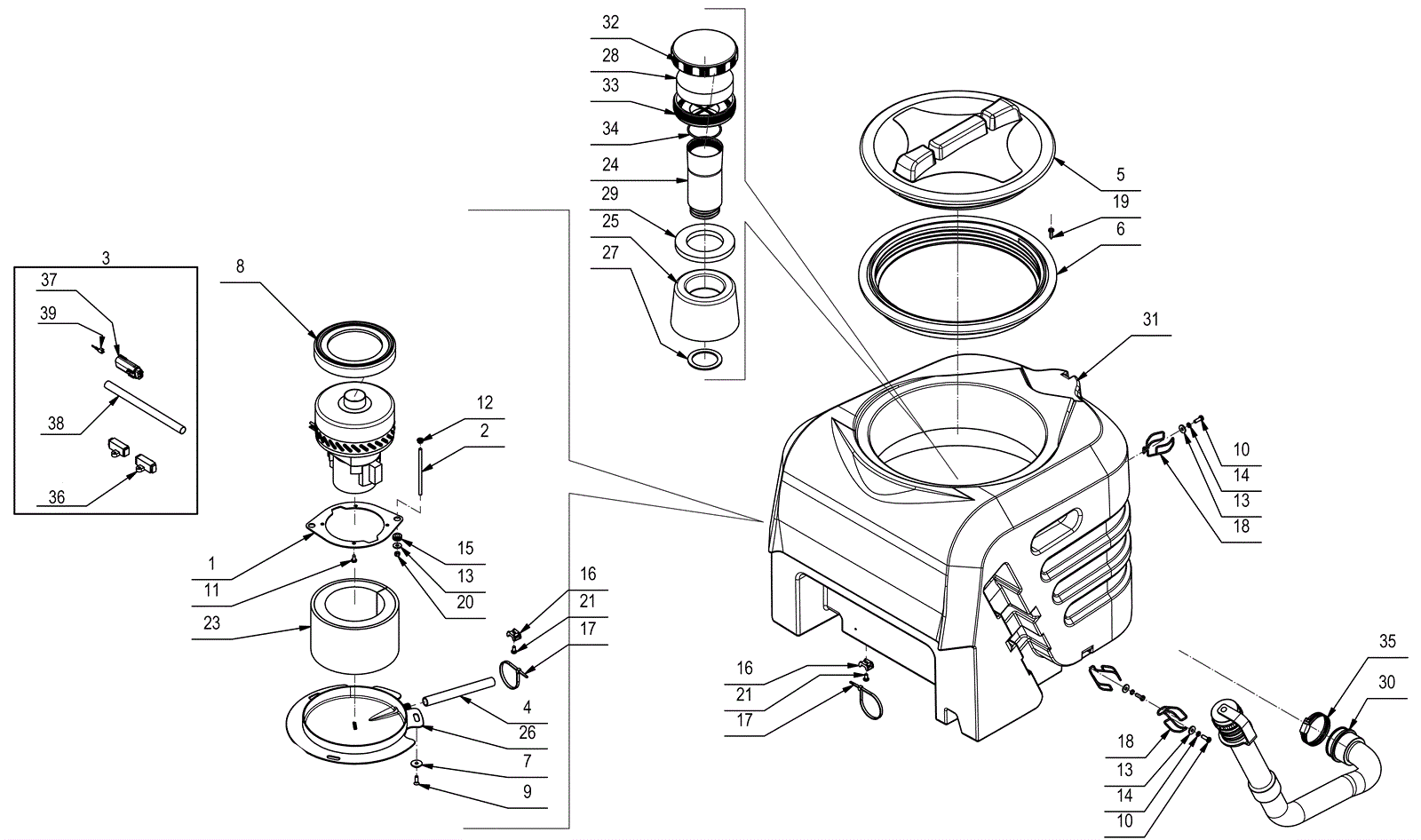

| # | Part | Description |
Req | Notes | Availability |
|---|
9 |
283-1586
|
SCREW M5X16 UNI 7689 GALV. |
3 |
|
|
11 |
283-1680
|
SELF THREAD. SCREW 4.8X13 UNI 6954 GA |
4 |
|
|
20 |
283-2174
|
M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI |
2 |
|
|
26 |
283-2489
|
ELECTRIC MOTOR CARTER R22 |
1 |
|
|
27 |
283-2517
|
FLOAT GASKET D=62 d=47 S=3 |
1 |
|
|
29 |
283-2572
|
POLYURETHANE FLOATING RING D=105/70 H |
1 |
|
|
32 |
283-2724
|
FLOAT COVER R22-OPTIMA |
1 |
|
|
34 |
283-1588
|
O-RING OR 3218 (2.6X55.2) |
1 |
|
|
N/S |
283-2450
|
SUCT. MOTOR 24V 410W H1200PERIPHERAL |
1 |
|
|
