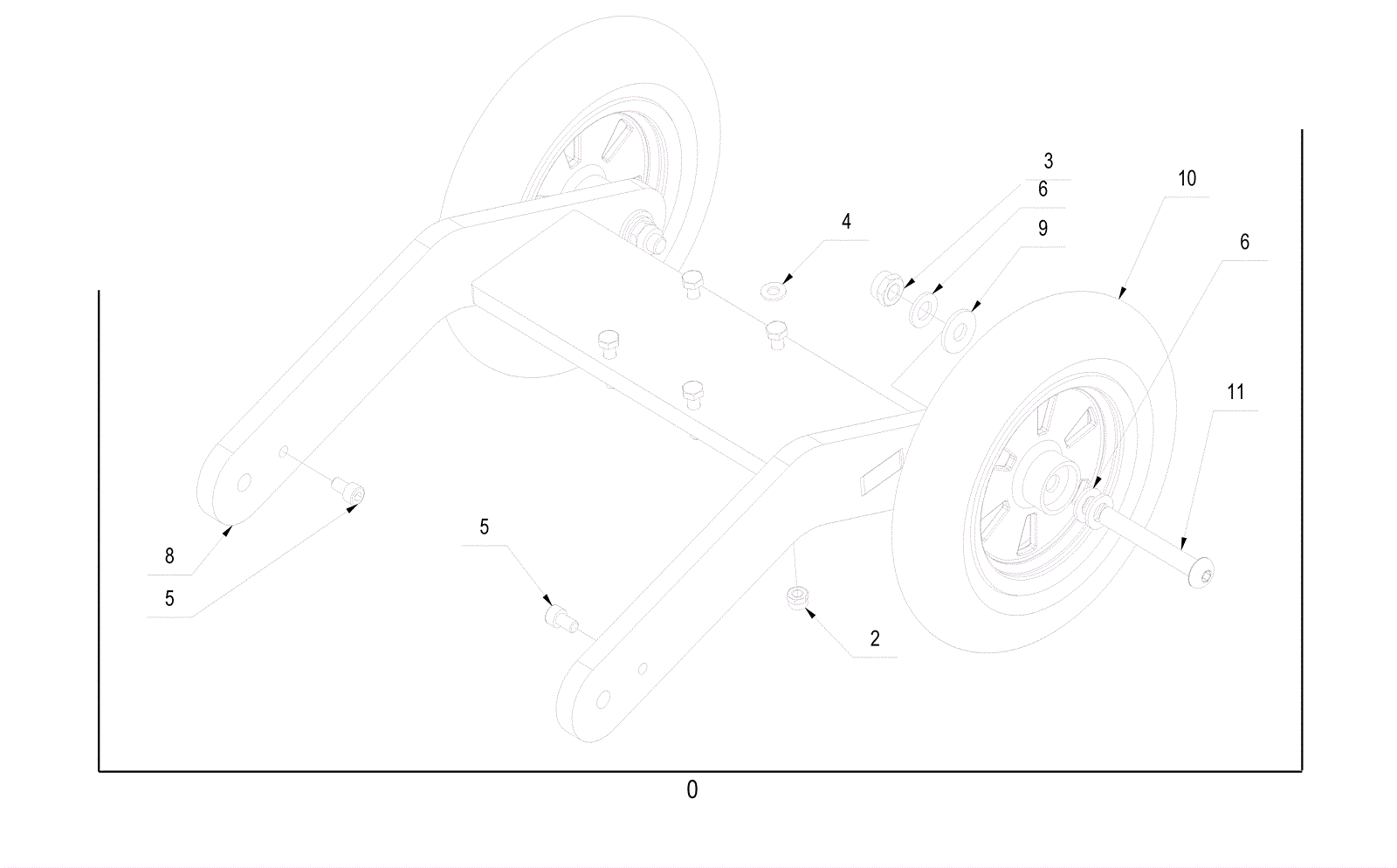

TRIDENT FMD20 ORBITAL Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
2 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $4.58 4 usually ships 6-27 days
3 283-1741 NUT M12 UNI7474-DIN985 8 ZN AUT LOW $4.80 2 usually ships 6-27 days
4 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $4.58 4 usually ships 6-27 days
5 283-2068 SCREW M8X14 GALVANIZED $5.50 2 usually ships 6-27 days
6 283-2223 WASHER Ø13x24 ZNT $2.84 6 usually ships 6-27 days
9 283-2969 WASHER d=10.5 D=30 s=3 NYLON BLACK $6.52 4 usually ships 6-27 days
10 283-3021 GREY WHEEL D=250 d=12 S=50 $100.18 2 usually ships 6-27 days
11 283-3023 SCREW M12X90 GALVANIZED $8.97 2 usually ships 6-27 days
12 283-1619 SCREW M8X35 UNI 5739 DIN 933 (10.9) G $4.58 4 usually ships 6-27 days
