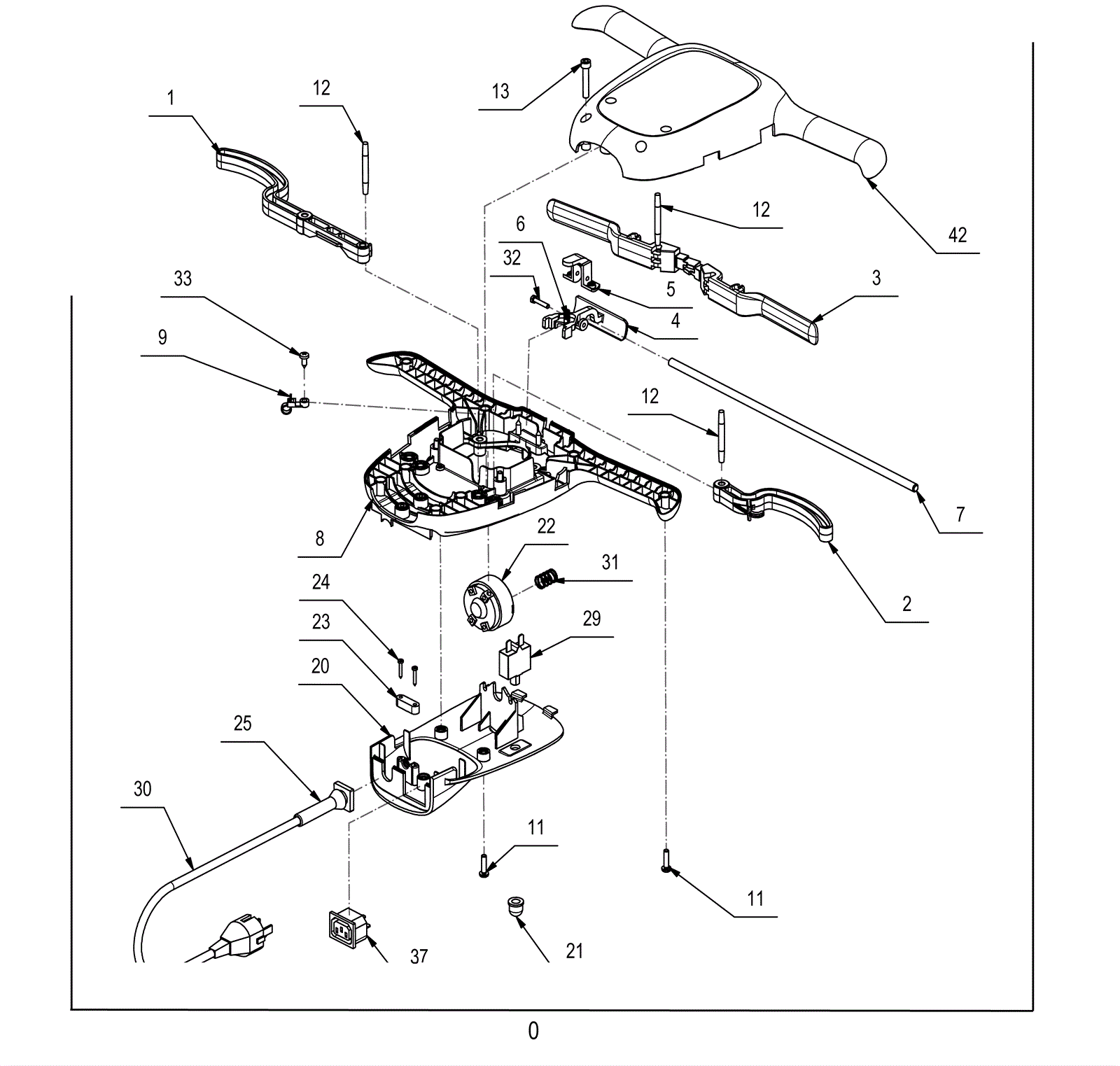

TRIDENT FMD20 ORBITAL Upper Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-2145 LEVER $5.50 1 usually ships 6-27 days
2 283-2149 LEVER $18.28 1 usually ships 6-27 days
3 283-2734 SWITCH HANDLE RAL 9005 $8.23 2 usually ships 6-27 days
4 283-1473 LEVER $55.50 1 usually ships 6-27 days
5 283-2148 STIRRUP $19.47 1 usually ships 6-27 days
6 283-2164 RUBBER BAND $20.54 1 usually ships 6-27 days
7 283-2735 REINFORCING GALVANIZED BAR $24.35 1 usually ships 6-27 days
8 283-2732 HANDLEBAR RAL 7016 PANT.432C $21.99 1 usually ships 6-27 days
9 283-2190 WRAPPER $3.81 1 usually ships 6-27 days
11 283-1584 SCREW 5X20 UNI7687 GALV $4.58 9 usually ships 6-27 days
12 283-2721 Spring Pin $6.45 4 usually ships 6-27 days
13 283-1649 SCREW $5.98 4 usually ships 6-27 days
20 283-2733 FLAP RAL 7016 PANT.432C $38.39 1 usually ships 6-27 days
21 283-2186 CAP FOR CIRCUIT BREAKER $10.95 1 usually ships 6-27 days
22 283-2182 STARTING SWITCH $171.93 1 usually ships 6-27 days
23 283-1841 CABLE GRIP $40.01 1 usually ships 6-27 days
24 283-2246 SELF-TAPPING SCREW 2,9x19 TC T.C. ZNT $2.84 2 usually ships 6-27 days
25 283-2219 FLEX GRIP $9.37 1 usually ships 6-27 days
29 283-2181 CIRCUIT BREAKER $33.52 1 usually ships 6-27 days
30 283-2875 CABLE AWG 3x14X500 115V US PLUG $27.20 1 usually ships 6-27 days
31 283-2882 SPRING 13X20X1 $23.75 1 usually ships 6-27 days
32 283-1601 SCREW M4X20 TE UNI5739 DIN933 (8.8) Z $4.58 1 usually ships 6-27 days
33 283-2179 SCREW $3.19 1 usually ships 6-27 days
37 283-2845 LITTLE SOCKET x PICCOLO $16.24 1 usually ships 6-27 days
42 283-2731 HANDLEBAR COVER RAL 7016 PANT. 432C $22.15 1 usually ships 6-27 days
