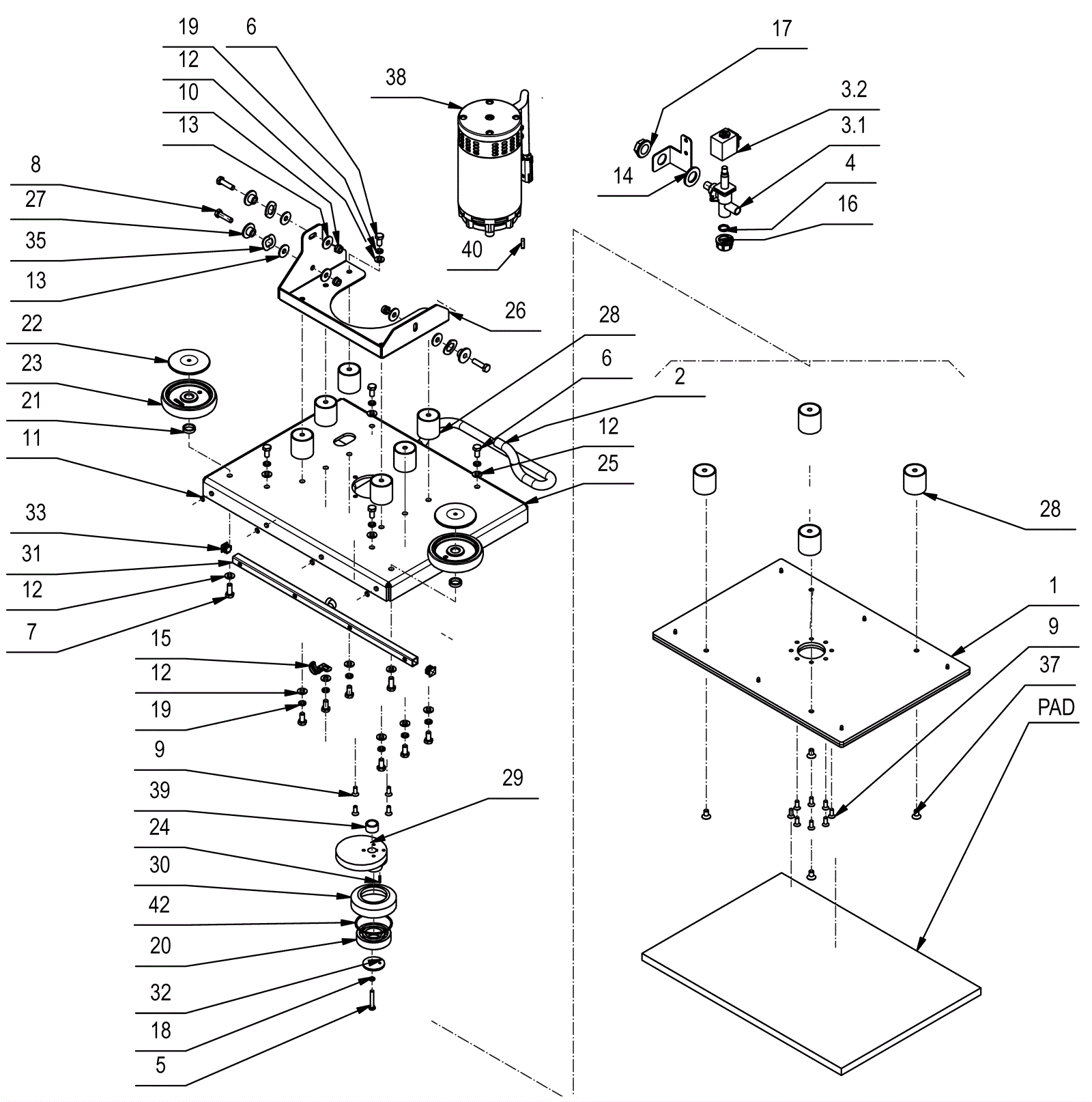

TRIDENT T20SC PRO ORB Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-1330 PLATE BAS.ECCENTR + ANCHOR PLATE $1,814.45 1 usually ships 6-27 days
2 283-1337 SHEAT FX15N L=600 $42.72 1 usually ships 6-27 days
3 283-1525 COMPLETE SOLENOID VALVE 24V 1/2 inch ACL $245.97 1 usually ships 6-27 days
4 283-1590 2.68 $7.89 1 usually ships 6-27 days
5 283-1606 SCREW 6X35 TE UNI 5739 ST.STEEL $4.58 1 usually ships 6-27 days
6 283-1613 SCREW M8X16 UNI 5739 DIN 933 (8.8) GA $4.58 16 usually ships 6-27 days
7 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA $15.55 2 usually ships 6-27 days
8 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA $4.58 3 usually ships 6-27 days
9 283-1701 SCREW M6X16 UNI5933 FLATH HEX.SOCKET $4.58 12 usually ships 6-27 days
10 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA $4.58 3 usually ships 6-27 days
11 283-1754 WASHER M4 UNI 6592 ST. STEEL $4.58 4 usually ships 6-27 days
12 283-1774 8X17X1,6 WASHER UNI 6592 GALV. $4.58 18 usually ships 6-27 days
13 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. $4.58 6 usually ships 6-27 days
14 283-1795 WASHER 21X37X3 UNI 6592 GALV. $4.58 1 usually ships 6-27 days
15 283-1879 CLIP $4.58 1 usually ships 6-27 days
16 283-1900 FEMALE CAP 1/2 inch $5.97 1 usually ships 6-27 days
17 283-1902 BLACK PLASTIC NUT 1/2' $6.41 1 usually ships 6-27 days
18 283-2106 washer M6 UNI 1751 INOX GROWER $3.82 1 usually ships 6-27 days
19 283-2107 LOCK WASHER M8 UNI 1751 ZINC. $2.84 16 usually ships 6-27 days
20 283-2289 BEARING $107.93 1 usually ships 6-27 days
21 283-2469 SPACER D=22 d=17,3 S=6 Fe360 $20.01 2 usually ships 6-27 days
22 283-2495 BASE WHEEL BUSHING R22 $36.16 2 usually ships 6-27 days
23 283-2496 BASE BUMPER WHEEL R22 $63.67 2 usually ships 6-27 days
24 283-2682 SPRING PLUG 3X14 UNI 28740 $6.67 1 usually ships 6-27 days
27 283-2990 BUSHING D=28-14,9 d=8,5 S=12 OT58 $32.00 3 usually ships 6-27 days
28 283-2991 ANTIVIBRATION D=40x40 - 45Sh $32.21 10 usually ships 6-27 days
29 283-2992 FLANGE $110.17 1 usually ships 6-27 days
30 283-2993 FLANGE $101.67 1 usually ships 6-27 days
31 283-2994 WATER DISTRIBUTION HOSE $204.89 1 usually ships 6-27 days
32 283-2995 WASHER $8.47 1 usually ships 6-27 days
33 283-2996 CAP FOR HOSE 15 X 15 $5.98 2 usually ships 6-27 days
34 283-2997 RED PAD 508X355 $48.02 1 usually ships 6-27 days
35 283-2998 WASHER UNI 8840 - B - 14 $5.98 3 usually ships 6-27 days
36 283-1604 SCREW M4X20 INOX UNI 5739 $9.37 4 usually ships 6-27 days
37 283-3124 INOX SCREW M8x14 TPSEI UNI5933 INOX $6.67 4 usually ships 6-27 days
38 283-1426 24V 680W 2000G MOTOR WITH MOLEX CONN. $877.61 1 usually ships 6-27 days
39 283-3288 SPACER D=22 d=17 S=13 S235 $17.36 1 usually ships 6-27 days
40 283-1565 KEY 5X5X20 UNI 6604/A $4.58 1 usually ships 6-27 days
41 283-3281 EV BRACKET MAXIMA 2017 BTO $25.36 1 usually ships 6-27 days
42 283-2367 GASKET OR D.61.60 X 2.62 $11.33 1 usually ships 6-27 days
43 283-1523 SOLENOID VALVE BODY 1/2- V.24/36 $215.67 1 usually ships 6-27 days
44 283-1524 COIL SOLENOID VALVE 24V - 1/2 $68.63 1 usually ships 6-27 days
N/S 283-3798 Bearing kit $534.48 1 usually ships 1-5 days
