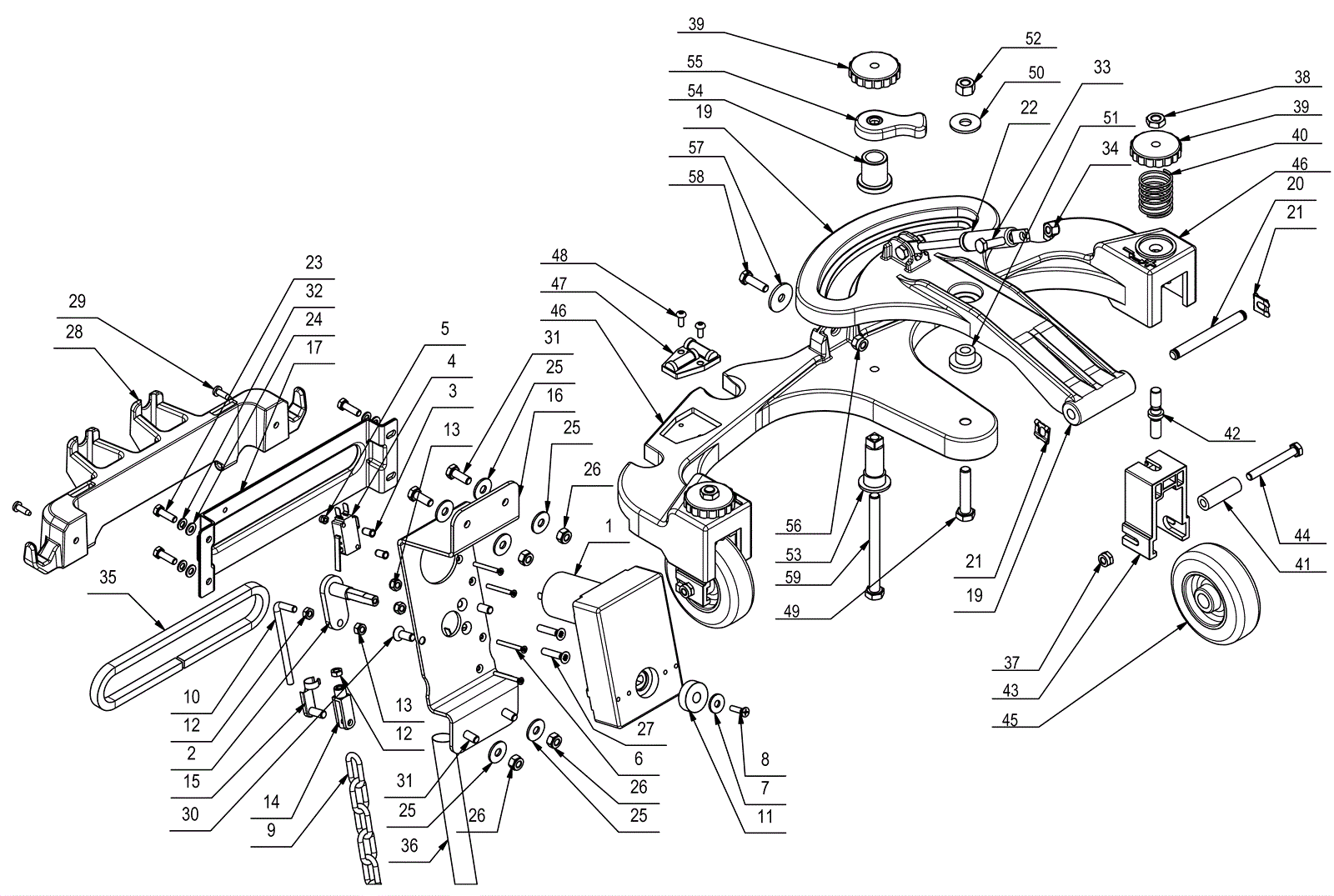

TRIDENT T26SC PLUS Squeegee Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 283-2419 GEARMOTOR. 24V DC 4W 14RPM K9179SA $842.41 1 usually ships 26-37 days
3 283-1919 INSERT $2.99 4 usually ships 26-37 days
4 283-1821 MICROSWITCH 3X22 $33.04 2 usually ships 26-37 days
5 283-1727 LOCK NUT M3 UNI 7474 DIN 985 GALV. $4.58 4 usually ships 26-37 days
7 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. $4.58 1 ships same day
8 283-1585 SCREW $4.58 1 usually ships 26-37 days
12 283-1711 NUT M5 UNI 5589 GALV. LOW $4.58 2 usually ships 26-37 days
13 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI $3.82 3 ships same day
14 283-1906 FORK M5 LONG $14.85 1 usually ships 26-37 days
15 283-1909 CLIP FOR FORK M5 LONG $6.68 1 usually ships 26-37 days
18 283-1365 SQUEEGEE SUPPORT KIT MAXIMA 2017 $684.08 1 usually ships 26-37 days
20 283-2980 PIN - SQUEEGEE COUPLING ANTEA B-BT $20.01 1 usually ships 26-37 days
21 283-2320 SPRING SL - FORKED PIN D.8 $2.84 2 usually ships 26-37 days
22 283-2515 GAS PRING 16-1 L=146 STROKE=40 F=150 $139.29 1 ships same day
23 283-1508 SCREW M5X16 UNI 5739 DIN 933 (8.8) GA $4.58 4 usually ships 26-37 days
24 283-2226 WASHER D.5,5x15 ZNT $4.58 4 usually ships 26-37 days
25 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. $4.58 8 usually ships 26-37 days
26 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. $4.58 4 usually ships 26-37 days
29 283-2248 SELF-TAPPING SCREW 4,2x13 TC T.C. $2.99 2 usually ships 26-37 days
30 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $4.58 2 usually ships 26-37 days
31 283-1515 SCREW M6X16 UNI 5739 DIN 933 GALV. $4.58 4 usually ships 26-37 days
32 283-1764 LOCK WASHER M5 UNI1751 ST.STEEL GROWE $4.66 4 usually ships 26-37 days
33 283-1519 SCREW 6X20 UNI 5739 A2 $2.84 2 usually ships 26-37 days
34 283-1733 LOCK NUT M6X8 UNI 7473/4-DIN 982/5 S. $4.58 2 usually ships 26-37 days
35 283-3233 GASKET EPDM 8 x 7 L=396 (POR304/B/OPC) $13.33 1 usually ships 26-37 days
37 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL $4.58 2 usually ships 26-37 days
38 283-1719 NUT M8 UNI 5589 ST.STEEL LOW $4.58 2 usually ships 26-37 days
39 283-3282 LOCKING WHEEL M8 D=40 S=9 YELLOW $13.33 3 usually ships 26-37 days
40 283-1538 COMPR. SPRING 26x1.5x30 $6.41 2 usually ships 26-37 days
41 283-1537 SPACER D.12(6.2)X36 $13.24 2 usually ships 26-37 days
42 283-1463 ADJUSTING PIN $14.05 2 usually ships 26-37 days
43 283-1462 WHEEL SUPPORT $27.65 2 usually ships 26-37 days
44 250-1275 Screw M6 x 50mm $12.84 2 usually ships 1-5 days
45 283-2707 WHEEL D=80 H=25 GREY RUBBER 70Sh $28.64 2 usually ships 26-37 days
47 283-3049 DOUBLE BUBBLE LEVEL $5.50 1 usually ships 26-37 days
48 283-2305 SCREW 4X10 ISO 7380 A2 TCBEI $2.84 2 usually ships 26-37 days
49 283-1621 SCREW M8X40 HEX HEAD UNI5739 A2 ST.ST $4.58 1 usually ships 26-37 days
50 283-1781 WASHER M8X24 UNI 6593 LARGE FL. ST.ST $4.58 1 usually ships 26-37 days
51 283-3175 BUSHING D=25-14,9 d=8,2 S=14,7 OT58 $21.90 1 usually ships 26-37 days
52 283-1721 NUT INOX M8X8 UNI 5587 $5.50 1 usually ships 26-37 days
53 283-3172 SQUEEGEE PIN ADJUSTMENT MAXIMA 2017 P.01 $72.01 1 usually ships 26-37 days
54 283-3174 ADJUSTMENT PIN MAXIMA 2017 P.02 SQUEEGEE $44.79 1 usually ships 26-37 days
55 283-3129 SQUEEGEE CONTROL HANDLE $10.29 1 usually ships 26-37 days
56 283-2276 M6 AUTOLOCK. NUT UNI 7473 ZINC. $2.99 1 usually ships 26-37 days
57 283-1772 WASHER M6 D.24 UNI 6593 ST.STEEL $4.58 1 usually ships 26-37 days
58 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 26-37 days
59 283-3279 SCREW M8X90 TE UNI 5739 A2 $54.02 1 usually ships 26-37 days
