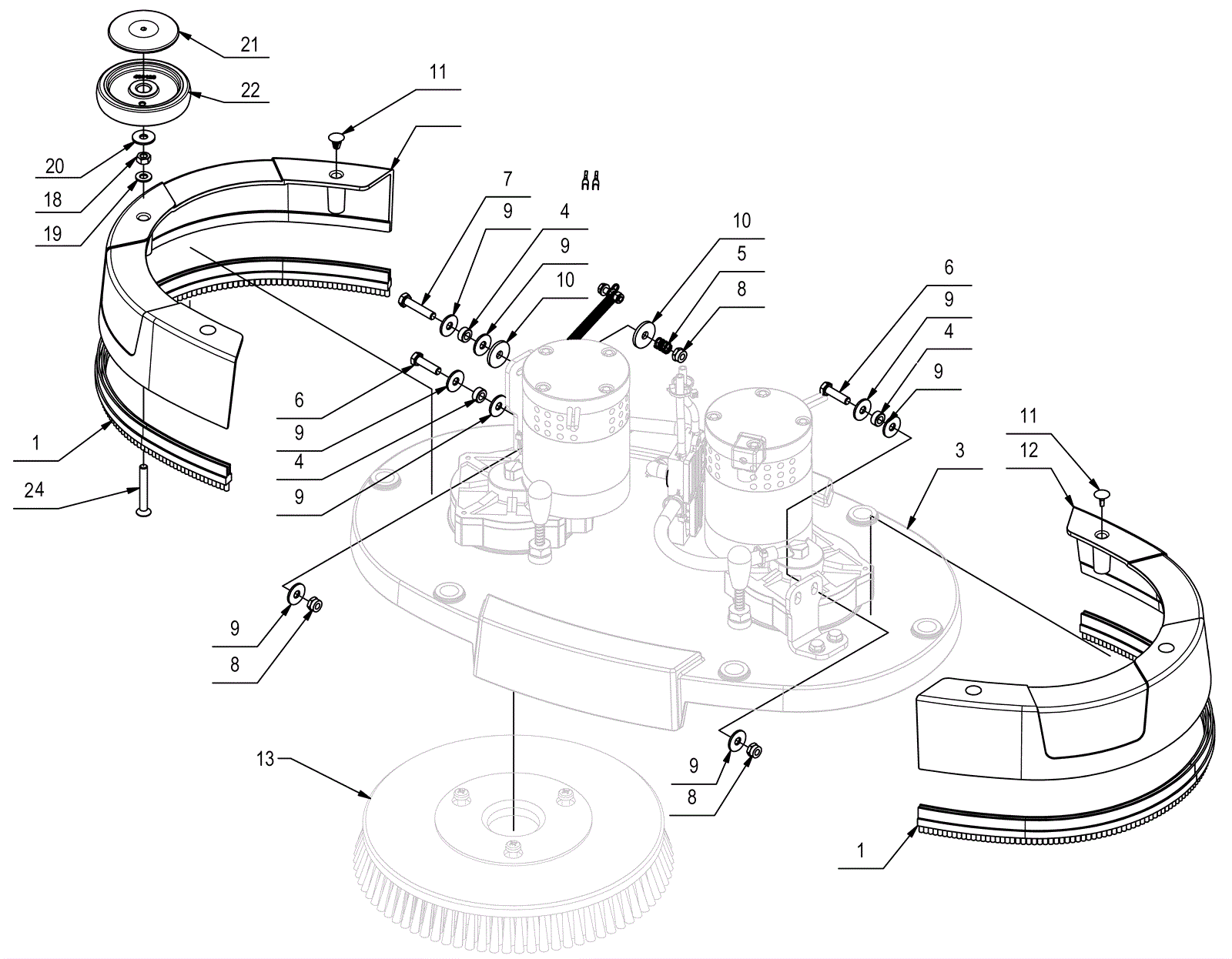

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
283-3317
|
Splash guard |
$103.16
|
2 |
|
usually ships 6-27 days |
2 |
283-3318
|
Left skirt assembly |
$305.08
|
1 |
|
usually ships 6-27 days |
3 |
283-3319
|
Deck assembly |
$3,641.15
|
1 |
|
usually ships 6-27 days |
4 |
283-1533
|
BUSHING D.14.9(8.25)X7 OT58 |
$3.40
|
3 |
|
usually ships 6-27 days |
5 |
283-1539
|
SPRING 12X1.5X15 - BRUSH CONTROL |
$3.86
|
1 |
|
usually ships 6-27 days |
6 |
283-1617
|
SCREW M8X30 UNI 5739 DIN 933 (8.8) GA |
$2.58
|
2 |
|
usually ships 6-27 days |
7 |
283-1620
|
SCREW M8X40 UNI 5739 (8.8) GALV. |
$2.58
|
1 |
|
usually ships 6-27 days |
8 |
283-1735
|
M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA |
$2.58
|
3 |
|
usually ships 6-27 days |
9 |
283-1777
|
WASHER 9X24X2.5 UNI 6593 GALV. |
$3.03
|
8 |
|
usually ships 6-27 days |
10 |
283-1780
|
NYLON WASHER 8X30X3 |
$2.58
|
2 |
|
usually ships 6-27 days |
11 |
283-3320
|
Plug |
$13.64
|
5 |
|
usually ships 6-27 days |
12 |
283-3321
|
Splash guard |
$252.07
|
1 |
|
usually ships 6-27 days |
13 |
283-2312
|
Brush PPL 0.3 |
$183.27
|
2 |
|
usually ships 6-27 days |
14 |
283-2323
|
BRUSH D=340 PPL 0.6 |
$255.24
|
2 |
|
usually ships 6-27 days |
15 |
283-2324
|
Brush PPL 0.9 |
$250.18
|
2 |
|
ships same day |
16 |
283-2327
|
TINEX BRUSH |
$431.35
|
2 |
|
ships same day |
17 |
283-2325
|
PAD HOLDER D=330 |
$343.87
|
2 |
|
ships same day |
18 |
283-1718
|
NUT M8X6.5 UNI 5588 GALV. |
$2.58
|
1 |
|
usually ships 6-27 days |
19 |
283-1774
|
8X17X1,6 WASHER UNI 6592 GALV. |
$2.58
|
1 |
|
usually ships 6-27 days |
20 |
283-1777
|
WASHER 9X24X2.5 UNI 6593 GALV. |
$3.03
|
1 |
|
usually ships 6-27 days |
21 |
283-2495
|
BASE WHEEL BUSHING R22 |
$20.51
|
1 |
|
usually ships 6-27 days |
22 |
283-2496
|
BASE BUMPER WHEEL R22 |
$40.66
|
1 |
|
usually ships 6-27 days |
23 |
283-3321
|
Splash guard |
$252.07
|
1 |
|
usually ships 6-27 days |
