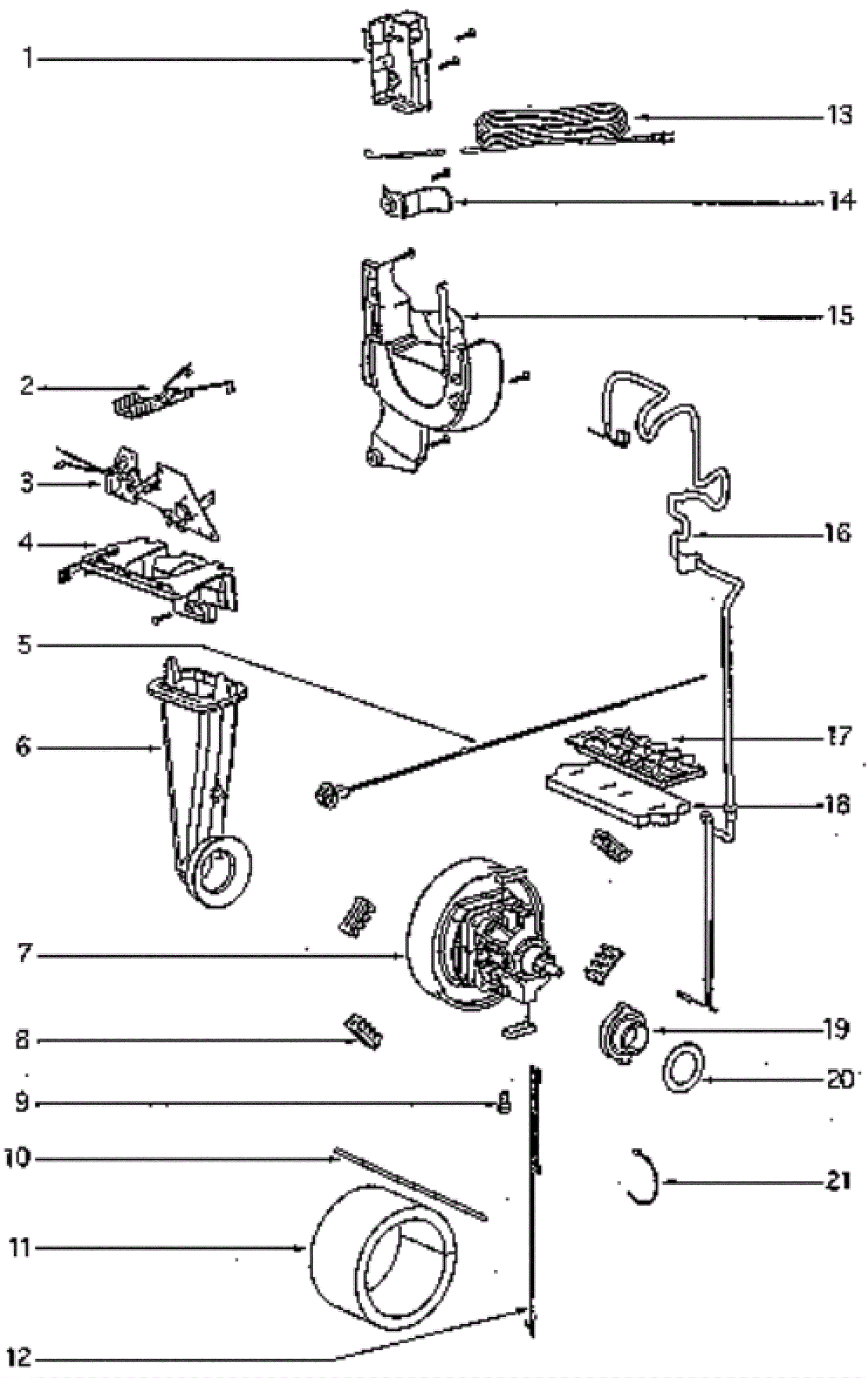

Motor Parts Assembly

#PartDescription ReqNotesAvailability
1 182-8333 Cord exit (OBSOLETE) 1
2 N/A Not available
3 182-8334 Socket and terminal 1
4 N/A Not available
5 182-8348 Socket (OBSOLETE) 1
6 182-8349 Air duct (OBSOLETE) 1
7 182-2066 Motor assembly (OBSOLETE) 1
8 182-8331 Motor cover gasket 1
9 182-8335 Wire splice 1
10 182-8358 Tube (OBSOLETE) 1
11 182-8336 Sound foam 1
12 182-0864 Thermostat 1
14 182-8338 Power retainer clip 1
15 182-8339 Poer tool pack 1
16 182-8340 Power jumper cord (OBSOLETE) 1
17 182-8341 Power motor filter 1
18 182-8093 Motor filter 1
19 N/A Not available
20 N/A Not available
21 N/A Not available
