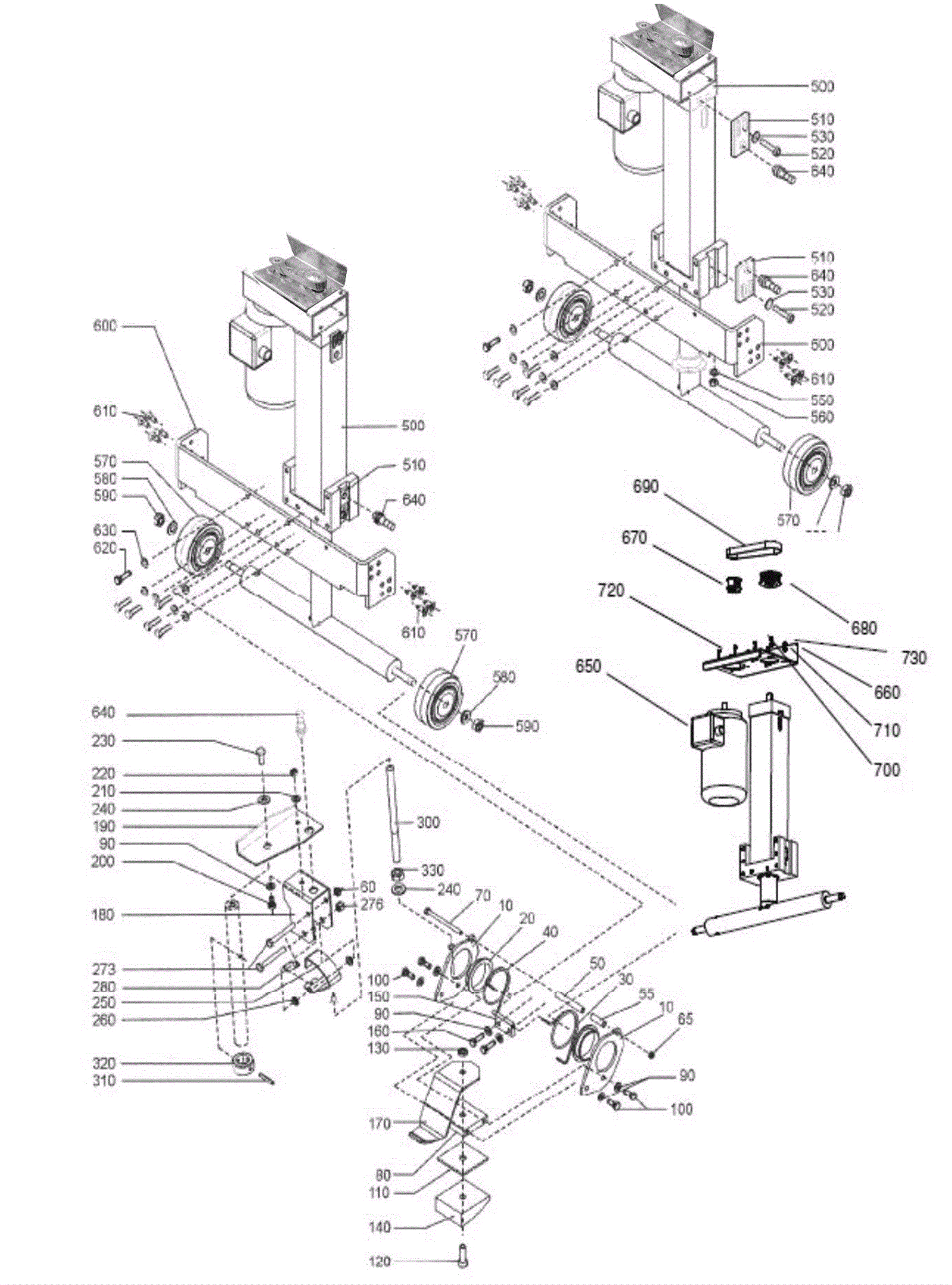

ROTOMAC ET15B Spindle Drive Assembly

#PartDescriptionPriceReqNotesAvailability
10 281-1131 Side sheild bracket (pkg of 2) $100.98 2 ships same day
20 281-1134 Plastic bush $38.81 2 usually ships 4-21 days
30 281-1138 Left hand brake spring $48.36 1 ships same day
40 281-1140 Right hand brake spring $48.36 1 ships same day
50 281-1136 Brake tube $25.50 1 ships same day
55 281-1298 Clear hose $5.23 1 usually ships 4-21 days
60 281-1015 Nut $1.09 1 ships same day
65 281-1011 Nut $1.09 1 ships same day
70 281-1146 Screw M5 x 70mm $1.36 1 usually ships 4-21 days
80 281-1135 Mounting plate $48.98 1 ships same day
90 281-1299 Washer $1.09 7 ships same day
100 281-1013 Screw M6 x 16mm $1.56 4 ships same day
110 281-1137 Rubber plate $6.25 1 ships same day
120 281-1300 Screw $1.96 1 ships same day
130 281-1005 Nut M8 $1.09 1 ships same day
140 281-1139 Brake wedge $412.04 1 ships same day
150 281-1142 Hold plate $58.81 1 ships same day
160 281-1301 Screw $1.54 2 ships same day
170 281-1132 Brake pedal $72.56 1 ships same day
180 281-1218 Sensor bracket $143.32 1 ships same day
190 281-1218 Sensor bracket $143.32 1 ships same day
200 281-1020 Screw M6 x 12mm $2.22 1 ships same day
210 281-1304 Lock washer $1.03 1 usually ships 4-21 days
220 281-1305 Nut $2.22 1 usually ships 4-21 days
230 281-1306 Screw $2.22 1 usually ships 4-21 days
240 281-1029 Washer $1.09 2 usually ships 4-21 days
250 281-1166 Sensor trigger $105.15 1 ships same day
260 281-1307 Sliding bearing $115.04 2 ships same day
273 281-1003 Screw M6 x 50mm hex $2.34 2 ships same day
276 281-1308 Nut $1.09 1 usually ships 4-21 days
280 281-1133 Extension spring $23.78 1 ships same day
300 281-1141 Sensor rod $45.74 1 ships same day
330 281-1010 Nut $1.44 1 ships same day
500a 281-2434 Spindle drive complete Call for price 2 (inlcudes 500, 510, 520) usually ships 4-21 days
500b 281-1309 Spindle drive $3,782.79 2 ships same day
510 281-1180 Sensor bracket $53.58 3 usually ships 4-21 days
520 281-1312 Screw $2.22 6 usually ships 4-21 days
530 281-1017 Washer M6 $1.09 6 ships same day
550 281-1042 E clip $1.09 4 usually ships 4-21 days
560 281-1305 Nut $2.22 4 usually ships 4-21 days
570 281-1002 Wheel $120.98 4 ships same day
580 281-1164 Flat washer $1.09 4 usually ships 4-21 days
590 281-1167 Nut M12 $1.68 4 usually ships 4-21 days
600 281-1165 Spindle drive holder $282.61 2 ships same day
610 281-1024 Screw M8-1.25 x 20mm flat head stainless steel $1.09 16 ships same day
620 281-1188 Screw M8 x 25mm $1.56 12 usually ships 4-21 days
630 281-1030 Washer M8 $2.64 12 ships same day
640 281-1126 Inductive sensor $174.43 4 ships same day
650 281-1064 Brake motor $1,322.46 1 ships same day
660 281-1181 Motor bracket $111.21 1 ships same day
670 281-1065 Belt pulley $122.58 1 ships same day
680 281-1066 Belt pulley $151.38 1 ships same day
690 281-1067 Belt $69.62 1 ships same day
710 281-1261 Washer (OBSOLETE) $1.09 4 usually ships 4-21 days
720 281-1183 Screw $1.09 4 usually ships 4-21 days
730 281-1042 E clip $1.09 4 usually ships 4-21 days
N/S 281-1399 T shape spanner (belt tightning tool) $124.07 1 ships same day
N/S 281-1145 Flanged bush $28.08 2 usually ships 4-21 days
