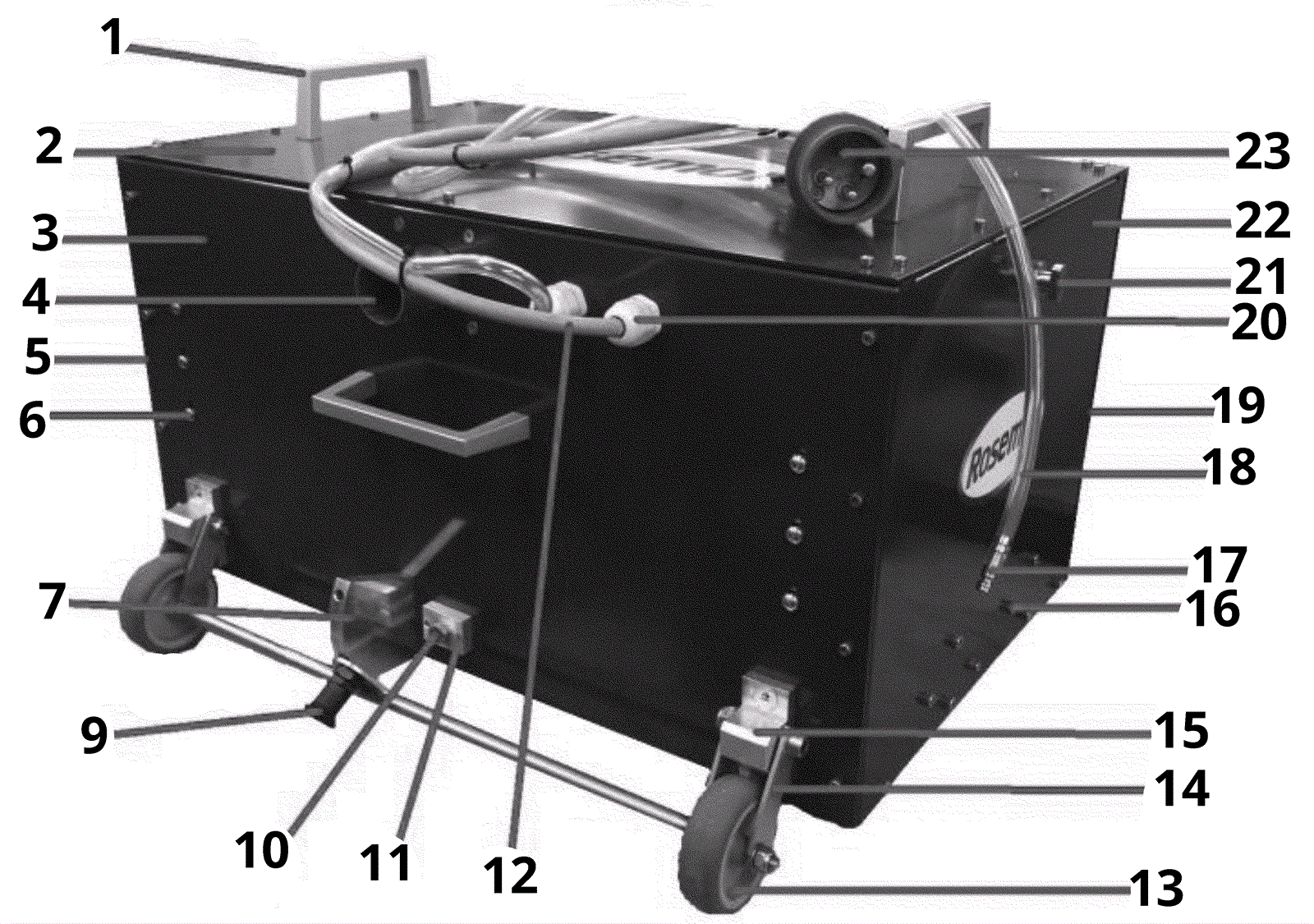

T10 Outside Front Attachment Assembly

#PartDescriptionPriceReqNotesAvailability
1 281-1387 Handle $76.18 4 usually ships 4-21 days
2 281-1375 Cover $531.19 1 usually ships 4-21 days
3 281-1379 Front panel $605.74 1 usually ships 4-21 days
4 281-1386 Dirty exit pipe $493.71 1 usually ships 4-21 days
5 281-1376 Left hand panel $531.19 1 usually ships 4-21 days
6 999-1403 Screw M8 x 16mm torx head $2.90 12 ships same day
7 281-1383 Lug $377.60 2 usually ships 4-21 days
9 281-1382 Adjuster bar and castor spindle $936.56 2 usually ships 4-21 days
11 281-1384 Glider adjuster plate $106.24 2 usually ships 4-21 days
12 281-1238 Cable $21.84 1 usually ships 4-21 days
13 281-1149 Wheel $10.73 4 usually ships 4-21 days
14 281-1380 Wheel plate $206.05 8 usually ships 4-21 days
15 281-1381 Wheel bracket $290.75 4 usually ships 4-21 days
16 281-1119 Screw $0.99 48 ships same day
17 281-1089 Quick release male connector $29.52 1 ships same day
18 281-1090 6mm PVC chemical pipe $7.06 5 ships same day
19 281-1378 Rear panel $531.19 1 usually ships 4-21 days
20 281-1241 Dome gland $8.38 5 usually ships 4-21 days
21 281-1385 Transit pin $504.57 2 usually ships 4-21 days
22 281-1377 Right hand panel $531.19 1 usually ships 4-21 days
23 281-1357 4-pin socket $101.60 1 usually ships 4-21 days
