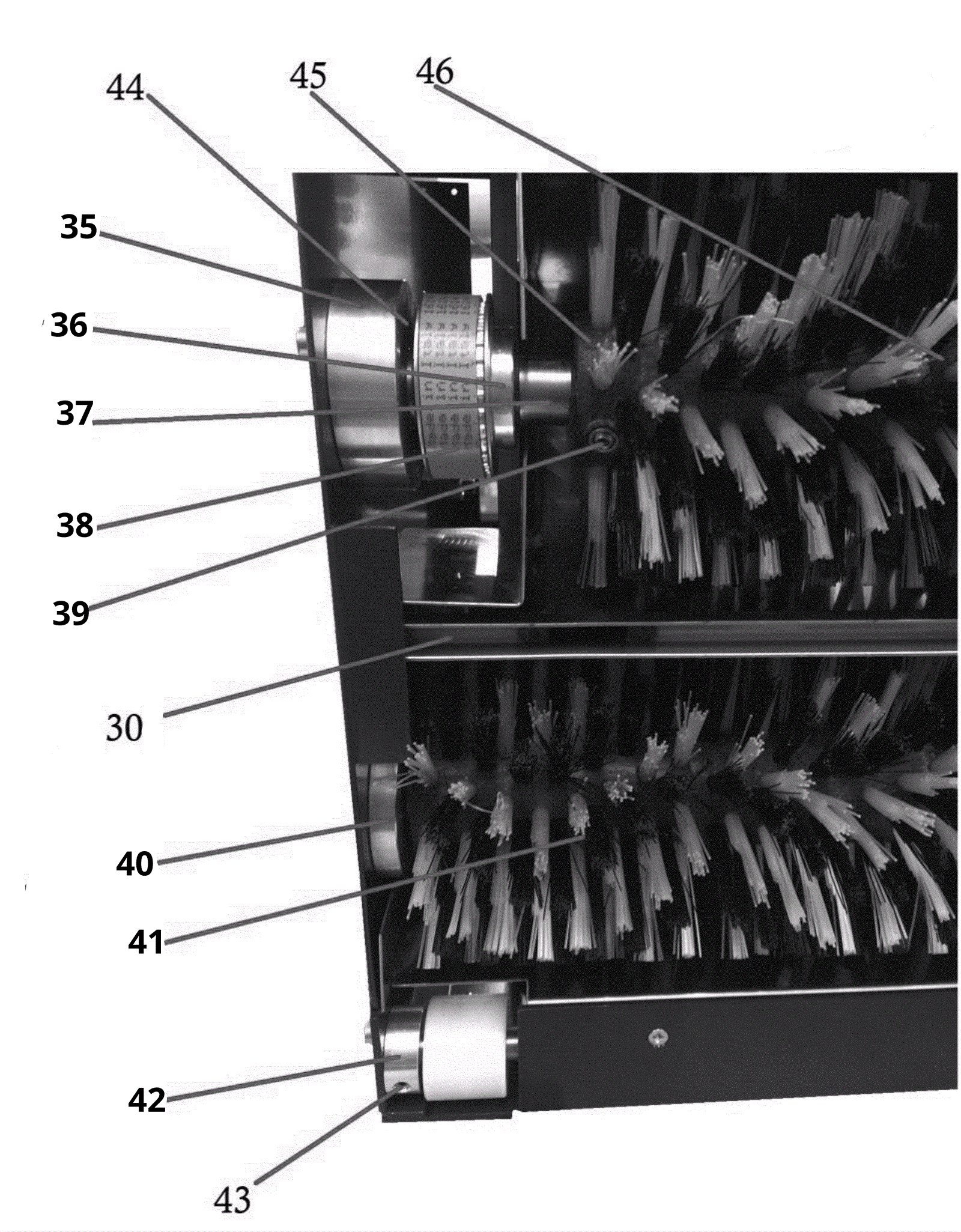

Brush Assembly

#PartDescription ReqNotesAvailability
35 281-1366 18 mm brush shaft bearing housing 2
36 281-1367 Large pulley 2
37 281-1368 Brush shaft 2
38 281-1369 Brush drive belt 2
40 281-1370 9mm brush shaft bearing housing 2
42 281-1371 Glide wheel shaft mount 4
44 281-1148 Ball bearing 6
45 281-1372 Brush (flat end) 4
46 281-1373 Brush (v end) 6
N/S 281-1399 T shape spanner (belt tightning tool) 1
