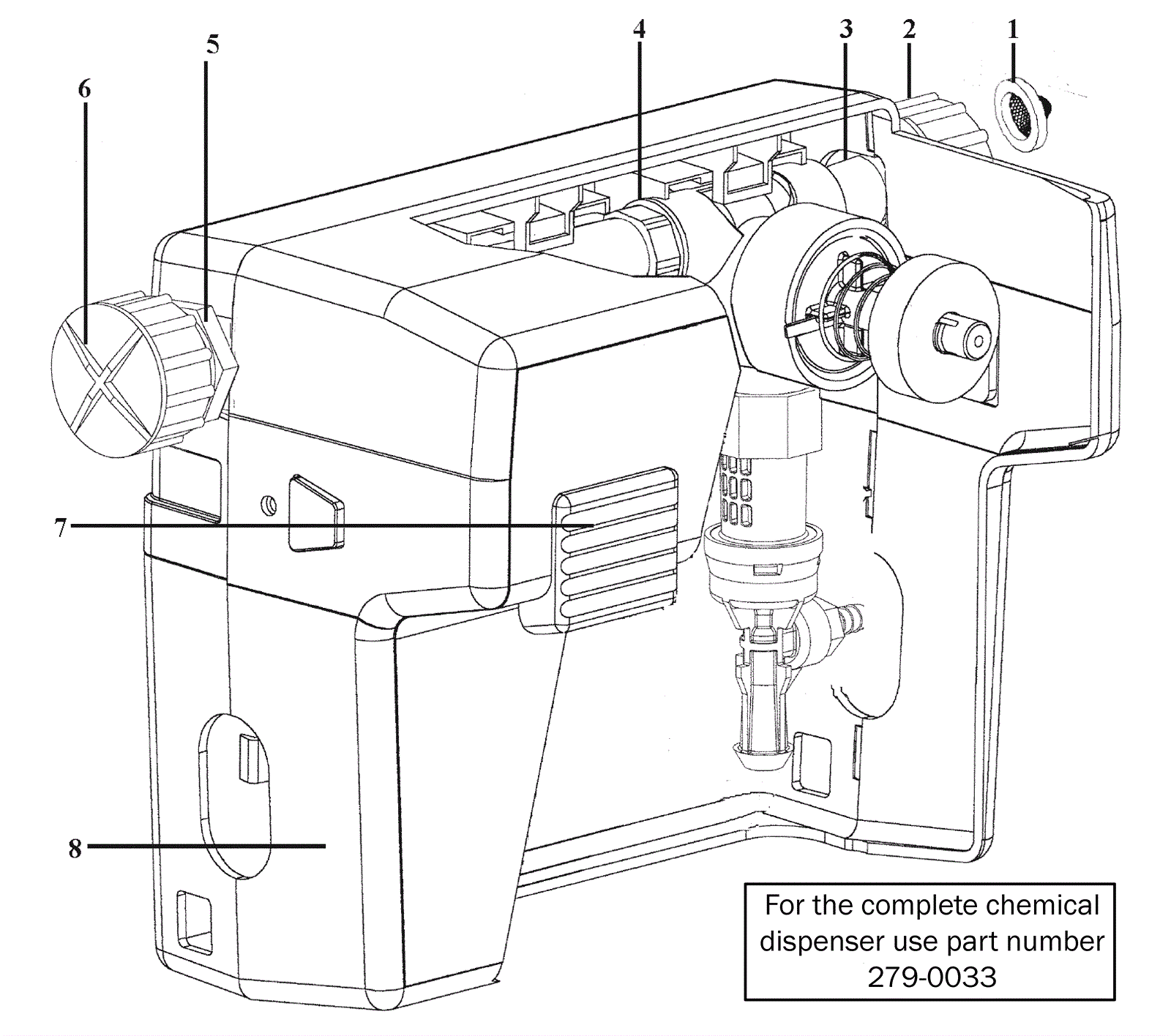

1 STATION External Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 279-0072 Strainer washer $1.19 1 usually ships 15-40 days
2 279-0056 Swivel collar $3.38 1 usually ships 15-40 days
3 279-0055 Swivel stem $5.24 1 usually ships 15-40 days
4a 279-0083 Hex nipple $3.58 1 (3 button unit) usually ships 15-40 days
4b 279-0084 Nipple $5.02 1 (2 button unit) usually ships 1-5 days
4c 279-0085 O-ring $1.47 1 (2 required per nipple) usually ships 1-5 days
5 279-0086 Connector fitting $2.27 1 usually ships 1-5 days
6 279-0087 Connector fitting cap $1.85 1 usually ships 1-5 days
7a 279-0088 Button (dark gray) $1.44 1 (standard) usually ships 1-5 days
7b 279-0089 Button (sky blue) $2.62 1 usually ships 15-40 days
7c 279-0090 Button (red) $1.53 1 usually ships 1-5 days
7d 279-0091 Button (green) $1.44 1 usually ships 1-5 days
7e 279-0092 Button (light gray) $1.44 1 ships same day
7f 279-0093 Button (yellow) $1.52 1 usually ships 1-5 days
8a 279-0094 Cabinet set $34.36 1 (1 button unit) usually ships 1-5 days
8b 279-0095 Cabinet set $43.70 1 (2 button unit) usually ships 1-5 days
N/S 279-0078 Security screws $1.19 2 usually ships 1-5 days
N/S 279-0109 Brass wasting tee $150.34 1 usually ships 1-5 days
N/S 279-0099 3.5 GPM discharge tube with flooding ring $15.95 1 (hose to fill machine) usually ships 15-40 days
N/S 279-0109 Brass wasting tee $150.34 1 (connects to faucet) usually ships 1-5 days
N/S 279-0027 Y hose barb $6.23 1 usually ships 15-40 days
N/S 279-0033 1 station, high flow only, chemical dispenser $228.06 1 ships same day
N/S 279-0001 Rack for dispensers (1 gallon) $115.08 1 usually ships 15-40 days
