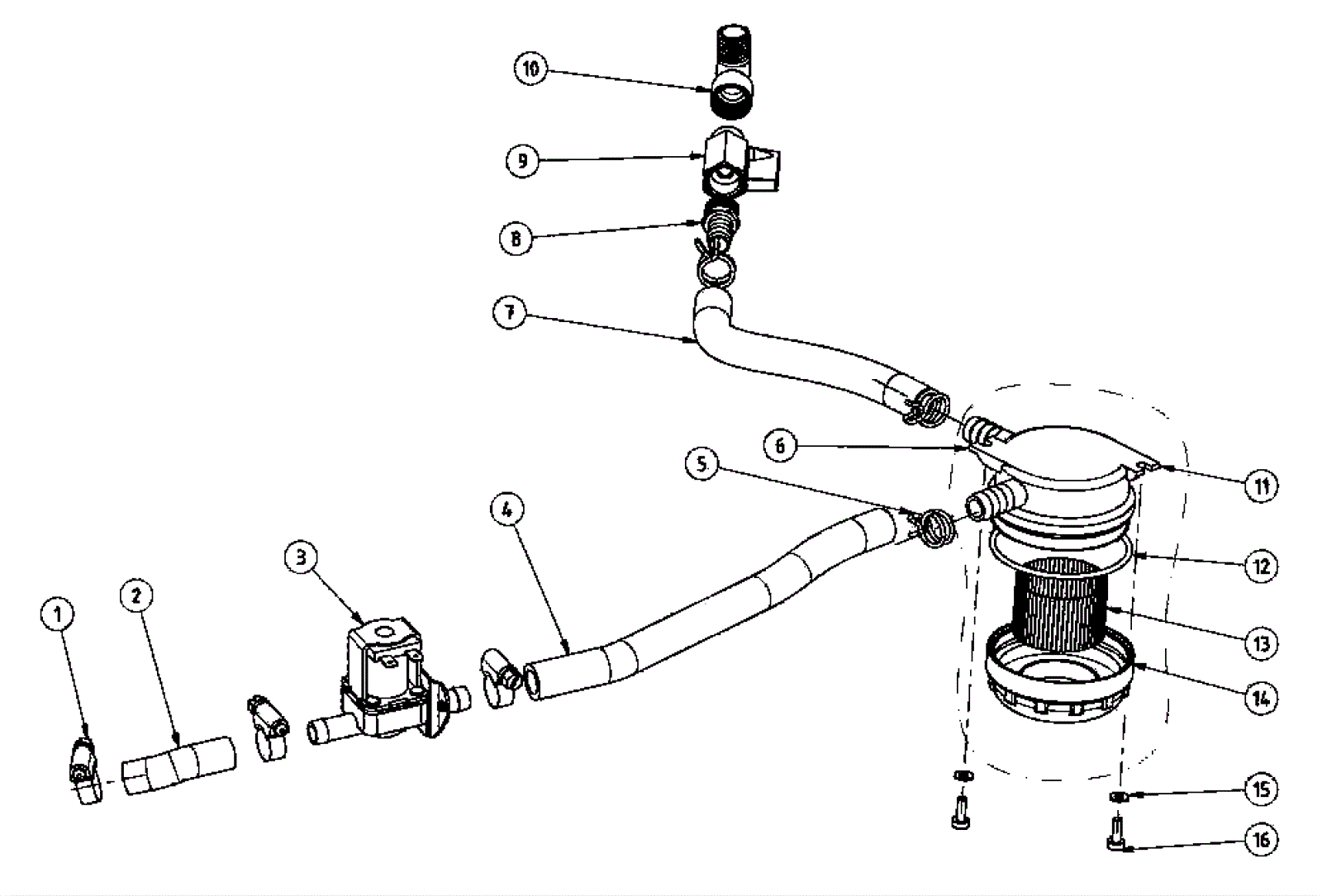

i18B Solution System Assembly

#PartDescriptionPriceReqNotesAvailability
1 278-0244 Clamp $3.65 2 usually ships 9-14 days
2 278-0971 Hose $3.65 1 usually ships 9-14 days
3a 278-0972 24V solenoid valve $18.41 1 usually ships 9-14 days
3b 278-0973 120V solenoid valve $19.16 1 usually ships 9-14 days
4 278-0974 Hose $3.65 1 usually ships 9-14 days
5 278-0303 Clamp $3.65 4 usually ships 9-14 days
6 278-0307 Filter assembly $32.01 1 ships same day
7 278-0975 Hose $3.65 1 usually ships 9-14 days
8 278-0242 Straight joint $7.30 1 usually ships 9-14 days
9 278-0829 Micro ball valve $18.41 1 ships same day
10 278-0830 Elbow $7.30 1 usually ships 9-14 days
11 278-0308 Filter assembly base $7.30 1 usually ships 9-14 days
12 278-0311 O-ring $3.65 1 usually ships 9-14 days
13 278-0310 40 mesh filter screen assembly $7.30 1 usually ships 9-14 days
14 278-0312 Filter assembly cap $12.65 1 ships same day
15 999-9089 Washer M4 flat stainless steel $0.99 2 ships same day
16 999-1645 Screw M4-.7 x 12mm hex head stainless steel $1.29 2 ships same day
