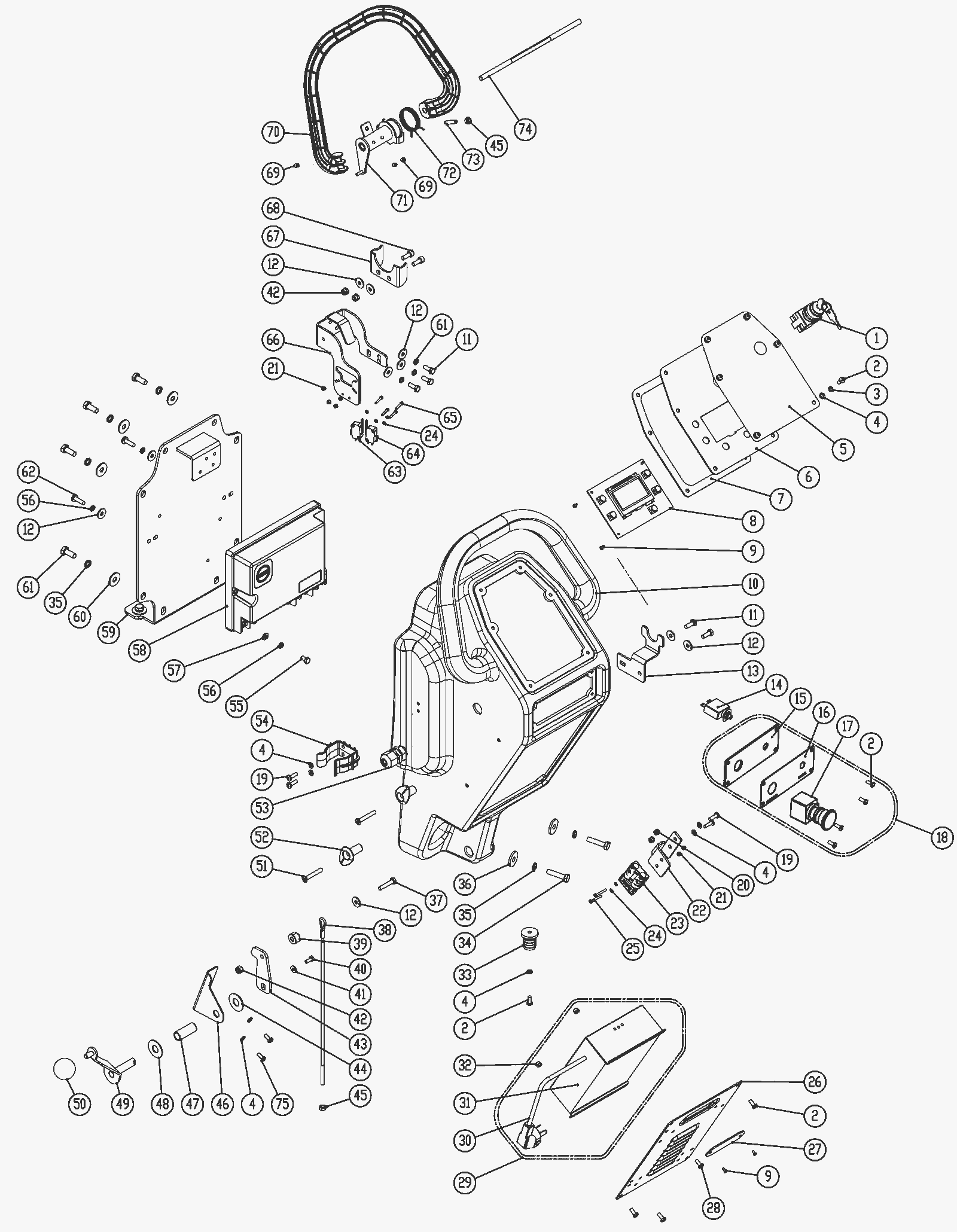

Control Console Assembly

#PartDescription ReqNotesAvailability
1a 278-0756 Key switch 1 (includes 1b)
1b 278-0318 Key (pkg of 2) 1
2 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 17
3 999-9132 Washer M5 split lock stainless steel 6
4 999-9100 Washer M5 flat stainless steel 13
5 278-2187 Control panel decal (Ultron 20TD) 1
6 278-2188 Control panel plate 1
7 278-0096 Gasket 1
8a 278-2189 Control panel PCB 1 (agm)
8b 278-0145 Control panel PCB 1 (wet flooded)
9 999-6715 Screw M3-.5 x 6mm pan head stainless steel 7
10 278-2053 Control housing 1
11 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
12 999-1803 Washer M6 flat fender stainless steel 10
13 278-0100 Squeegee storage bracket 1
14 278-0101 5amp circuit breaker 1
15 278-1359 Emergency stop switch base 1
16 278-1360 Emergency stop switch decal 1
17 278-0402 Emergency stop switch 1
18 278-0152 Emergency stop switch kit 1
19 278-0104 Screw M5 x 15mm 4
20 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
21 999-1161 Nut M3-.5 hex nylock stainless steel 6
22 278-0088 Connector bracket 1
23 278-0071 Connector 1
24 278-0089 Washer M3 tooth 6
25 278-0090 Screw M3 x 25mm 2
26 278-0105 Battery plate 1
27 278-0106 Clear cover 1
28 999-1645 Screw M4-.7 x 12mm hex head stainless steel 4
29 278-0319 Onboard charger kit 1
30 278-0107 Battery charger power cord kit (new style charger 813201-US) 1
31 278-0319 Onboard charger kit 1
32 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
33 278-0109 Connector 1
34 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
35 999-0674 Washer M8 split lock plain finish 12
36 999-6695 Washer M8 fender stainless steel 2
37 278-0111 Bolt M6 x 30mm 1
38 278-0112 Squeegee lift cable 1
39 278-0113 Lifting rope spacer 1
40 999-1908 Screw M6-1 x 10mm hex head stainless steel 1
41 999-0876 Washer M6 split lock plain finish 1
42 999-0497 Nut M6-1 nylon insert lock stainless steel 3
43 278-0116 Baffle 1
44 278-0054 Washer 1
45 999-1308 Nut M6-1 hex stainless steel 2
46 278-0117 Bracket 1
47 278-0118 Sleeve 1
48 278-0119 Washer 1
49 278-0120 Squeegee lifting handle 1
50 278-0050 Ball knob 1
51 278-0121 Screw 2
52 278-0122 Power cord hook 2
53 278-0123 Strain relief 1
54 278-0124 Drain hose clamp 1
55 278-0125 Bolt 8
56 999-1117 Washer M6 split lock stainless steel 13
57 278-0127 Washer 8
58 278-0153 Main controller 1
59 278-0129 Control console rear plate 1
60 999-6695 Washer M8 fender stainless steel 10
61 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 10
62 278-0131 Screw 2
63 278-0134 Micro switch 1
64 278-0154 Micro switch (3 terminal) 1
65 278-0135 Screw M3 x 20mm 4
66 278-0136 Switch bracket 1
67 278-0137 Spring bracket 1
68 278-0138 Screw M6 x 16mm 2
69 278-0007 Set screw 4
70 278-2055 Bail lever (black) 1
71 278-0139 Actuator 1
72 278-0140 Spring 1
73 278-0141 Screw M6 x 30mm 1
74 278-0142 Shaft 1
75 278-0114 Bolt M5 x 12mm 2
